5 Expansion

The expansion terminals have different function depending on which expansion module is installed.

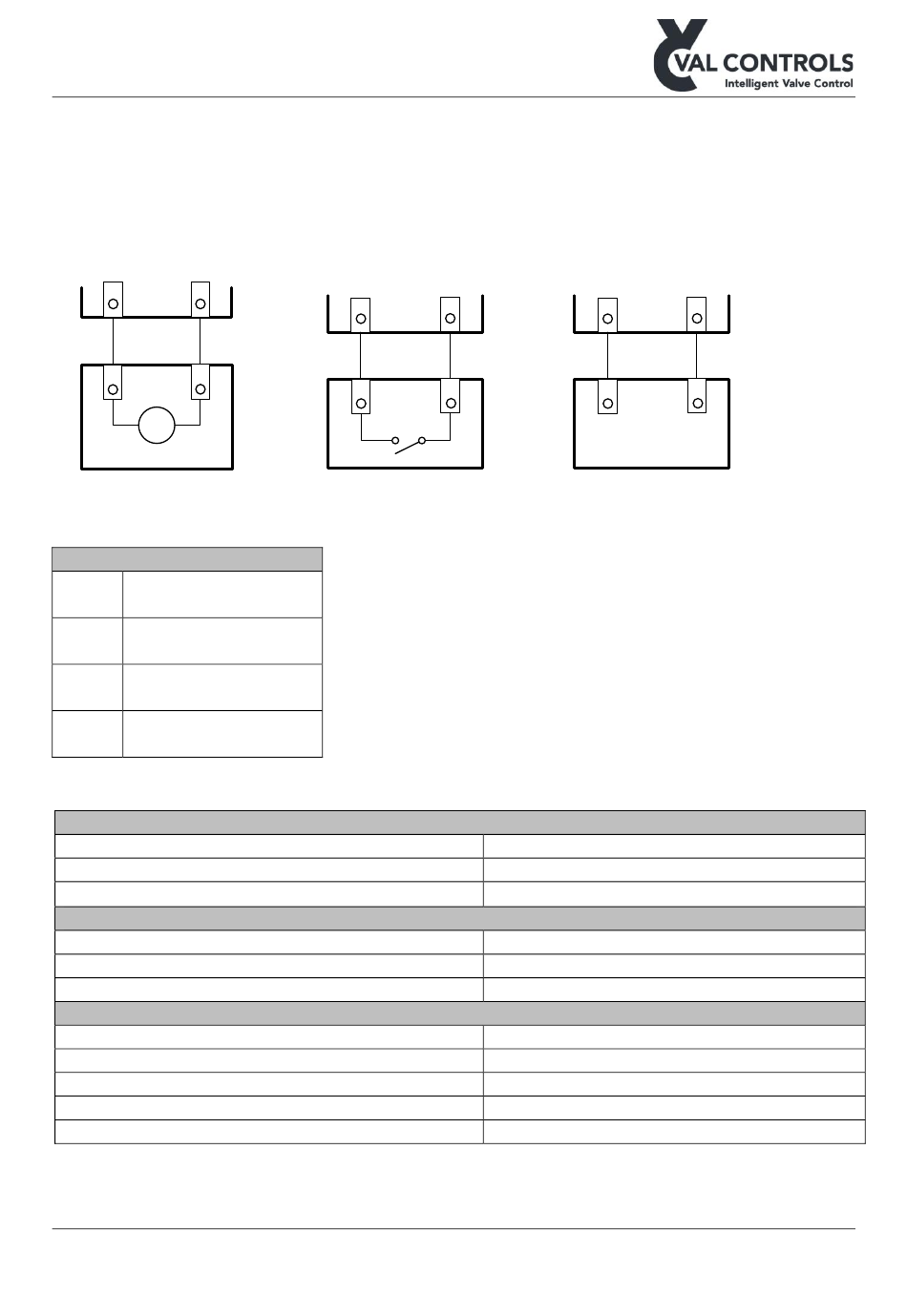

5.1 Active analogue output – AO1, AO2 and Digital inputs – DI5, DI6
Use the two analogue outputs to connect 4-20mA loop inputs e.g. proportional valves.
Active AO
+ -
+ -
A
Passive 4-20mA input
5.1.1 Terminals
AO1 21 (+)
22 (-)
AO2 23 (+)
24 (-)
DI5 51 (+)
52 (-)
DI6 25 (-)
26 (+)
5.1.2 Electrical specifications
AO1 – AO2 – Active analogue output
Max load
Linearity
Temperature coefficient
DI – Switch
Type
Cable length
Maximum cable resistance
DI – NAMUR
Type
Sensor supply voltage
Cable length
Max load
Rin
