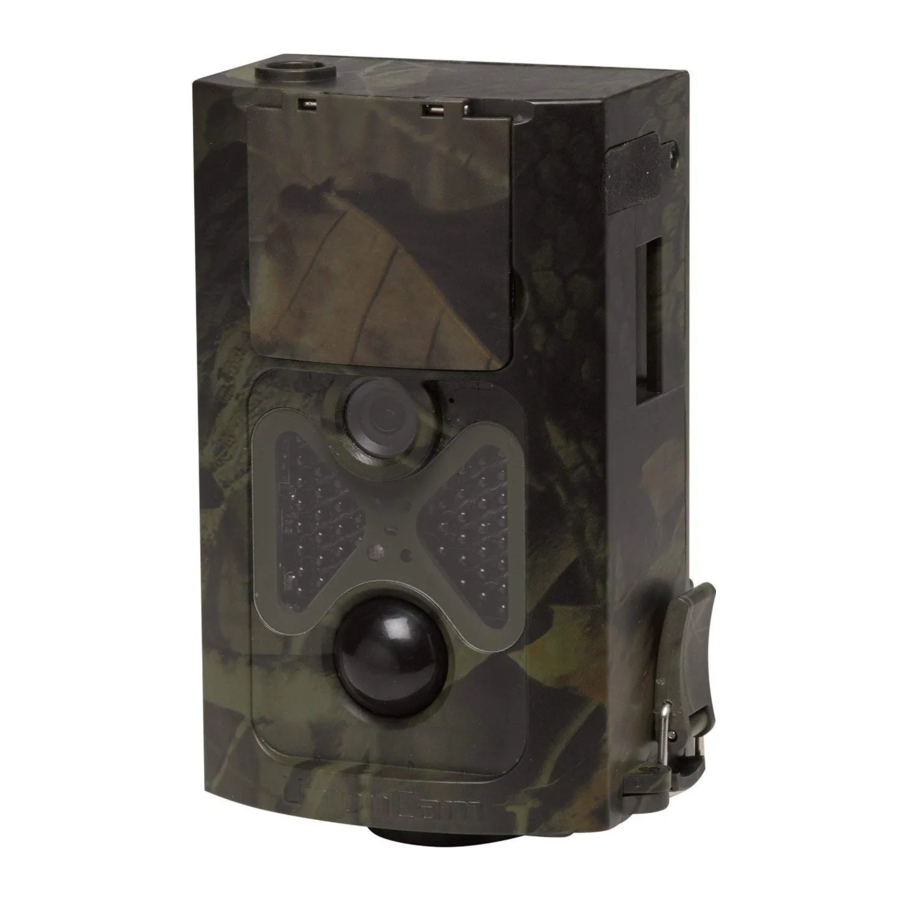

Denver WCT-3004 - Digital Infrared Trail Camera Manual

Instructions

General Description

This digital trail camera is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region monitored by motion sensor, and then automatically captures high quality pictures (up to 8M pixels) or records 1080p HD video clips (WVGA or QVGA).

During daytime, it will take color files(images or videos) and then it begins to take monochrome photos video. It is waterproof IP54

Camera Body Interface

It has the following interfaces: USB connector, SD-card slot, TV output and external DC power connector.

Camera components and features

1. Bottom Cover
2. SD-Card Slot
3. USB Connector
4. TV Out connector
5. PIR
6. Infrared Flash
7. Lens
8. 2 inch color LCD Display
9. Sound recorder
10. Lock
11. Power witch
12. Battery Depot
13. Portable remote controll
14. DC 6V Input

Remote Control

The remote control is primarily used for menu settings and password input. This is wireless remote control. The maximum remote distance is 9 meters.

Press LEFT or RIGHT to select menu table, press UP or DOWN to select the sub-menu then press OK to finish

Shooting Information Display

When the camera is turned on (the power switch is slid to TEST position), the shooting information will be displayed in the monitor.

1. SD Card
2. Camera Mode
3. Image Size
4. Battery Level
5. Date (M:D:Y)
6. Time (H:M:S)
7. Picture Space

Supported Format

Easy Operation

Power Supply

To supply power for the camera, 4 or 8 AA batteries are needed.

The following batteries with 1.5V output can be used:

1. High-density and high-performance alkaline batteries (Recommended)
2. Rechargeable alkaline batteries
3. Rechargeable NiMH batteries

When in Test Mode, camera will be automatically shut down to save power if without any operation within 3 minutes; it could be waked up by any movement detection.

When in low power state, camera will also automatically shut down.

Insert SD card

Insert SD-card with back up into the card slot.

Enter into the TEST Mode

Turn the power switch to the TEST position to enter into the TEST mode. There are some functions in TEST mode: user settings, manually capture, preview.

User Settings

Press the MENU button. The camera can be set (mode, picture resolution, video resolution& length, etc) The detailed operations will be described in following chapter.

Manual Capturing

press OK to manually capture photos or record video.

View Images or Videos

There are two ways to view the captured images or videos:

1. LCD screen on camera
2. TV monitors which connects to camera with TV cable press right arrow to view captured files, the latest image will be shown in the LCD screen or TV monitor. Press UP to view the last and press DOWN for the next. The detailed operations like deleting images or videos will be described in "Advanced Operations" chapter.

Power on and Enter into the ON Mode

Before switching on, please pay attention to the following items:

1. Don't face light source directly. These may cause false triggers
2. The height from ground for placing should be 1-2 meters. For example for deer height is good size appropriately.

After switching on the camera, the red light will blink for about 10s. The 10s is a buffering time before automatic capturing, e.g. lock the bottom cover, fix the camera on a tree and walk away.

Power Off

Slide the power switch to OFF position to turn off the camera.

Therefore, please remove the battery if the camera will not be used for a long time.

Advanced Operations

This chapter explains that user settings can only be done in TEST mode and the remote control is needed.

Settings Menu

Press MENU when camera in the TEST mode. The settings menu will be shown on the LCD or the external TV monitor.

Photo Setting

Video Setting

System Setting

The working voltage of the camera is 6.0V.

Please unlock and format the SD-card.

Please insert the SD-card when the power switch is at OFF position.

Please do not insert or take out the SD-card when the power switch is at ON position.

Please ensure full power when having firmware upgrade, otherwise the upgrade process could be stopped.

Technical Specifications

Parts List

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S
