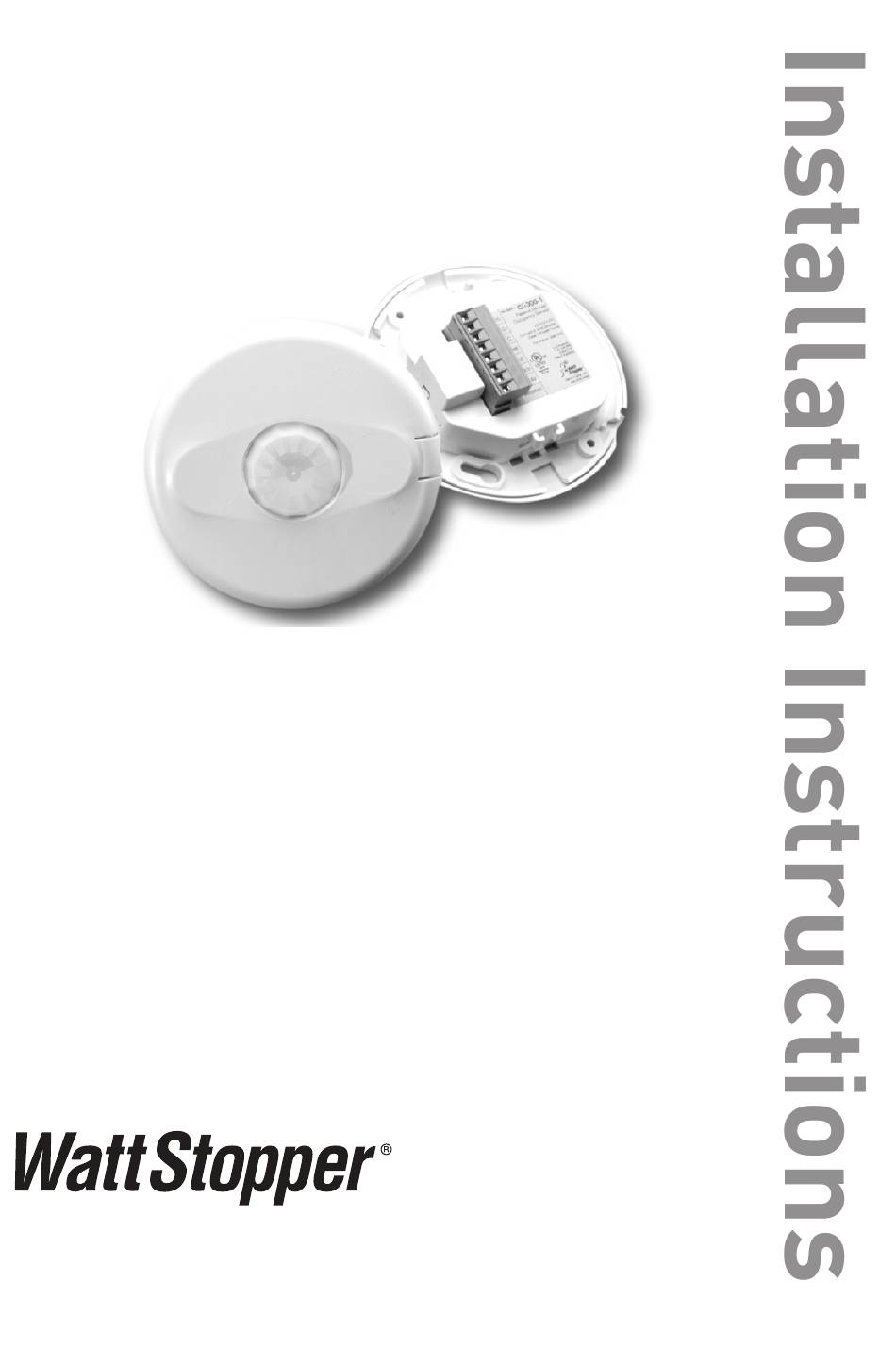

wattstopper CI-300 Installation Instructions Manual
wattstopper CI-300 Installation Instructions Manual

wattstopper CI-300 Installation Instructions Manual

360 passive infrared low voltage occupancy sensor

Advertisement

Quick Links

360° Passive Infrared • Low Voltage
with Light Level, Isolated Relay and Manual On features
Specifications
Voltage ........................ 18-28VDC/VAC, half wave rectified AC
Current Consumption ...................................................... 18mA
Power Supply .................................Watt Stopper Power Packs
Isolated Relay Rating ...................................... 1A @30VDC/VAC
Operating Temperature ..................... 32° to 131°F (0° to 55°C)
Light Level One-Step Adjustment ....................... 10FC—300FC
Time Delay Adjustment .................................... 5 to 30 minutes
Walk-Through Mode ...3 minutes if no activity after 30 sec.
Test Mode .5 sec. upon intial power-up or DIP switch reset
PIR Coverage
Sensitivity Adjustment ........ Automatic or Low (DIP switch)
Model CI-300 ................................................... up to 1200ft2
Model CI-300-1 ................................................. up to 500ft2
CI-300
Occupancy Sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CI-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for wattstopper CI-300

  • Page 1 Walk-Through Mode ...3 minutes if no activity after 30 sec. Test Mode .5 sec. upon intial power-up or DIP switch reset PIR Coverage Sensitivity Adjustment ..Automatic or Low (DIP switch) Model CI-300 ........... up to 1200ft2 Model CI-300-1 ..........up to 500ft2...
  • Page 2: Unit Description

    The CI-300 provides a 360° coverage pattern. Two lens patterns are available. The CI-300 provides up to 1200 square feet of coverage and the CI-300-1 provides up to 500 square feet of coverage. The coverage shown represents walking motion at a mounting height of 8 feet.
  • Page 3: Placement Guidelines

    Mount the sensor to the ceiling. The CI-300 and CI-300-1 are designed for a ceiling height of about 8-10 feet. Mounting above or below this range will significantly affect the coverage patterns.
  • Page 4: Wiring Directions

    TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING POWER PACKS OR SENSORS. Each Watt Stopper BZ series power pack can supply power for 8 CI-300 sensors. When using more sensors than this, multiple power packs are required. Refer to the wiring diagram on the next...
  • Page 5 White Load #1 Power Pack Low Voltage Load #2 Class 2 (Optional) Line Black Voltage Common Blue Control Out +24V Ceiling Depluggable Terminal Spring Clips (2) Rear Housing Line Voltage Switches Front Cover CI-300 Visit our website for FAQs: www.wattstopper.com...
  • Page 6: Line Voltage

    Blue +24V Black Man.Switch Control Out Jumper Common Back Man.Switch LVS-1 Ceiling Depluggable Terminal Spring Clips (2) LVS-1 Rear Housing For low voltage momentary switch set Front Cover CI-300 DIP switches. 1 = On CI-300 Call 800.879.8585 for Technical Support...
  • Page 7 4. When the LED stops flashing, replace the Front Cover. Pressing the pushbutton for 5 seconds or more resets the light level to the default. The LED flashes rapidly for 10 seconds after the setting has changed. Visit our website for FAQs: www.wattstopper.com...
  • Page 8: Mounting The Sensor

    MOUNTING THE SENSOR Directly to Ceiling 1. Attach the plastic spring clips to the edge of the sensor in the slots Ceiling provided. 2. Cut a 3.5” to 4” round hole in the acoustic ceiling tile at the Depluggable terminal mounting location.
  • Page 9: Sensor Adjustment

    * If you need to invoke the Test Mode and the DIP switches are already set for 5 seconds/SmartSet, toggle DIP switch #5 ON then back to the OFF position. This provides a 5 minute test period. During the test period, the Time Delay is only 5 seconds. Visit our website for FAQs: www.wattstopper.com...
  • Page 10: Dip Switch Setting

    DIP Switch Setting Chart DIP SWITCH SETTING The CI-300 has 7 DIP switches under the cover. They are used to set manual/automatic on/off functions, time delay and sensor activation LED settings. On Mode: Switch 1 The Manual ON function is facilitated by installing...
  • Page 11: Override: Switch

    Minimum forces a reduced detection range for the PIR. Max/SmartSet causes the sensor to monitor the controlled area and automatically select the maximum sensitivity that will provide reliable operation without false detection. This setting is constantly updated. Visit our website for FAQs: www.wattstopper.com...
  • Page 12: Troubleshooting

    TROUBLESHOOTING CAUTION TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE WORKING WITH OR NEAR HIGH VOLTAGE. Lights do not turn on with occupancy, and the following condition exists: • PIR Activity LED does not flash: NOTE: When power is initially applied to the sensor, there is a warm- up period of up to 30 seconds before the LED is active.
  • Page 13 1. Mask the lens to reduce PIR coverage (see “Masking the PIR Lens”, under “Placement Guidelines”). 2. Set DIP switch 7 to OFF and see if the excess activations stop. 3. Relocate the sensor. Visit our website for FAQs: www.wattstopper.com...
  • Page 14: Ordering Information

    S120/277/347E-P Auxiliary Relay Pack: 120/277VAC, 60Hz, 20A Ballast, 347VAC, 60Hz, 15A Ballast All sensors are white. B series power packs supply power for up to 6 CI-300 sensors. BZ series power packs supply power for up to 8 CI-300 sensors. WARRANTY INFORMATION WattStopper warranties its products to be free of defects in materials and workmanship for a period of five (5) years.

This manual is also suitable for:

Ci-300-1Ci-305Ci-305-1
