- Page 1 DAX140-2100G High pressure washer USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. OVERVIEW ............................... 3 2. APPLICATION ............................3 3. SAFETY REGULATIONS ........................4 4. OPERATING INSTRUCTIONS ........................ 6 5. SHUT DOWN ............................7 6. ADJUSTABLE SPRAY NOZZLE ....................... 7 7. GUN SAFETY DEVICE ..........................8 8. CLEANING PIN INSTRUCTION ......................8 9. -
Page 3: Overview

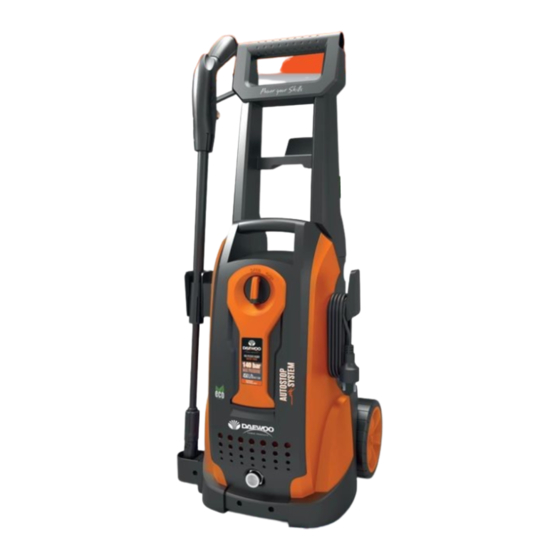

1. OVERVIEW 1. Water inlet 2. ON/OFF switch 3. High pressure washer 4. Water outlet (backside) 5. Mobile adapter bracket with wheel 6. Adjustable Spray Wand 7. Gun 2. APPLICATION The high pressure washer is a highly specialized multifunctional machine with exceptionally reliable safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment or garden patios, green houses etc. -
Page 4: Safety Regulations
3. SAFETY REGULATIONS WARNING: Read all the instructions before using the machine. WARNING: Machines shall not be used by children. Children should be supervised to ensure that they do not play with the machine. This machine is not intended for use by persons (including chil- dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge WARNING: The electrical supply connection shall be made by a quali ed person and comply with IEC 60364-1. - Page 5 The machine is not intended to be connected to the potable water mains. WARNING: To ensure the machine safety, please only use original spare parts (including nozzle) from the manufacturer or approved by the manufacturer. Do not use the machine before you changed them if they are damaged. WARNING: Be care of the danger of the kickback force on the spray assembly when opening the trigger gun and grasp the gun with hands rmly.
-
Page 6: Operating Instructions
WARNING: When the machine is running, please maintain a constant water supply. Without water circulation will damage the sealing rings of the machine. WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine has been started. -
Page 7: Shut Down
• Plug in machine and turn on switch. • Unlock trigger and use the pressure washer. 5. SHUT DOWN 1. Turn off the motor(push switch to the off position). 2. Unplug the unit from the power source. 3. Turn off the water supply. 4. -
Page 8: Gun Safety Device
Water inlet screen The water inlet lter must be inspected regularly, so as to avoid blockage and restriction in the water supply to the pump (Fig. 5). Using detergent Add detergent to the container. Set the Adjustable Spray Wand at low pressure position. Trigger gun to spray detergent. -
Page 9: Possible Problem And Solution
9. POSSIBLE PROBLEM AND SOLUTION FAULT PROBABLE CAUSE REPAIR Plug is not well connected or Check plug, socket When electric socket is faulty. switched on the machine The main voltage is Check that the main will not start insufficient, lower than voltage is adequate. -
Page 10: Electrical Diagram
10. ELECTRICAL DIAGRAM Switch 1 Working winding Switch 2 Start winding Black Green MOT. 1~ Yellow/Green 11. INSTALLATION, ELECTRICAL AND WATER CONNECTIONS... -
Page 11: Inspection And Maintenance
1. Pressure cleaner 2. Water supply hose (not include) 3. Water connection 4. Water inlet 5. High pressure tube 6. High-pressure, water outlet 7. Spray gun 8. Power supply NOTE: The company reserves the right to modify its machine speci cations without given any notice;... - Page 13 1. Water outlet joint x1 50. Skeleton SEAL 12×20×4 x3 2. Sring 0.5×10×6.5×11.85 x1 5. Plunger spring x3 3. O-ringφ22×2.4 52. Plunger x3 4. Blocking x1 53. Plunger clip x3 5. O-ringφ5×1.8 x1 54. Thrust ball bearings 51107B x1 6. Valve core x1 55.
-
Page 14: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 6 months for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 15 Manufactured under license of Daewoo International Corporation, Korea...
