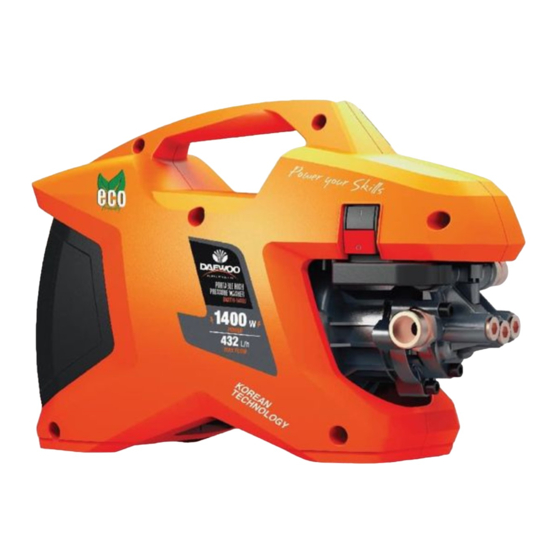

- Page 1 DAX110-1400G Portable high pressure washer USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. NAMES OF EXTERIOR PARTS ........................ 3 2. APPLICATION ............................3 3. SAFETY REGULATIONS .......................... 3 4. RUNNING INSTRUCTIONS ........................6 5. SHUT DOWN ............................6 6. ADJUSTABLE SPRAY NOZZLE ....................... 7 7. WATER INLET SCREEN ........................... 7 8. GUN SAFETY DEVICE ..........................7 9. -
Page 3: Names Of Exterior Parts
WARNING: Do not use the machine without reading the instruction sheet. 1. NAMES OF EXTERIOR PARTS Handle Water outlet Switch Water inlet 2. APPLICATION Portable high pressure washer is a highly specialized multifunctional machine with exceptionally reliable safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment or garden patios, green houses etc. - Page 4 WARNING: The electrical supply connection shall be made by a quali ed person and comply with IEC 60364-1. The electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove the earth circuit.
- Page 5 WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know how to stop the machine and bleed pressures quickly. Be thoroughly familiar with the controls.
-
Page 6: Running Instructions
WARNING: This machine has been designed for only using cleaning water, do not use corrosive chemicals. WARNING: Use cleaning agent supplied or recommend by the manufacturer. WARNING: High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, animals, live electrical equipment or the machine itself. -
Page 7: Adjustable Spray Nozzle
seconds racing of the motor to let take water completely spray out. 5. Disconnect the garden hose from the pressure washer. 6. Wipe all surfaces of the unit with a damp clean cloth. 7. Engage the gun safety lock. CAUTION: ALWAYS turn off the unit’s motor BEFORE turning off the unit’s water supply. Serious damage could occur to the motor if the unit is run without water. -
Page 8: Attaching Soap Dispenser Bottle
9. ATTACHING SOAP DISPENSER BOTTLE Insert metal end of the spray lance into the opening of spray gun (making sure to match the locking tabs on either side of the spray lance to the notches of the spray gun), Push in and twist in a cloc- kwise motion to lock spray lance and spray gun together (make sure there is a tight and secure tting between both). -
Page 9: Possible Problem And Solution
11. POSSIBLE PROBLEM AND SOLUTION FAULT PROBABLE CAUSE REPAIR When Plug is not well connected or Check plug, socket. switched on electric socket is faulty. the machine will not start The main voltage is insufficient, Check that the main voltage is working. -
Page 10: Installation, Electrical And Water Connections
13. INSTALLATION, ELECTRICAL AND WATER CONNECTIONS 1. Pressure cleaner 2. Water supply hose (not include) 3. Water connection (not include) 4. Water inlet 5. High pressure tube 6. High-pressure, water outlet 7. Spray gun 8. Power supply (not include) NOTE: The company reserves the right to modify its machine speci cations without given any notice;... -
Page 11: Inspection & Maintenance
14. INSPECTION & MAINTENANCE For safety use, make sure every three-months you clean the machine. Before working, make sure inspect the lter and the nozzle, make sure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine need to be repaired in the guarantee period, please return the machine to the shop. - Page 13 1. WATER OUTLET JOINT x1 2. SPRING 0.5X10X6.5X11.85 x1 3. O-RING, 22X2.4 x1 4. BLOCKING x1 5. O-RING, 5X1.8 x1 6. VALVE CORE x1 7. VALVE CORE SPRING x1 8. VALVE JACKET x1 9. O-RING, 4.5X1.8 x1 10. O-RING, 16X2.4 x1 11.
-
Page 14: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 6 months for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 15 Manufactured under license of Daewoo International Corporation, Korea...
