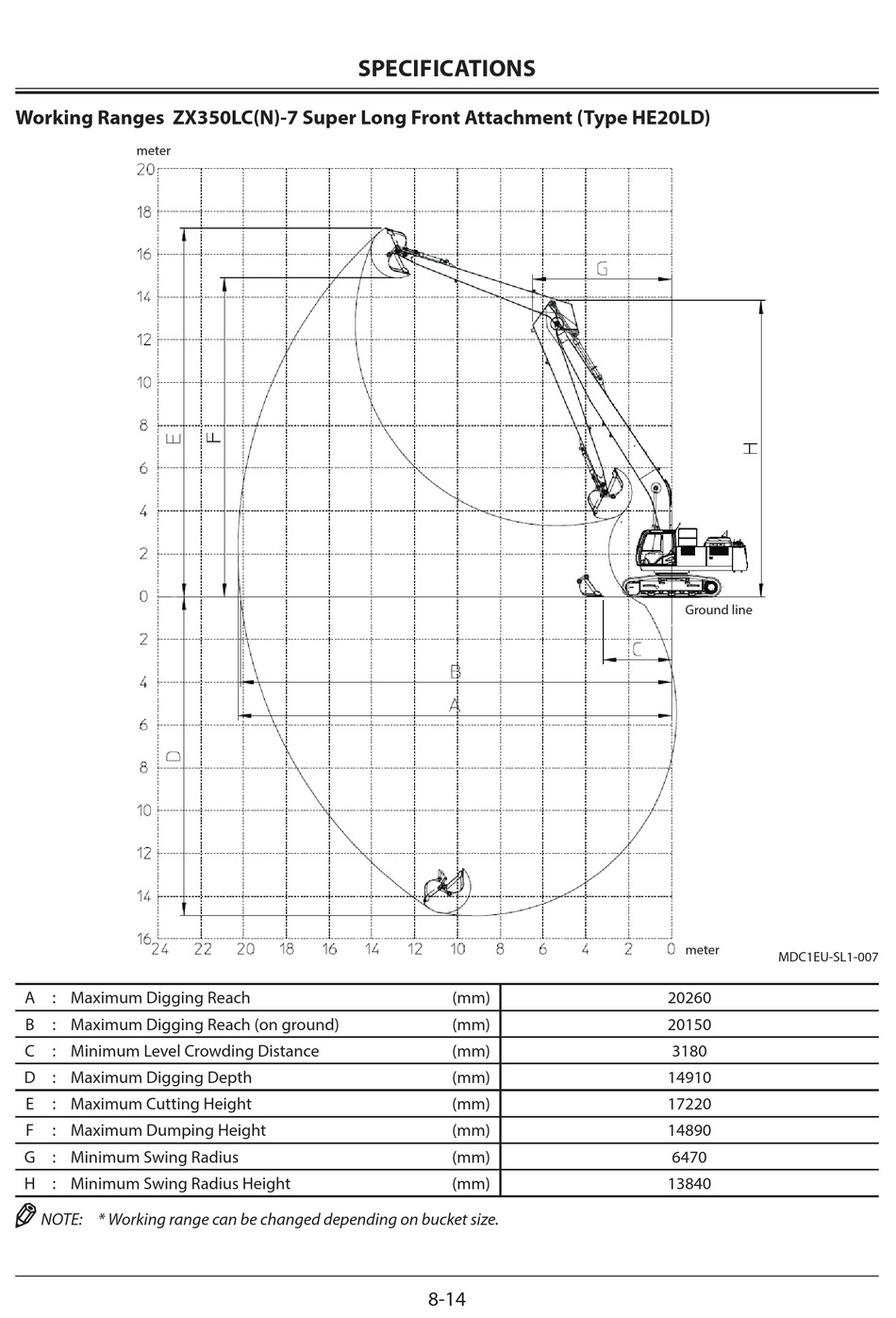

Working Ranges ZX350LC(N)-7 Super Long Front Attachment (Type HE20LD)

meter
A : Maximum Digging Reach
B : Maximum Digging Reach (on ground)
C : Minimum Level Crowding Distance
D : Maximum Digging Depth
E : Maximum Cutting Height
F : Maximum Dumping Height
G : Minimum Swing Radius
H : Minimum Swing Radius Height
f
NOTE: * Working range can be changed depending on bucket size.
SPECIFICATIONS
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
8-14
Ground line
meter
MDC1EU-SL1-007
20260
20150
3180
14910
17220
14890
6470
13840
