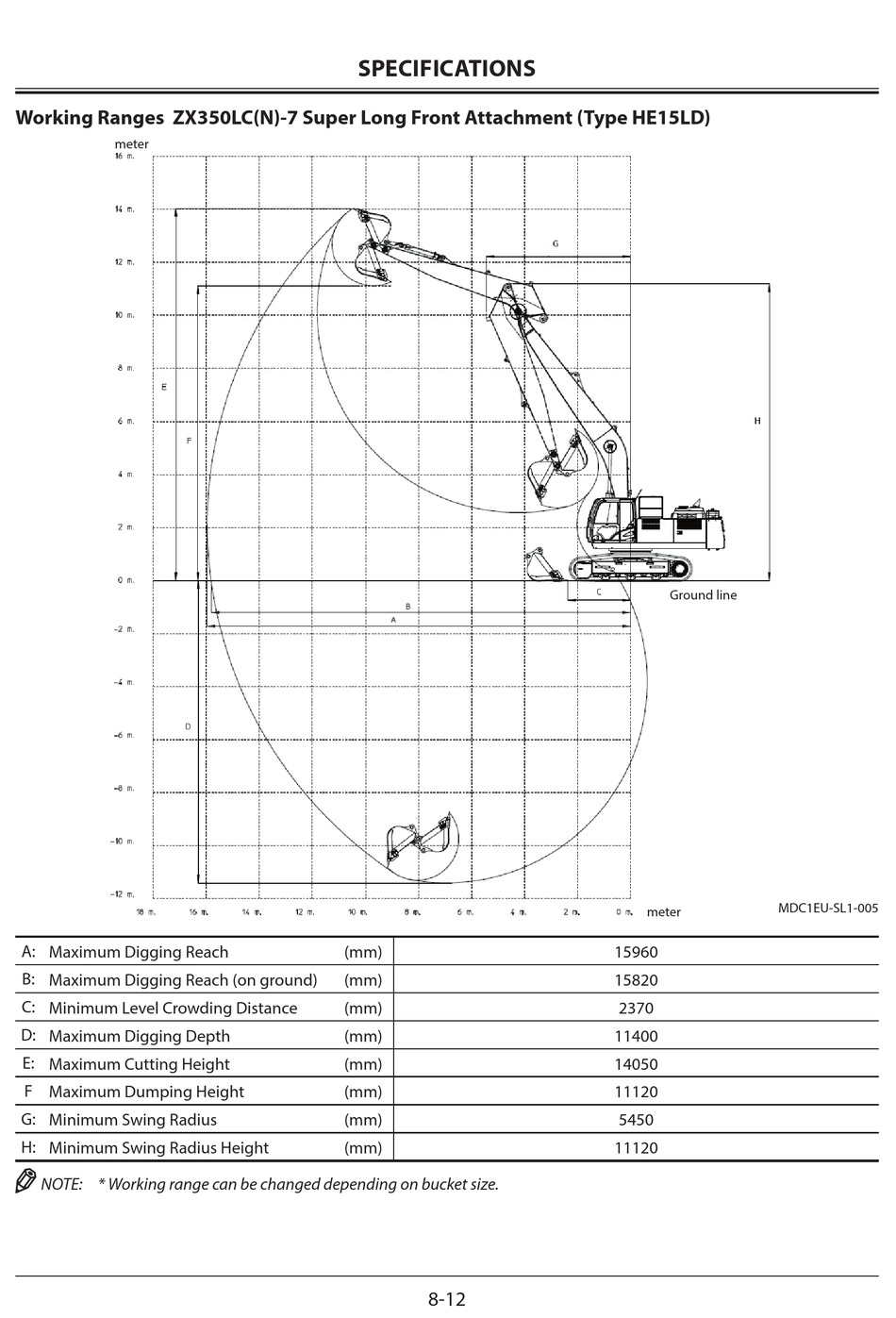

Working Ranges ZX350LC(N)-7 Super Long Front Attachment (Type HE15LD)

meter
A: Maximum Digging Reach
B: Maximum Digging Reach (on ground)
C: Minimum Level Crowding Distance
D: Maximum Digging Depth
E: Maximum Cutting Height
F Maximum Dumping Height
G: Minimum Swing Radius
H: Minimum Swing Radius Height
f
NOTE: * Working range can be changed depending on bucket size.
SPECIFICATIONS
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
8-12
Ground line
MDC1EU-SL1-005
meter
15960
15820
2370
11400
14050
11120
5450
11120
