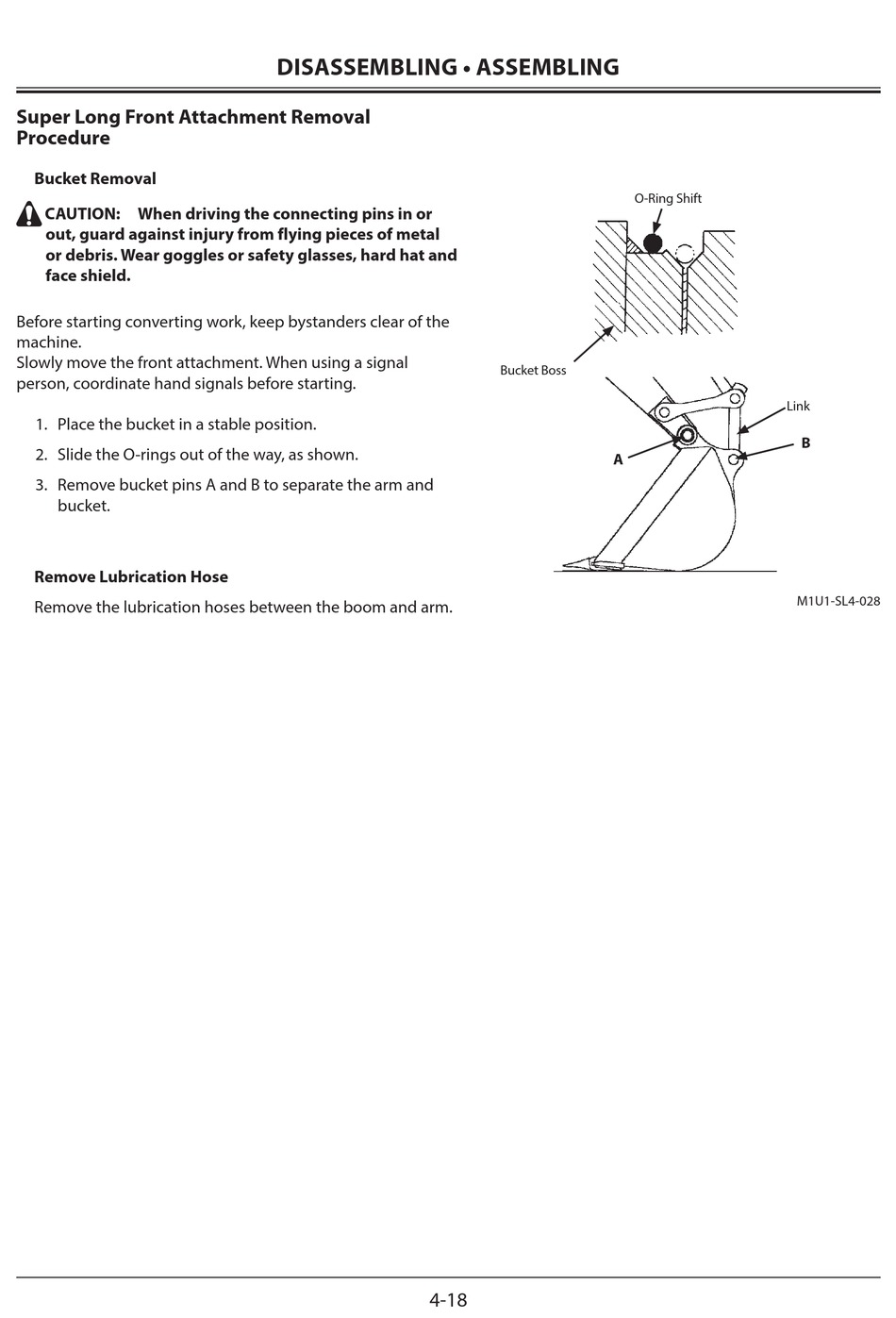

Super Long Front Attachment Removal
Procedure
Bucket Removal
d
CAUTION: When driving the connecting pins in or
out, guard against injury from flying pieces of metal
or debris. Wear goggles or safety glasses, hard hat and
face shield.
Before starting converting work, keep bystanders clear of the
machine.
Slowly move the front attachment. When using a signal
person, coordinate hand signals before starting.
1. Place the bucket in a stable position.
2. Slide the O-rings out of the way, as shown.
3. Remove bucket pins A and B to separate the arm and
bucket.
Remove Lubrication Hose
Remove the lubrication hoses between the boom and arm.
DISASSEMBLING • ASSEMBLING
4-18
O-Ring Shift
Bucket Boss
A
Link
B
M1U1-SL4-028
