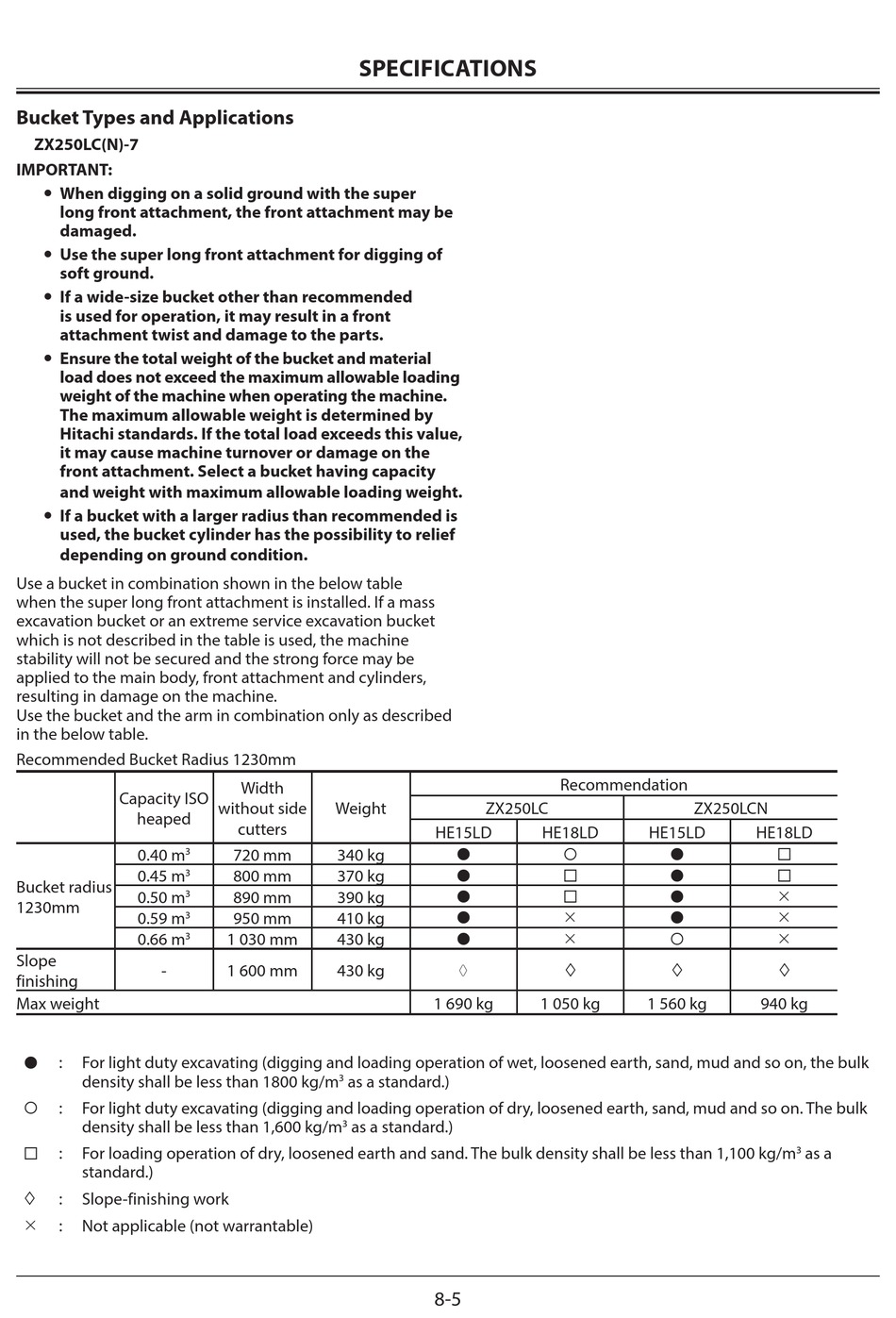

Bucket Types and Applications

ZX250LC(N)-7
IMPORTANT:
 When digging on a solid ground with the super
long front attachment, the front attachment may be
damaged.
 Use the super long front attachment for digging of
soft ground.
 If a wide-size bucket other than recommended
is used for operation, it may result in a front
attachment twist and damage to the parts.
 Ensure the total weight of the bucket and material
load does not exceed the maximum allowable loading
weight of the machine when operating the machine.
The maximum allowable weight is determined by
Hitachi standards. If the total load exceeds this value,
it may cause machine turnover or damage on the
front attachment. Select a bucket having capacity
and weight with maximum allowable loading weight.
 If a bucket with a larger radius than recommended is
used, the bucket cylinder has the possibility to relief
depending on ground condition.
Use a bucket in combination shown in the below table
when the super long front attachment is installed. If a mass
excavation bucket or an extreme service excavation bucket
which is not described in the table is used, the machine
stability will not be secured and the strong force may be
applied to the main body, front attachment and cylinders,
resulting in damage on the machine.
Use the bucket and the arm in combination only as described
in the below table.
Recommended Bucket Radius 1230mm
Capacity ISO
heaped
0.40 m
3
0.45 m
3
Bucket radius
0.50 m
3
1230mm
0.59 m
3
0.66 m
3
Slope
-
finishing
Max weight
:
For light duty excavating (digging and loading operation of wet, loosened earth, sand, mud and so on, the bulk
density shall be less than 1800 kg/m
:
For light duty excavating (digging and loading operation of dry, loosened earth, sand, mud and so on. The bulk
density shall be less than 1,600 kg/m
:
For loading operation of dry, loosened earth and sand. The bulk density shall be less than 1,100 kg/m
standard.)
:
Slope-finishing work
:
Not applicable (not warrantable)

SPECIFICATIONS

Width
without side
Weight
cutters
720 mm
340 kg
800 mm
370 kg
890 mm
390 kg
950 mm
410 kg
1 030 mm
430 kg
1 600 mm
430 kg
as a standard.)
3
as a standard.)
3
Recommendation
ZX250LC
HE15LD
HE18LD
1 690 kg
1 050 kg
8-5
ZX250LCN
HE15LD
HE18LD
1 560 kg
940 kg
as a
3
