TRASSIR TR-D3221WDIR3W User Manual

Specification
Model TR-D3221WDIR3W
Image sensor 1/2.8" CMOS 2МP
Resolution FullHD(1920x1080)
Frame rate 50Hz: FullHD@25fps
60Hz: FullHD@30fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.005Lux (F1.8)
IR range up to 30 m
Lens (mm)
Field of view (horiz./vert.) 101˚ / 55˚
Pan: 0˚-360˚
Axes setting
Tilt: 0˚-80˚
Rotation: 0˚-360˚
WDR Real WDR (120dB)
Digital Noise Reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
1 in / 1 out
Alarm In/Out
Corridor mode
Wi-Fi
IVS
Power PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 5.3W
PoE: 6.1W
Casing material
Dimensions (mm) Ø116.1 x 96.5
Net/Gross weight (g) 450 / 600
Protection IP66, IK10
Power surge TVS 4000V
suppressor
-40°C ... +60°C
Working temperature
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8
3D DNR
1 / 1
Yes
2.4 Ghz
Yes
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

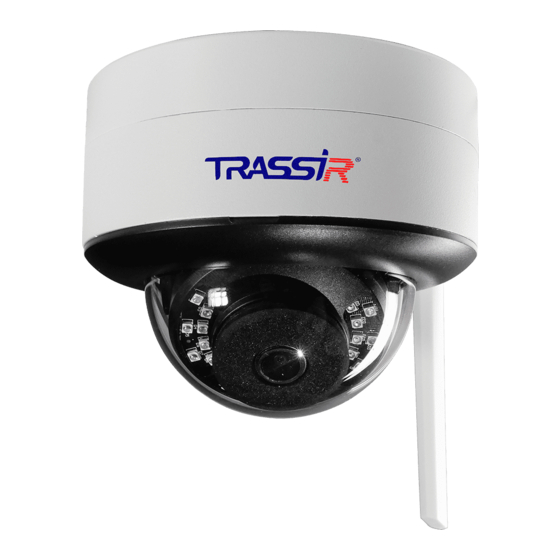

TR-D3221WDIR3W
Vandal-proof IR Network Wireless Dome
Camera
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
