TRASSIR TR-D3251WDIR3W Manual

Specification
Model TR-D3251WDIR3W
Image sensor
1/2.8" CMOS 5МP
Resolution 5MP(2592x1920) 4MP(2560x1440)
3MP(2304x1280) 2MP(1920x1280)
Frame rate 5MP/4MP/3MP/2MP@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity
0.005Lux (F1.8)
IR range
up to 30 m
Lens (mm)
Field of view (horiz./vert.)
91˚ / 66˚
Axes setting Pan: 0˚-360˚
Tilt: 0˚-80˚
Rotation: 0˚-360˚
WDR
Real WDR (120dB)
Digital Noise Reduction
Video compression
Н.265+ / Н.265 / H.264+ / H.264
Bitrate up to 8Mbps
Local storage
MicroSD up to 128GB
Audio Built-in microphone
1 in / 1 out
Alarm In/Out
Corridor mode
Wi-Fi
IVS
Power
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 5.1W
PoE: 6.3W
Casing material
Dimensions (mm) Ø116.1 x 96.5
Net/Gross weight (g)
450 / 600
Protection IP66, IK10
Power surge
TVS 4000V
suppressor
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8
3D DNR
1 / 1
Yes
2.4 Ghz
Yes
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

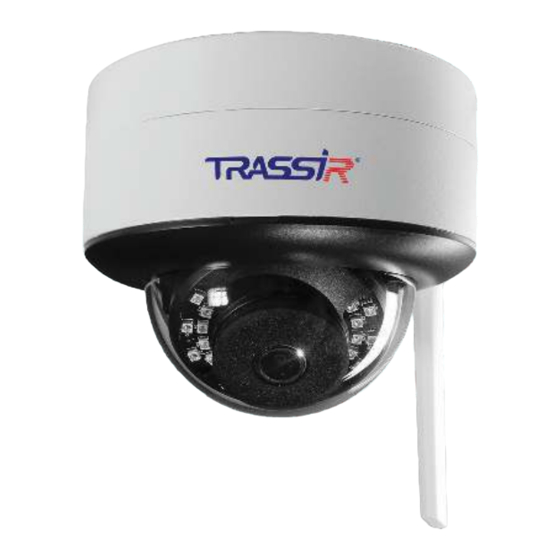

TR-D3251WDIR3W
Vandal-proof IR Network Wireless Dome
Camera
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
