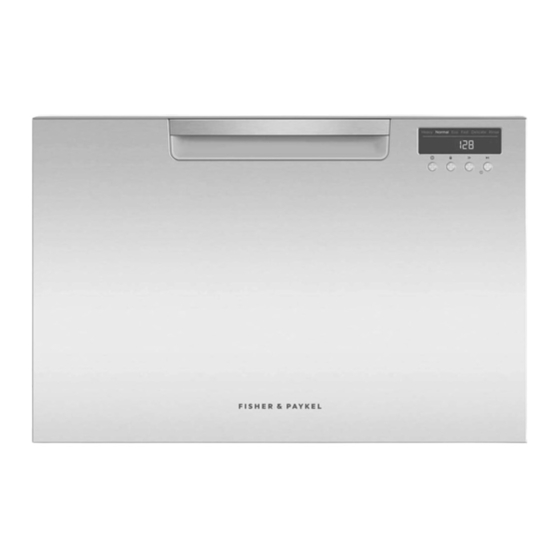

- Page 1 SINGLE DISHDRAWER™ DISHWASHER CONTEMPORARY DD24SA9, DD24SDT9 & DD24STN9 PROFESSIONAL DD24SVT9 INSTALLATION GUIDE US CA...
-
Page 3: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! To reduce the risk of fire, injury to persons or damage when using the appliance, follow the important safety instructions listed below. Read all the guidance before using the appliance. Electric Shock Hazard Servicing Failure to follow this advice may result in Do not repair or replace any part of the appliance unless specifically recommended in electrical shock or death. -
Page 4: Tools And Components
TOOLS AND COMPONENTS PARTS SUPPLIED TOOLS REQUIRED Keep all packing materials until the unit has been inspected. Not supplied Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Fisher &... - Page 5 PRODUCT DIMENSIONS — DD24SC MODELS DD24SC/SA DD24SCT PRODUCT DIMENSIONS INCHES INCHES A Overall height 16 1/8 17 7/8 B Overall width 23 9/16 23 9/16 C Overall depth 22 9/16 22 9/16 D Depth of chassis 21 3/4 21 3/4 E Height of door panel 15 1/2 17 1/4...
- Page 6 PRODUCT DIMENSIONS — DD24SD MODELS DD24SD DD24SDT PRODUCT DIMENSIONS INCHES INCHES A Overall height 16 1/8 18 13/16 B Overall width 23 9/16 23 9/16 C Overall depth* 22 9/16 22 9/16 D Depth of chassis 21 3/4 21 3/4 E Height of door panel 15 11/16 18 1/2...
- Page 7 PRODUCT DIMENSIONS — DD24STN MODELS DD24STN PRODUCT DIMENSIONS INCHES A Overall height 17 13/16 B Overall width 23 9/16 C Overall depth 22 9/16 D Depth of chassis 21 3/4 E Height of door panel 17 3/8 F Depth of door panel 13/16 PLAN ISOMETRIC...
- Page 8 PRODUCT DIMENSIONS — DD24SV2T9 MODELS DD24SV2T9 PRODUCT DIMENSIONS INCHES A Overall height 17 7/8 B Overall width 23 9/16 C Overall depth* 22 9/16 D Depth of chassis 21 3/4 E Height of door panel 17 3/8 F Depth of door panel 13/16 PLAN ISOMETRIC...
- Page 9 CABINETRY DIMENSIONS CLEARANCES Ensure the relationship between benchtop overhang and the recessed handle has been considered. Connections can be located in an adjacent cabinet on either side of the DishDrawer™ Dishwasher*** PLAN ISOMETRIC STD MODELS TALL MODELS CABINETRY CLEARANCES INCHES CABINETRY DIMENSIONS INCHES INCHES...
- Page 10 PLUMBING & ELECTRICAL CONSIDERATIONS Hose and cord lengths Your services can be installed to either the left-hand or right-hand side of the product in an adjacent cabinet. Refer to ‘Cabinetry preparation’ for service access requirements. If the drain hoses supplied are not long enough to reach your services, you may purchase a Fisher &...
- Page 11 HARD-WIRING (OPTIONAL) You have the option to hard-wire your DishDrawer™ Dishwasher. To do this, we recommend to remove the supplied power cord and do the hardwiring installation as close to the cavity as possible. Ensure only copper conductors are used. Slide the terminal block cover sideways to unlock and hinge open to access the terminal block.
- Page 12 HARD WIRING (OPTIONAL) Screw down the Live, Neutral and Earth wires correctly. Refit module cover before sliding the access cover back into place, ensuring the 2 clips shown are fully locked. Before refitting the drawer, ensure the hoses are not twisted. Refit the drawer to the runners and clip into place via both locking tabs.
- Page 13 CABINETRY PREPARATION SERVICE ACCESS MOISTURE PROTECTION Service holes can be created on either side of the DishDrawer™ Dishwasher cavity as shown below. If the hole is created through wood, ensure the edges are smooth and rounded. If the hole is created through metal, ensure the edge protector is fitted. Align the supplied moisture protection tape to the cabinetry as illustrated Ensure this area is free of debris...
- Page 14 SECURE TO CABINETRY VIA BRACKETS (METHOD A) Secure all four side brackets to the DishDrawer™ Dishwasher, aligning Secure to cabinetry via the brackets. bracket A with slot A and bracket B Pre-drilling a pilot hole may be required with slot B. depending on the cabinetry material.
- Page 15 SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B) Push the product into the cavity, pulling the hoses through as you push to avoid Secure to cabinetry via all three fixing crushing or twisting them. locations in the chassis. Push the product in the positions Ensure sound insulation is illustrated to avoid denting the door.
- Page 16 PLUMBING & ELECTRICAL CONNECTION Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION Install the drain hose support to the Install the drain hose support to the back wall, as close to the underside of back wall, as close to the underside of the countertop as possible.
- Page 17 PLUMBING & ELECTRICAL CONNECTION AIR GAP INSTALLATION Install your Air Gap Kit to the benchtop. We recommend using a Dual Air Gap Kit. Refer to ‘Plumbing & electrical connection’ for minimum install heights. Dual Air Gap Single Air Gap Thread wire clips onto the hoses before fitting them to the hose joiner.
-
Page 18: Installer Checklist
INSTALLER CHECKLIST TO BE COMPLETED BY THE INSTALLER Installation Electrical … … Check all parts are installed correctly and are secure. Ensure all electrical tests have been conducted in accordance with local regulations. … Ensure DishDrawer™ Dishwasher is securely fastened to the cabinetry and drawer opens Test operation and closes freely with no resistance. -
Page 19: Troubleshooting
TROUBLESHOOTING DD24SD, DD24SP, DD24ST4N and DD24ST4Z models The DishDrawer is beeping continuously Refer to the ‘Fault codes’ section of your User guide DISPLAY POSSIBLE CAUSE WHAT TO DO Water 1 Ensure the water supply is turned on. No program indicator lights up when the drawer is opened Supply fault. - Page 20 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
