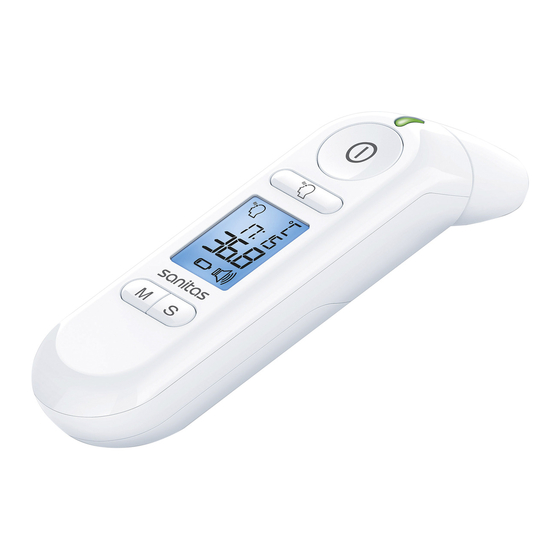

Multifunction Thermometer
SFT79
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan
Importer
Distributor
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your forehead thermometer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avita SFT79
Summary of Contents for Avita SFT79
- Page 1 Multifunction Thermometer SFT79 RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan Importer Distributor INSTRUCTION MANUAL Please read this instruction manual carefully...
-
Page 2: Table Of Contents
Contents Introduction ........................1 Important Information before Use ................2 Product Identification ..................... 4 Description of LCD Display ................... 5 Setting °C/°F and Date/Time ..................7 Operating the Bluetooth Function ................8 Measuring Body Temperature in the Ear ..............9 Measuring Body Temperature on the Forehead .......... -
Page 3: Introduction
Introduction Intended Use This thermometer is intended for home use and the measurement of human body temperature in people of all ages. This thermometer takes temperatures in seconds by measuring the heat generated by the ear canal/ on the forehead. Type of Use/ Reuse Multiple patient multiple use Intended User... -
Page 4: Important Information Before Use
Important Information before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. 1. Do not disassemble, repair, or remodel the thermometer. 2. Be sure to clean the thermometer lens each time after usage. 3. - Page 5 19. If you would require any assistance during setting up, using or maintaining, please contact the manufacturer. 20. Avoid using the device near an operating cell phone or microwave oven.
-
Page 6: Product Identification
Product Identification LED status indicator (temperature indicator) Power/Ear Measure button Forehead button Lens/ LCD Display Memory button SET button Probe Bottom Case Battery Compartment Lid... -
Page 7: Description Of Lcd Display
Description of LCD Display Date Time Measurement in progress Temperatuer unit Temperatuer unit Degree of temperature Sound symbol Low battery symbol Memory symbol and sets of records Object measurement Ear measurement Forehead measurement Bluetooth... - Page 8 Battery Installation When the batteries get weak, the battery warning symbol appears . It is still possible to measure temperature. The batteries must be replaced. When the battery symbol flashes and “Lo” appears in the display, the batteries must be replaced. If the batteries are too flat, then the thermometer will switch off automatically.
-
Page 9: Setting °C/°F And Date/Time
Setting °C/°F and Date/Time You can configure the following basic settings for the multi-function thermometer: temperature unit (Celsius / Fahrenheit), date, time and Bluetooth®. (1) To switch on the device press the ON / OFF / MEASURE button. (2) Press the S button for five seconds. (3) The current set temperature unit appears on the display. -
Page 10: Operating The Bluetooth Function
Operating the Bluetooth Function Note: Please refer to the instruction manual of your smart phone for how to activate the Bluetooth function. Set Up Process Download an app which supports Bluetooth 4.2 from the iTune App Store or Google Play. Enable Bluetooth on your mobile device. -
Page 11: Measuring Body Temperature In The Ear
Measuring Body Temperature in the Ear Remove the front cover. Press the Power/Measure button for 1 second to switch the thermometer on. All screen data will display on screen. Then the measurement mode flashes on screen. If the icon shows forehead mode, please press Power/Measure button again to change to ear mode. -
Page 12: Measuring Body Temperature On The Forehead
Measuring Body Temperature on the Forehead The cap should be in position on the probe nozzle. Press the Power/Measure button. All screen data will display on screen. Then the measurement mode flashes on screen. If the icon shows ear mode, please press the Power/Measure button again to change to forehead mode. -
Page 13: Memory Function
Memory Function Memory Recall: You can recall up to 30 measurements currently stored in memory to share with your physician or trained healthcare professional. 1. When the device is on, press once briefly on the Memory Button, then pass it again to show the last measurement. 2. -
Page 14: Cleaning And Disinfecting
Cleaning and Disinfecting For home use device disinfection, 75% Ethanol Isopropyl alcohol (available in the pharmacy) can be used. • Probe and Tip Clean the probe and tip with an75% Ethanol or Isopropyl alcohol before and after each measurement. • Thermometer: Use a soft, dry cloth to clean thermometer body. -
Page 15: Error Codes
Error Codes When a malfunction or incorrect temperature measurement occurs, an error message will appear as described below. LCD Display Cause Solution Operate the The temperature measured thermometer only is higher than between the specified 43°C (109.4°F) temperature ranges. If necessary, clean the sensor tip. -
Page 16: Technical Specification
Technical Specification • Range of Measurement : Human Body: 34°C – 43°C (93.2°F – 109.4°F) • Measuring accuracy : Human Body: 34°C – 43°C (93.2°F – 109.4°F) ±0.2°C (0.4°F) Out of range ±0.3°C (0.5°F) • Operating environment : 15°C – 40°C (59°F –... -
Page 17: Emc Tables
EMC Tables TS53B is intended for use in the electromagnetic environment specified below. The customer or the user of TS53B must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare HOME HEALTHCARE Phenomenon facility environment a) - Page 18 requested from supplier using the contact information provided in this manual. However, it is advisable to keep the electromechanical aerosol equipment at an adequate distance of, at least, 0.5 m from mobile phones or other RF communications transmitters to minimise possible interference.
-
Page 19: Explanation Of Symbols
Explanation of Symbols The CE marking with the Registration Number of the Notified Body. This denotes the compliance of European Medical Device Directive 93/42/EEC Medical Device Manufacturer Authorized representative in the European Community Date of manufacture (YYYY-MM-DD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX) - Page 20 Humidity limitation Atmospheric pressure limitation Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS RoHS Directive 2011/65/EU.
- Page 21 This product meets the basic safety and essential performance requirements indicated in the IP22 conditioning test (protection against solid foreign objects of 12.5mm ∅ and greater and against vertically falling water drops when enclosure tiled up to 15°) The empty, completely flat batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers.
