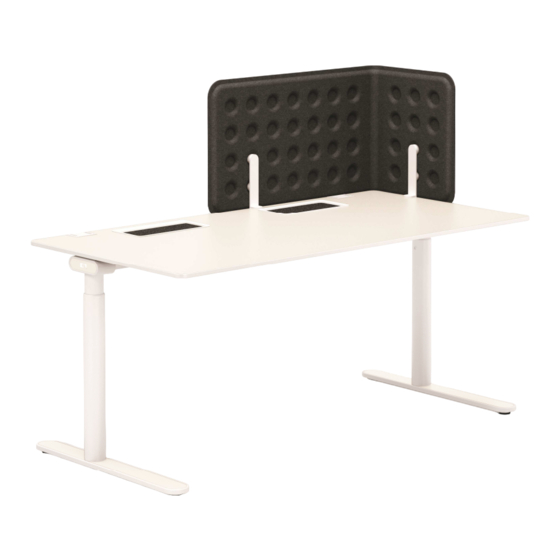

LIFE.S
Tischsystem
Desk system
D
Montageanleitung
D
Montageanleitung
EN
Assembly instructions
Abb. DO IT 4

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIFE.S and is the answer not in the manual?

Questions and answers

Related Manuals for KONIG+NEURATH LIFE.S

Summary of Contents for KONIG+NEURATH LIFE.S

  • Page 1 All manuals and user guides at all-guides.com LIFE.S Tischsystem Desk system Montageanleitung Abb. DO IT 4 Montageanleitung Assembly instructions...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Inhalt Sicherheitshinweise LIFE.S Tischsystem Montage T-Fuß Montage A-Fuß Montage 4-Fuß Montage der Schiebeplatte Montage der Klappwanne Montage Druckeransatz Montage CPU-Halter Montage Klemmadapter für Tischpaneele Montage Tischpaneel in Tischkonsole Montage Tischpaneel in Tischadapter Montage Fly-by Paneel in Tischkonsole Montage Winkelpaneel mit Klemmadapter Montage Winkelpaneel-Distanzstück...

  • Page 3: Sicherheitshinweise

    All manuals and user guides at all-guides.com Sicherheitshinweise Sollte den Anweisungen, die mit einem Warnsymbol markiert sind, nicht entsprochen werden, kann dies zu Unfällen mit ernsthaften Personenschäden führen. Bitte lesen Sie die folgenden Sicherheitshinweise sorg- fältig durch. Magnete haben eine starke Anziehungskraft. Bei unvorsichtiger Handhabung können Sie sich die Finger oder Haut quetschen.

  • Page 4: Life.s Tischsystem

    All manuals and user guides at all-guides.com LIFE.S Tischsystem Montage T-Fuß M8x70 (SW6) Die Verstellung ist feder- unterstützt und lässt das Höhenverstellung Gewicht abfedern. Der Tisch muss sich zur Ver- stellung im stehenden Ge- brauchszustand befinden, ansonsten besteht Verlet- zungsgefahr!

  • Page 5: Montage A-Fuß

    All manuals and user guides at all-guides.com Montage A-Fuß M8x70 (SW6) Achtung: Höhenverstellung Bei Verstellung kann das Tischbein absacken. Grundhöhe fix mit Verstellbereich Höhenausgleich 650 - 850 mm...

  • Page 6: Montage 4-Fuß

    All manuals and user guides at all-guides.com Montage 4-Fuß optional M6x55 (SW5) M8x70 (SW6) Neigungsverstellung (SW3) Achtung: Bei Verstellung kann Höhenverstellung das Tischbein absacken. Grundhöhe fix mit Verstellbereich Höhenausgleich 650 - 850 mm...

  • Page 7: Montage Der Schiebeplatte

    All manuals and user guides at all-guides.com Montage der Schiebeplatte 4-Fuß Tisch...

  • Page 8: Montage Der Klappwanne

    All manuals and user guides at all-guides.com Montage der Klappwanne ø4,8x50 öffnen 4-Fuß Tisch schließen ø5x60...

  • Page 9: Montage Druckeransatz

    All manuals and user guides at all-guides.com Montage Druckeransatz M5x8 (SW4) ø6,3x14 M6x8 M8x20 (SW4) (SW5)

  • Page 10: Montage Cpu-Halter

    All manuals and user guides at all-guides.com Montage CPU-Halter M5x16 (SW3) M8x20 (SW5) M6x8 (SW4) innen montiert M6x8 (SW4) außen montiert...

  • Page 11: Montage Klemmadapter Für Tischpaneele

    All manuals and user guides at all-guides.com Montage Klemmadapter für Tischpaneele Sicherheitshin- weise auf Seite 1 beachten.

  • Page 12: Montage Tischpaneel In Tischkonsole

    All manuals and user guides at all-guides.com Montage Tischpaneel in Tischkonsole M6x10 (SW5) innen außen Sicherheitshinweise auf Seite 1 beachten.

  • Page 13: Montage Tischpaneel In Tischadapter

    All manuals and user guides at all-guides.com Montage Tischpaneel in Tischadapter heraustrennen Sicherheitshinweise auf Seite 1 beachten. Montage Fly-by Paneel in Tischkonsole M6x10 (SW5) innen außen Sicherheitshinweise auf Seite 1 beachten.

  • Page 14: Montage Winkelpaneel Mit Klemmadapter

    All manuals and user guides at all-guides.com Montage Winkelpaneel mit Klemmadapter Sicherheitshin- weise auf Sei- te 1 beachten. Montage Winkelpaneel-Distanzstück...

  • Page 15: Montage Des Zubehörs

    All manuals and user guides at all-guides.com Montage des Zubehörs Sicherheitshinweise auf Seite 1 beachten. Zubehör...

  • Page 16: Montage Seitenwange An T-Fuß

    All manuals and user guides at all-guides.com Montage Seitenwange an T-Fuß ø4,5x14 Sicherheitshinweise auf Seite 1 beachten.

  • Page 17: Montage Seitenwange An 4-Fuß

    All manuals and user guides at all-guides.com Montage Seitenwange an 4-Fuß ø4,5x14 Sicherheitshinweise auf Seite 1 beachten.

  • Page 18: Montage Laptop-Schublade

    All manuals and user guides at all-guides.com Montage Laptop-Schublade ø4x13 Montage Stiftschublade ø4x13...

  • Page 19: Montage Smart Cpu-Halter

    All manuals and user guides at all-guides.com Montage Smart CPU-Halter ø4x13...

  • Page 20: Life.s Indoor

    All manuals and user guides at all-guides.com LIFE.S Indoor Montage des Gestells M8x70 (SW6)

  • Page 21: Montage Von Tischplatte, Sitzpolster Und Klappwanne

    All manuals and user guides at all-guides.com Montage von Tischplatte, Sitzpolster und Klappwanne 5x20 M4x16 5x20 Klappwanne...

  • Page 22: Montage Der Medienwand

    All manuals and user guides at all-guides.com Montage der Medienwand Gummistreifen einkleben ø5x16 Ansicht von außen 4,5x20...

  • Page 23: Life.s Interaction

    All manuals and user guides at all-guides.com LIFE.S Interaction Montage des Gestells M8x70 (SW6) M8x20 (SW4) M8x20 (SW4)

  • Page 24: Montage Der Tischplatten

    All manuals and user guides at all-guides.com Montage der Tischplatten 5x20 Montage des Sichtschutzes 5x40...

  • Page 25: Montage Eines Monitors

    All manuals and user guides at all-guides.com Montage eines Monitors Monitor max. 30“ max. 8 kg Platte an Monitor befestigen VESA 100x100 mm Montage der Klappwanne 5x20...

  • Page 26: Dachmontage

    All manuals and user guides at all-guides.com Dachmontage Gummistreifen einkleben ø5x16...
  • Page 27 All manuals and user guides at all-guides.com Dachmontage 4,5x40...

  • Page 28: Verbindungsblenden Einsetzen

    All manuals and user guides at all-guides.com Verbindungsblenden einsetzen...

  • Page 29: Life.s Stool

    All manuals and user guides at all-guides.com LIFE.S Stool Montage von Gestell und Sitzpolster M8x70 (SW6) M8x20 (SW4) M4x16...
  • Page 30 All manuals and user guides at all-guides.com Contents Safety instructions LIFE.S Desk system Fitting T-frame Fitting A-frame Fitting 4-leg frame Fitting sliding top Fitting fold-out cable tray Fitting printer tray Fitting CPU holder Fitting desk screen with clamp adapters Fitting desk screen in desk consoles...

  • Page 31: Safety Instructions

    All manuals and user guides at all-guides.com Safety instructions Failure to follow the instructions marked with a warning symbol can lead to accidents with serious personal injury. Please read the following safety instructions care- fully. The magnets have a high magnetic power. By careless handling there is a risk of injuring.

  • Page 32: Life.s Desk System

    All manuals and user guides at all-guides.com LIFE.S Desk system Fitting T-frame M8x70 (SW6) Caution: Adjustment is spring- Height adjustment assisted to cushion the weight. To adjust, the desk must be erect and ready to use, otherwise base tube jump out and...

  • Page 33: Fitting A-Frame

    All manuals and user guides at all-guides.com Fitting A-frame M8x70 (SW6) Height adjustment Caution! When adjusting the height may the leg slip downwards. Base height with Adjustment range height levelling 650 - 850 mm...

  • Page 34: Fitting 4-Leg Frame

    All manuals and user guides at all-guides.com Fitting 4-leg frame optional M6x55 (SW5) M8x70 (SW6) Inclination adjustment (SW3) Height adjustment Caution! When adjusting the height may the leg slip downwards. Base height with Adjustment range height levelling 650 - 850 mm...

  • Page 35: Fitting Sliding Top

    All manuals and user guides at all-guides.com Fitting sliding top 4-leg frame...

  • Page 36: Fitting Fold-Out Cable Tray

    All manuals and user guides at all-guides.com Fitting fold-out cable tray ø4,8x50 öffnen open close 4-leg frame schließen ø5x60...

  • Page 37: Fitting Printer Tray

    All manuals and user guides at all-guides.com Fitting printer tray M5x8 (SW4) ø6,3x14 M6x8 M8x20 (SW4) (SW5)

  • Page 38: Fitting Cpu Holder

    All manuals and user guides at all-guides.com Fitting CPU holder M5x16 (SW3) M8x20 (SW5) M6x8 (SW4) mounted from inside M6x8 mounted from outside...

  • Page 39: Fitting Desk Screen With Clamp Adapters

    All manuals and user guides at all-guides.com Fitting desk screen with clamp adapters Note safety instructions on page 29.

  • Page 40: Fitting Desk Screen In Desk Consoles

    All manuals and user guides at all-guides.com Fitting desk screen in desk consoles M6x10 (SW5) inside outside Note safety instructions on page 29.

  • Page 41: Fitting Desk Screen In Desk Adapters

    All manuals and user guides at all-guides.com Fitting desk screen in desk adapters snap off Note safety instruc- tions on page 29. Fitting fly-by screen in desk consoles M6x10 (SW5) inside outside Note safety instruc- tions on page 29.

  • Page 42: Fitting Corner Screen With Clamp Adapters

    All manuals and user guides at all-guides.com Fitting corner screen with clamp adapters Note safety instructions on page 29. Corner screen, fitting intermediate piece...

  • Page 43: Fitting Accessories

    All manuals and user guides at all-guides.com Fitting accessories Note safety instruc- tions on page 29. Zubehör Accessories...

  • Page 44: T-Frame, Fitting Side Screen

    All manuals and user guides at all-guides.com T-frame, fitting side screen ø4,5x14 Note safety instruc- tions on page 29.

  • Page 45: 4-Leg Frame, Fitting Side Screen

    All manuals and user guides at all-guides.com 4-leg frame, fitting side screen ø4,5x14 Note safety instruc- tions on page 29.

  • Page 46: Fitting Laptop Drawer

    All manuals and user guides at all-guides.com Fitting laptop drawer ø4x13 Fitting pencil drawer ø4x13...

  • Page 47: Fitting Smart Cpu Holder

    All manuals and user guides at all-guides.com Fitting smart CPU holder ø4x13...

  • Page 48: Life.s Indoor

    All manuals and user guides at all-guides.com LIFE.S Indoor Fitting frame M8x70 (SW6)

  • Page 49: Fitting Tabletop, Seat Cushion And Fold-Out Cable Tray

    All manuals and user guides at all-guides.com Fitting tabletop, seat cushion and fold-out cable tray 5x20 M4x16 5x20 Fold-out cable tray...

  • Page 50: Fitting Media Wall

    All manuals and user guides at all-guides.com Fitting media wall Glue in rubber strips ø5x16 View from outside 4,5x20...

  • Page 51: Life.s Interaction

    All manuals and user guides at all-guides.com LIFE.S Interaction Fitting frame M8x70 (SW6) M8x20 (SW4) M8x20 (SW4)

  • Page 52: Fitting Tabletops

    All manuals and user guides at all-guides.com Fitting tabletops 5x20 Fitting privacy screen 5x40...

  • Page 53: Fitting Monitor

    All manuals and user guides at all-guides.com Fitting monitor Monitor max. 30“ max. 8 kg Fix plate to monitor VESA 100x100 mm Fitting fold-out cable tray 5x20...

  • Page 54: Fitting Roof

    All manuals and user guides at all-guides.com Fitting roof Glue in rubber strips ø5x16...
  • Page 55 All manuals and user guides at all-guides.com Fitting roof 4,5x40...

  • Page 56: Insert Covers

    All manuals and user guides at all-guides.com Insert covers...

  • Page 57: Life.s Stool

    All manuals and user guides at all-guides.com LIFE.S Stool Fitting frame and seat cushion M8x70 (SW6) M8x20 (SW4) M4x16...
