NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MD-739
Retain This
Manual for
Reference
110816

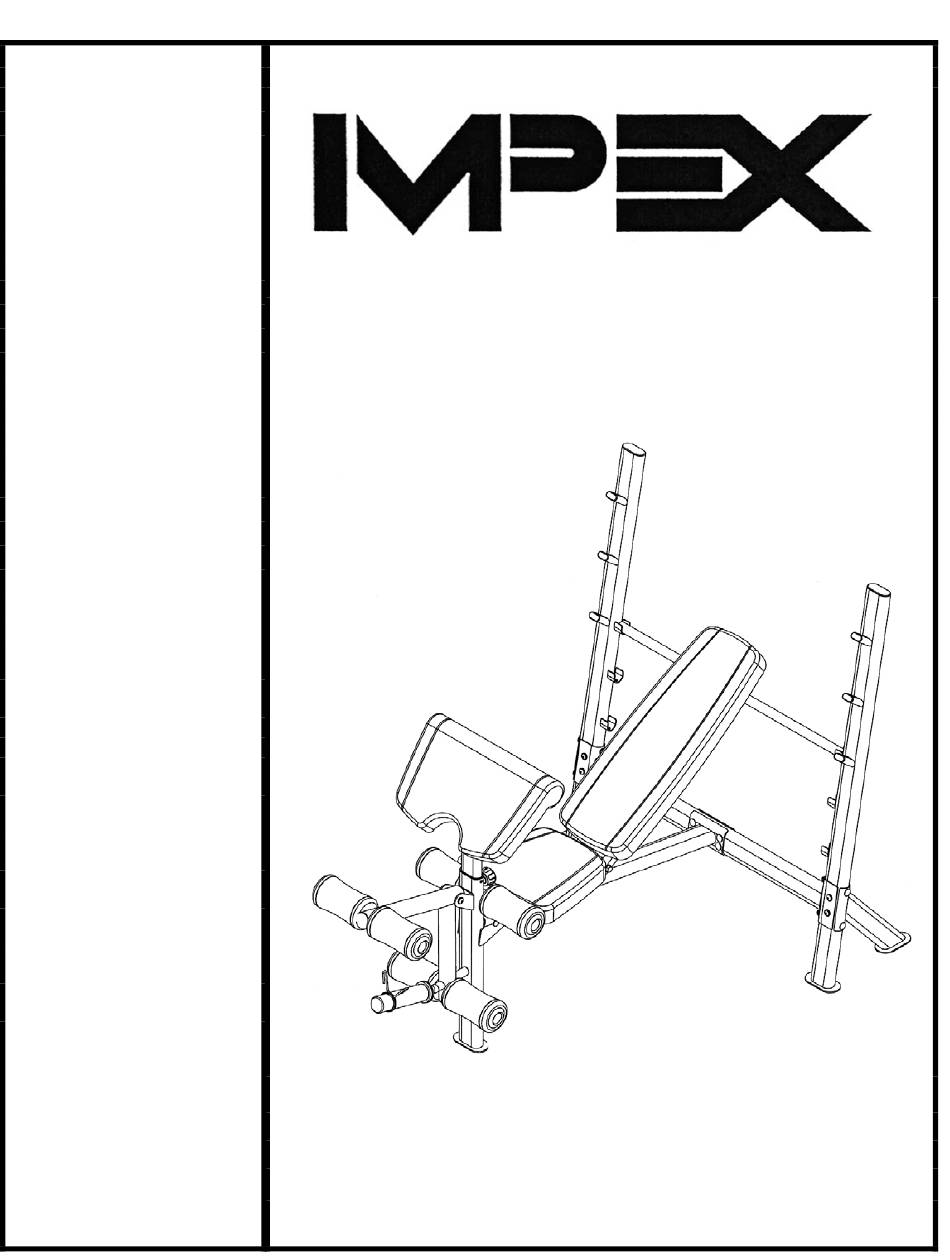

OWNER'S
MANUAL
MARCY DIAMOND ELITE
OLYMPIC BENCH
2801 S. Towne Ave., Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MD-739
®
IMPEX
INC.
Advertisement
Related Manuals for Impex MD-739
Summary of Contents for Impex MD-739
- Page 1 NOTE: Please read all instructions carefully before using this product MARCY DIAMOND ELITE Table of Contents OLYMPIC BENCH Safety Notice Hardware Pack MD-739 Assembly Instruction Parts List Warranty Ordering Parts Model MD-739 Retain This Manual for Reference 110816 OWNER'S MANUAL ®...
-
Page 2: Table Of Contents
PARTS LIST………….…………...............………. 11 WARRANTY....................…………. 12 ORDERING PARTS..................………… 12 BEFORE YOU BEGIN Thank you for selecting the Marcy Diamond Elite MD-739 BENCH by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notices
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. - Page 4 WARNING LABEL PLACEMENT The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown...
-
Page 5: Hardware Pack
HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. - Page 6 HARDWARE PACK...
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTION Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Do not tighten all nuts and bolts until instructed to do so. B.) Attach the Left Diagonal Support (#3) to the Left Upright Beam (#1) from rear. - Page 8 STEP 2 (See Diagram 2) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Attach the Front Post (#6) to the Main Seat Support (#7). Secure it with one M10 x 4” Carriage Bolt (#32), one Ø ¾” Washer (#40), and one M10 Aircraft Nut (#43) from side. Secure it with two M10 x 2 1/8”...
- Page 9 STEP 3 (See Diagram 3) A.) Attach the Seat Bracket (#10) to the pivot on Main Seat Support (#7). Attach the two Backrest Supports (#9) to the Seat Bracket from each side. Secure them together with One M12 x 7 1/8” Hex Bolt (#31), two Ø 1” Washers (#39), and one M12 aircraft Nut (#42).
- Page 10 STEP 4 (See Diagram 4) A.) Attach two Ø ¾” x Ø 3/8” Bushings (#29) to the Leg Developer (#12). Attach the Leg Developer to the open bracket on Front Post (#6). Secure it with one M10 x 3 1/8” Allen Bolt (#35), two ...
-
Page 12: Parts List
PARTS LIST KEY NO. DESCRIPTION Q’ty Left Upright Beam Right Upright Beam Left Diagonal Support Right Diagonal Support Cross Brace Front Post Main Seat Support Backrest Adjustment Bar Backrest Support Seat Bracket Arm Curl Stand Leg Developer Long Foam Tube Foam Tube 5 ½”... -
Page 13: Warranty
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage.
