NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Exploded Diagram
Parts List
Warranty
Ordering Parts

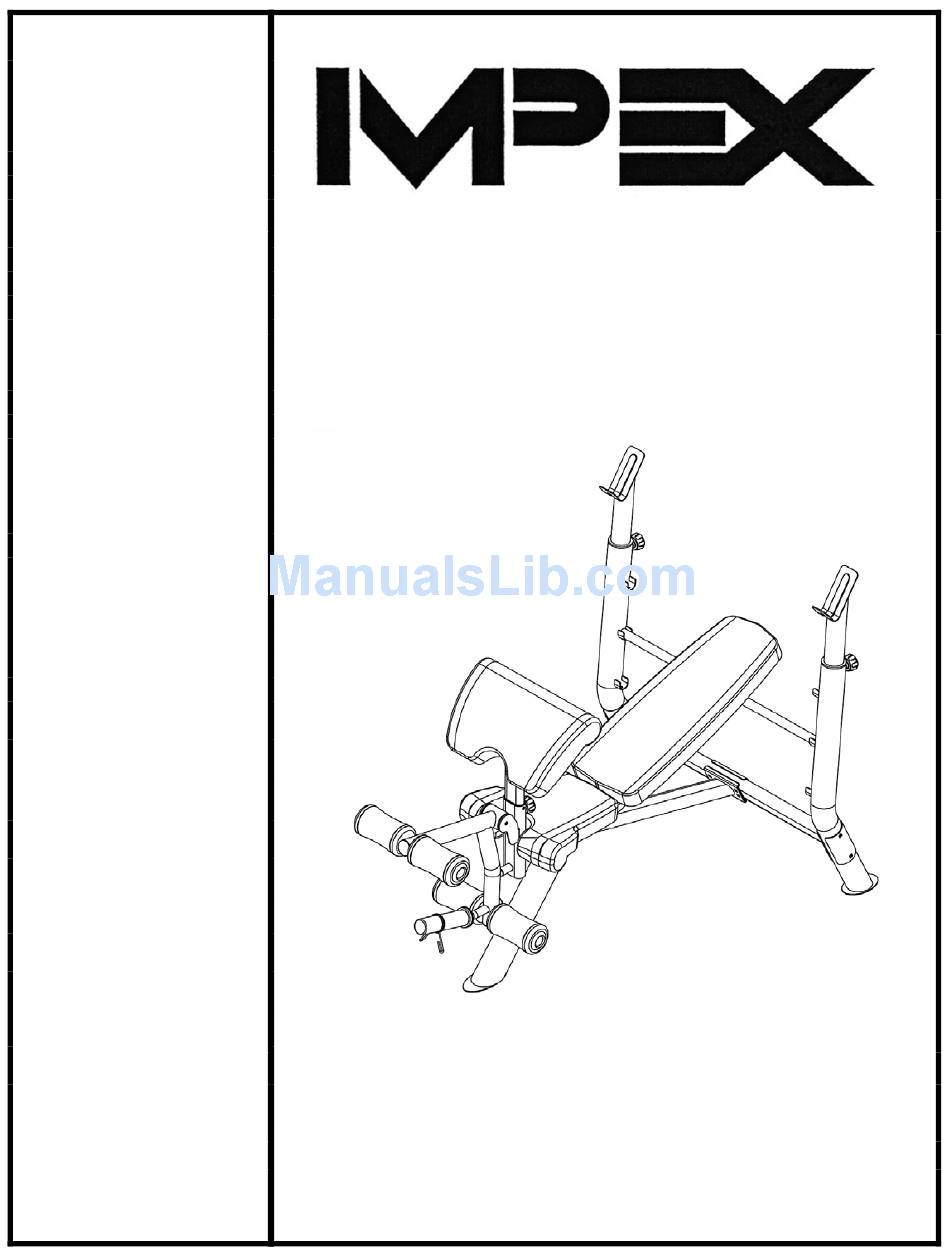

Model
MD-7502
Retain This
Manual for
Reference
100924
OWNER'S
MANUAL
MARCY DIAMOND
WEIGHT BENCH
14777 Don Julian Rd., City of Industry, CA 91746
Tel: (800) 999-8899 Fax (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MD-7502
®
IMPEX
INC.
Advertisement
Table of Contents
Related Manuals for Impex MD-7502
Summary of Contents for Impex MD-7502
- Page 1 NOTE: Please read all instructions carefully before using this product MARCY DIAMOND Table of Contents WEIGHT BENCH Safety Notice MD-7502 Hardware Pack Assembly Instruction Exploded Diagram Parts List Warranty Ordering Parts Model MD-7502 Retain This Manual for Reference 100924 ®...
-
Page 2: Table Of Contents
EXPLODED DIAGRAM..................PARTS LIST..................... WARRANTY..................... ORDERING PARTS..................BEFORE YOU BEGIN Thank you for selecting the MARCY DIAMOND WEIGHT BENCH MD-7502 by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notice
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS. -
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The Warning Labels shown here have been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown... -
Page 5: Hardware Pack
HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. -
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTION Tools Required For Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended for two or more people to assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Do not tighten the Nuts and Bolts until instructed to do so. B.) Connect the Left &... - Page 7 STEP 2 (See Diagram 2) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Attach the Main Seat Support (#4) to the Front Post (#5). Secure it with two M10 x 2 3/8” Carriage Bolts (#35), one 6 ¼” x 5 1/8” Bracket (#17), two Ø ¾” Washers (#40), and two M10 Aircraft Nuts (#42).
- Page 8 STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#11) to the open bracket on Main Seat Support (#4). Secure it with an Axle (#25), two M10 x ¾” Allen Bolt (#36), and two Ø ¾” Washers (#40). Do not over tighten the Bolts.
- Page 9 STEP 4 (See Diagram 4) A.) Attach the Seat Bracket (#6) to the pivot on the Main Seat Support (#4). Attach the holes on the end of the two Backrest Supports (#7) to the Seat Bracket. Align the holes. Secure the two Backrest Supports, Seat Bracket together to the pivot with one M12 x 7”...
- Page 10 STEP 5 (See Diagram 5) A.) Attach the Arm Curl Pad (#15) to the Arm Curl Stand (#10). Secure it with two M8 x 5/8” Allen Bolts (#38) and two Ø 5/8” Washers (#39). B.) Insert the Arm Curl Stand into the opening on front of Main Seat Support (#4). Use the M18 x Ø...
-
Page 12: Parts List
PARTS LIST KEY NO. DESCRIPTION QUANTITY Left Upright Beam Right Upright Beam Cross Brace Main Seat Support Front Post Seat Bracket Backrest Support Crutch Backrest Adjustment Bar Arm Curl Stand Leg Developer Foam Tube Backrest Board Seat Pad Arm Curl Pad 5 ½”... -
Page 13: Impex Inc
This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by IMPEX.
