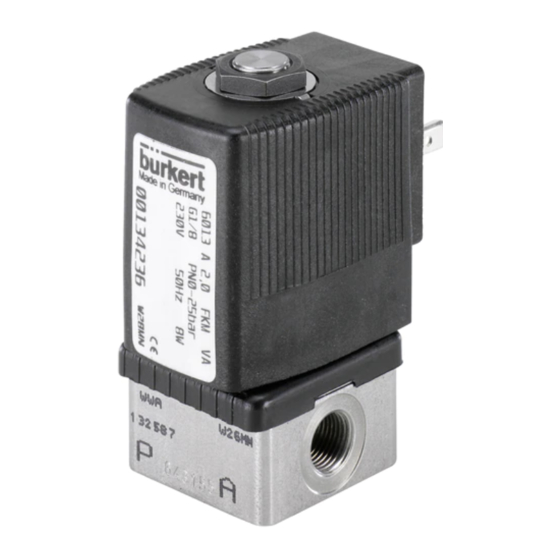

Burkert 6013 Operating Instructions Manual
2/2-way solenoid valve
Hide thumbs
Also See for 6013:
- Operating instructions manual (7 pages) ,
- Operating instructions (5 pages)
Table of Contents
Advertisement
Quick Links
Type 6013
Magnetventil
2/2-Way Solenoid Valve
2/2-Wege Magnetventil
Électrovanne à 2/2 voies
Operating Instructions
Bedienungsanleitung
Manuel d'utilisation
Address / Adresse
Germany / Deutschland / Allemagne
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. + 49 (0) 7940 - 10 91 111
Fax + 49 (0) 7940 - 10 91 448
E-mail: info@burkert.com
International
country.burkert.com
Manuals and data sheets on the Internet /
Bedienungsanleitungen und Datenblätter im
Internet / Manuel d'utilisation et fiches techniques
sur Internet :
country.burkert.com
© Bürkert-Werke GmbH & Co. KG, 2013 - 2023
Operating Instructions 2304/24_EUml_00803465 /
Original DE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Burkert 6013
Summary of Contents for Burkert 6013
- Page 1 Germany / Deutschland / Allemagne Bürkert Fluid Control Systems Sales Center Christian-Bürkert-Str. 13-17 D-74653 Ingelfingen Tel. + 49 (0) 7940 - 10 91 111 Type 6013 Fax + 49 (0) 7940 - 10 91 448 E-mail: info@burkert.com Magnetventil International 2/2-Way Solenoid Valve country.burkert.com...
-
Page 2: Intended Use
▶ In potentially explosive environments, the device must only be ▶ The liability and warranty for the Type 6013 device will be invali- used in accordance with the specifications on the separate Ex dated if the operating instructions are not followed. -
Page 3: Basic Safety Instructions
The term “device” used in these instructions always refers to the Continuous operation may result in a hot device surface. Type 6013 solenoid valve. ▶ Only touch the device when wearing protective gloves. ▶ Keep the device away from highly flammable substances and BASIC SAFETY INSTRUCTIONS media. -
Page 4: Technical Data
▶ When using the device outdoors, protect it from adverse (see resistance table at country.burkert.com). weather conditions. Check resistance in each individual case. ▶ Avoid heat sources which may cause the permissible tempera- ture range to be exceeded. - Page 5 Fluidic data (for UL approved valves) Temperature-/fluid ratings General Purpose Valve Seal Seal material Fluid Temperature Ambient Temperature Fluids Designation [°F] [°C] [°F] [°C] Non-hazardous fluids FF (IB46/IB76) Low temp. FKM –40...+212°F –40 ... +100°C –40...+131°F -40 ... +55°C Air, Inert gas +14...+212°F –10 ...
-
Page 6: Type Label (Example)
2/2-way valve, normally open (NO) 50Hz 1 (P) Pressure range: see type label WXXXX 00450000 Port connection: Type 6013: G1/8, G1/4, G3/8, flange Device type Circuit function Type 6013A: G1/8, G1/4 Orifice Seal material Approvals Body material Connection, nominal pressure The valve is approved as a General Purpose or Safety Shutoff Valve. -
Page 7: Electrical Data
DIN EN 175301-803 Design A DANGER for cable plug Type 2509 or Type 2518 Operating Type 6013: High pressure danger. voltage: 24 V DC ±10%, max. residual ripple 10% ▶ Switch off the pressure before working on the device or system. -
Page 8: Fluidic Installation
Fluidic installation Valve with flange connection: → Remove cover plate. Installation position: any, preferably actuator face up. → Loosen nut and remove coil. Flow direction (for normally closed/Safety Shutoff Valves): The letters on the valve body state the pressure (P) and outlet (A). WARNING! For normally open valves (not for Safety Shutoff Valves): The letters on the valve body state the pressure (P) and outlet (B). -
Page 9: Electrical Installation
You can find information about the Type 2509 and 2518 cable Polarity Description Terminal assignment plugs in their operating instructions at Valve (P-seat) (+) on terminal 2, country.burkert.com – Switch ON + is opened (–) on terminal 1 Valve (P-seat) (+) on terminal 1, + Switch OFF –... -
Page 10: Maintenance & Troubleshooting
Rotate the coil MAINTENANCE, TROUBLESHOOTING WARNING! Safety instructions WARNING! Risk of injury due to electric shock. If there is no protective conductor function between the coil and Risk of injury due to improper maintenance work. the body, there is a risk of electric shock. ▶... - Page 11 DEACTIVATION Disassembly → Switch off pressure and drain lines. Safety instructions → Switch off electrical voltage. DANGER! → Remove the cable plug. High pressure danger. Valve with threaded connection: → ▶ Switch off the pressure before working on the device or system. Hold the valve on the valve body using an open-end wrench Vent or empty the lines.
-
Page 12: Spare Parts
▶ Store the device in a dry and dust-free location. Wearing part set on request. Storage temperature: –40…+80°C. Environmentally friendly disposal ▶ Follow national regulations regarding disposal and the environment. ▶ Collect electrical and electronic devices separately and dispose of them as special waste. Further information at country.burkert.com. English... - Page 13 country.burkert.com...
