In addition to the ISC-2425-25+ controller and ZHL-2425-250X+ amplifier, the following components are needed:
A power supply for the ZHL-2425-250X+ power amplifier 32V,

16Amp for the power amplifier;
Note: a power supply for the ISC-2425-25+ is optional since it is by default powered by USB. (for RF out- put power

values up to 23dBm)
For applications where the full RF output power (25dBm) of the ISC-2425-25+ is needed, a dedicated 5.5V supply is
required. (5.5V, 1 Amp);
An appropriate microwave cavity with the chosen material as the load

Additional Cables Required:

DC supply cable (32V, 16A, wire diameter ≥2.5mm2 or ≤14AWG) to connect the main power supply to the amplifier.
These are connected to the ZHL-2425-250X+ using Mating M5 screw (Mcmaster P/N 92095A308), Belville washer
(Mcmaster P/N 90895A027), Ring Terminal (Mcmaster P/N7113K29), please refer to the ZHL-2425-250X+
datasheet.
N-type male (on amplifier side) RF cable to microwave cavity connection
Software:

Mini-Circuits GUI:

Developed for integration with touch displays and with a PC and mouse. Available for
download on Windows & Linux here: [Download link pending]

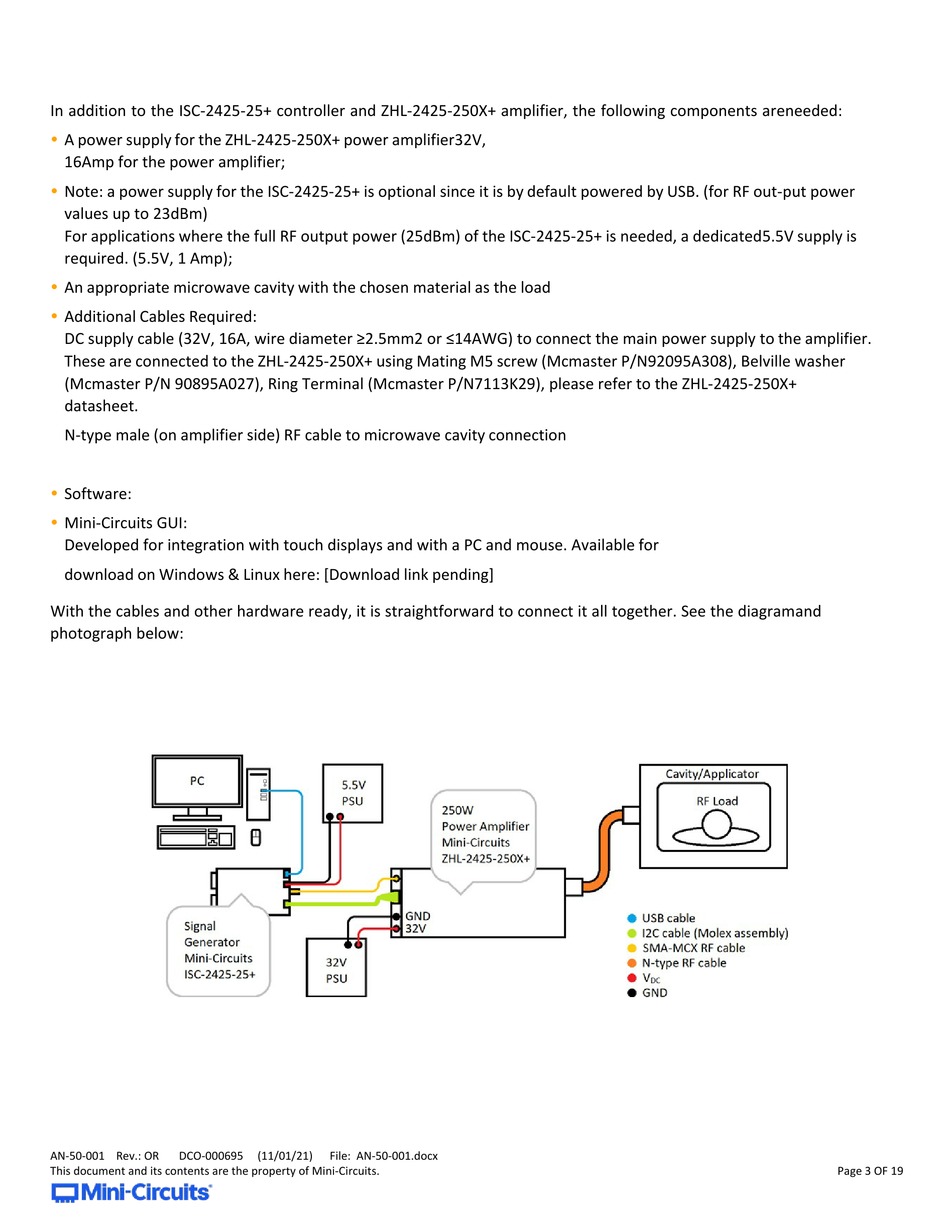

With the cables and other hardware ready, it is straightforward to connect it all together. See the diagram and
photograph below:
