2.1 Step 1 – Assemble the hardware

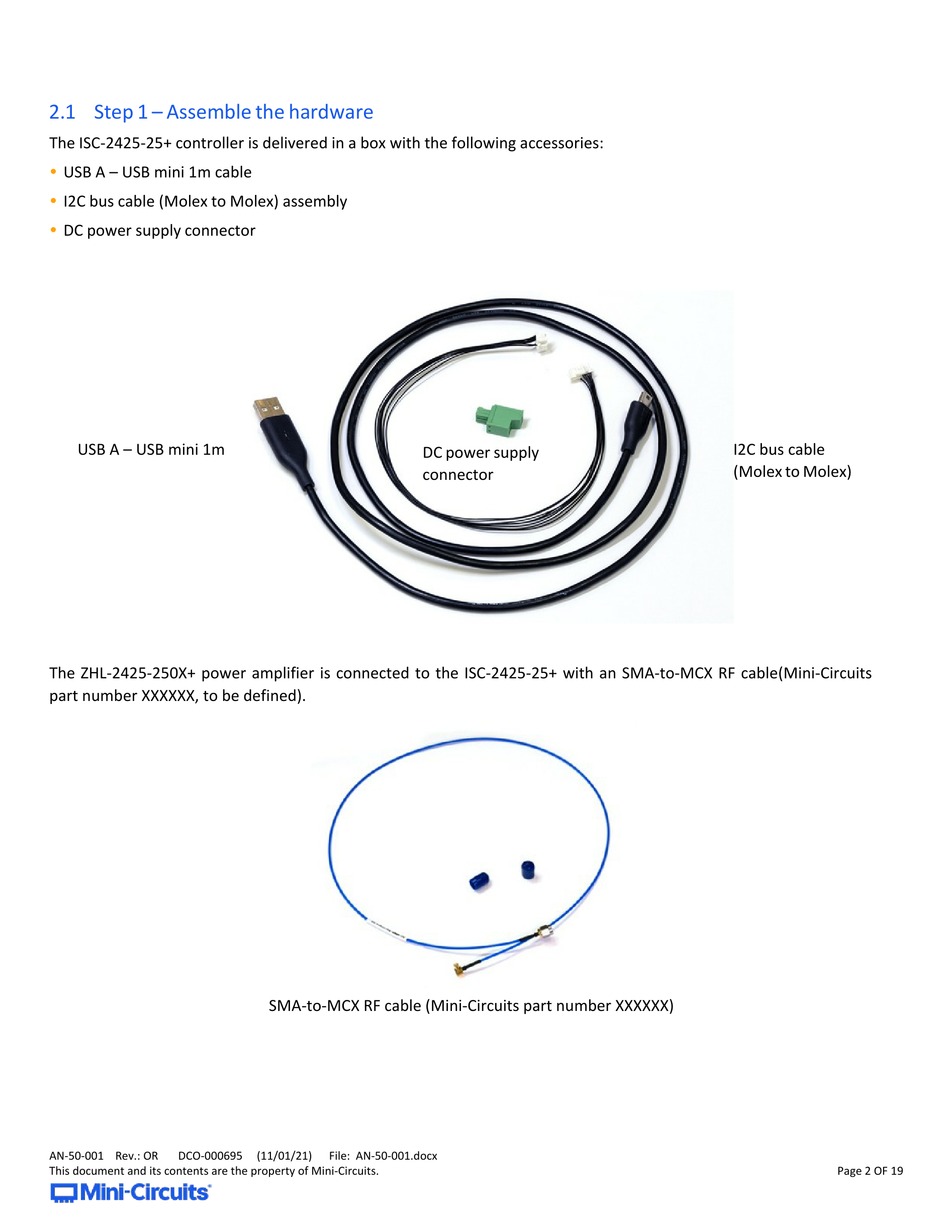

The ISC-2425-25+ controller is delivered in a box with the following accessories:
USB A – USB mini 1m cable

I2C bus cable (Molex to Molex) assembly

DC power supply connector

USB A – USB mini 1m
The ZHL-2425-250X+ power amplifier is connected to the ISC-2425-25+ with an SMA-to-MCX RF cable (Mini-Circuits
part number XXXXXX, to be defined).
AN-50-001 Rev.: OR DCO-000695
This document and its contents are the property of Mini-Circuits.
DC power supply
connector
SMA-to-MCX RF cable (Mini-Circuits part number XXXXXX)
(11/01/21) File: AN-50-001.docx
I2C bus cable
(Molex to Molex)
