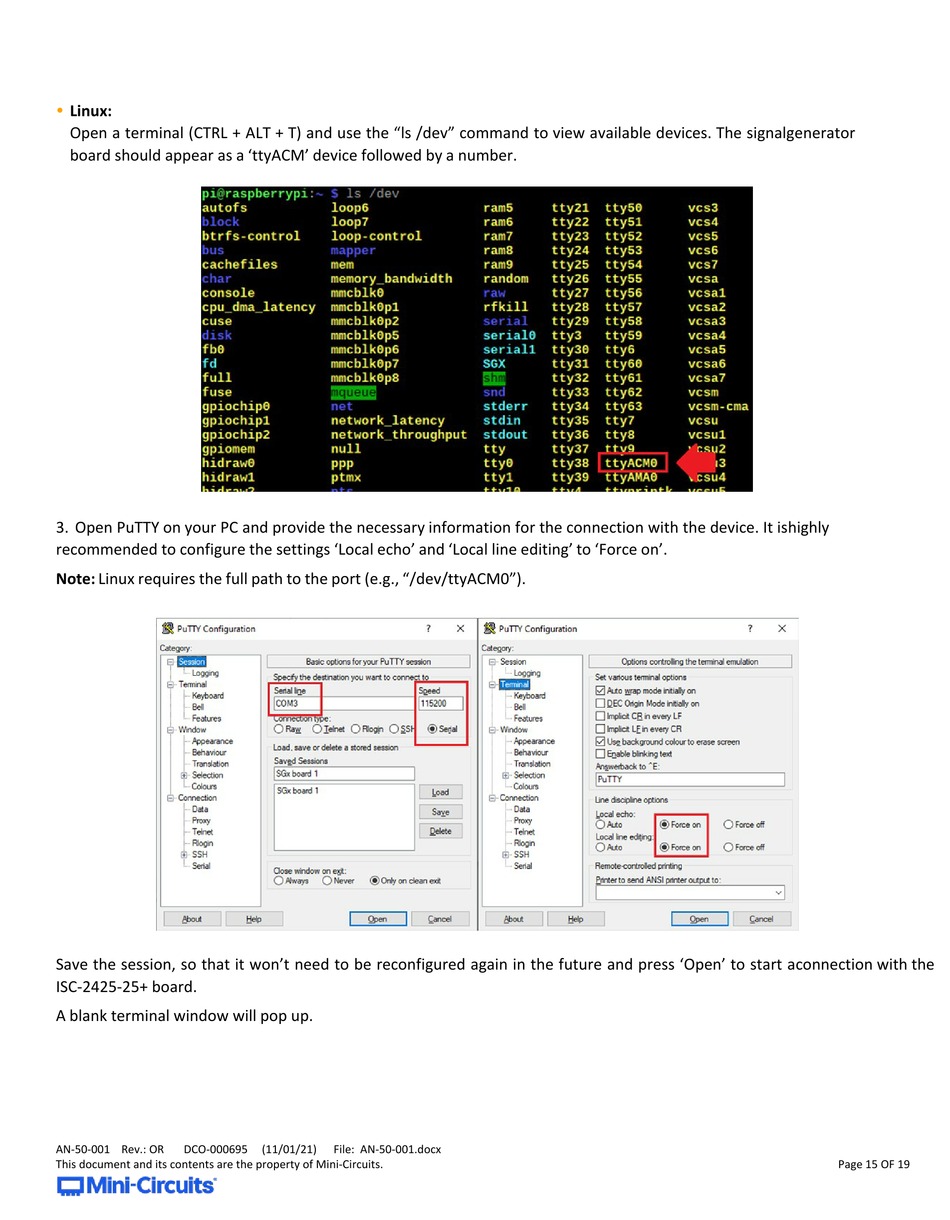

Linux:

Open a terminal (CTRL + ALT + T) and use the "ls /dev" command to view available devices. The signal generator
board should appear as a 'ttyACM' device followed by a number.
3. Open PuTTY on your PC and provide the necessary information for the connection with the device. It is highly
recommended to configure the settings 'Local echo' and 'Local line editing' to 'Force on'.
Note: Linux requires the full path to the port (e.g., "/dev/ttyACM0").
Save the session, so that it won't need to be reconfigured again in the future and press 'Open' to start a connection with the
ISC-2425-25+ board.
A blank terminal window will pop up.
