Though this information is very useful, it alone is not sufficient to properly optimize the process. To find out the
frequency at which to heat (i.e., the match), a frequency sweep should be performed to assess the S11 parameter
across a pre-defined frequency band. This is done by briefly using low RF power and determining the S11 parameter at
various frequencies over a given frequency range. The resulting data can be formatted into a graph that provides insight
into the possible match within the tested frequency range. See figure 1 below.

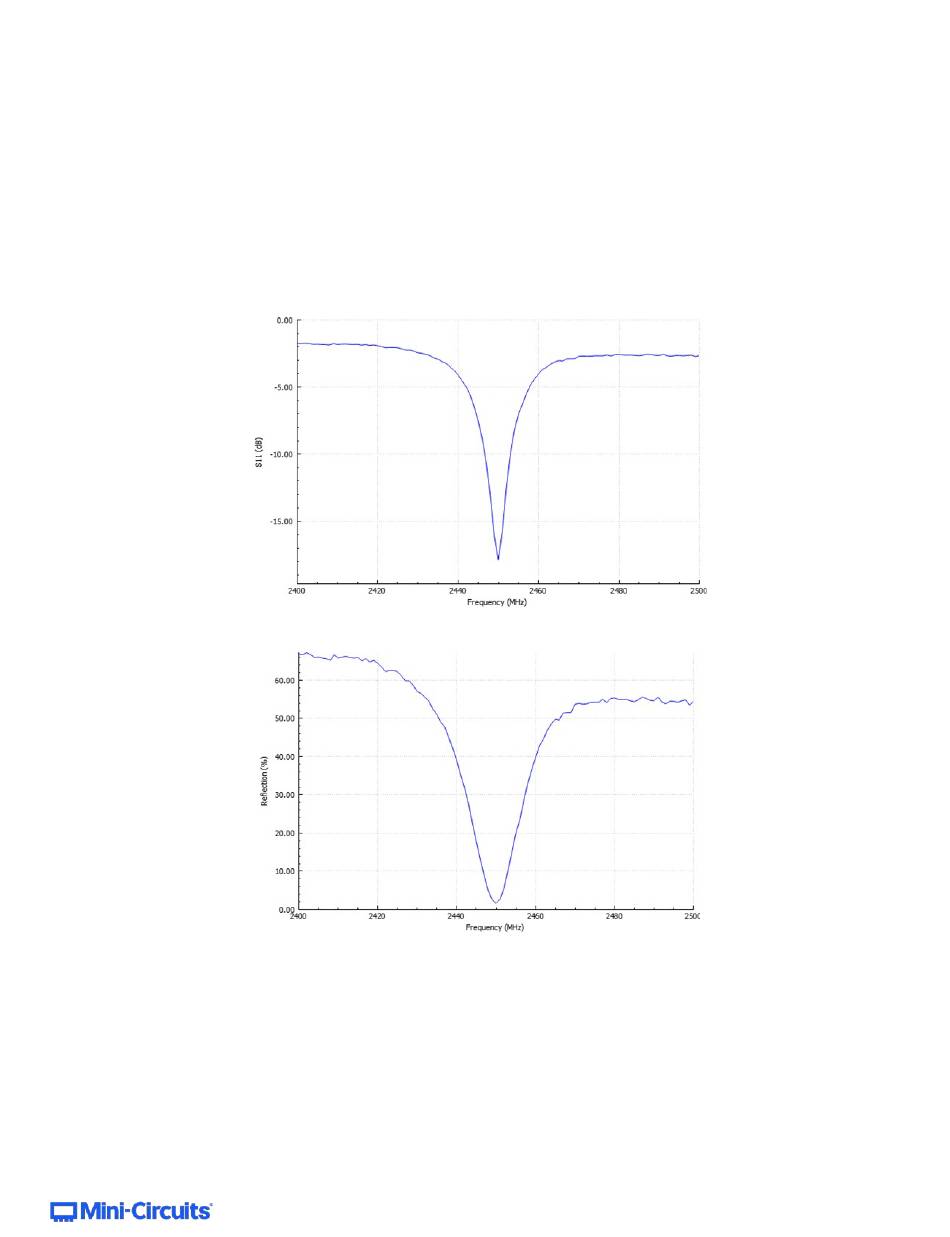

In the example graph below, a 'minimum' S11 point can be seen around the 2450MHz range, this is the frequency where
the reflection is closest to 0 and the RF energy delivery into the load/process would be the most efficient.
Figure 1: S11 (dB) vs frequency & Reflection (%) vs Frequency
