Now that the best match frequency has been found, the frequency of the ISC-2425-25+ board needs to be changed to
2470MHz.
Go to the home menu and set the frequency to 2470MHz.

2.6 Step 5 – Configure power
For this example, the chosen material will be heated with maximum available power. The Mini-Circuits ZHL-2425-
250X+ PA is a 250W model, so 250W output power will be used.
Set the power to 250W.

2.7 Step 6 – Start heating
With the right frequency and power configured, the RF output may now be switched on.
Note: Before turning on the RF output, ensure the RF cannot leak from the cavity. Press the
RF ON/OFF button to enable RF.
AN-50-001 Rev.: OR DCO-000695
This document and its contents are the property of Mini-Circuits.

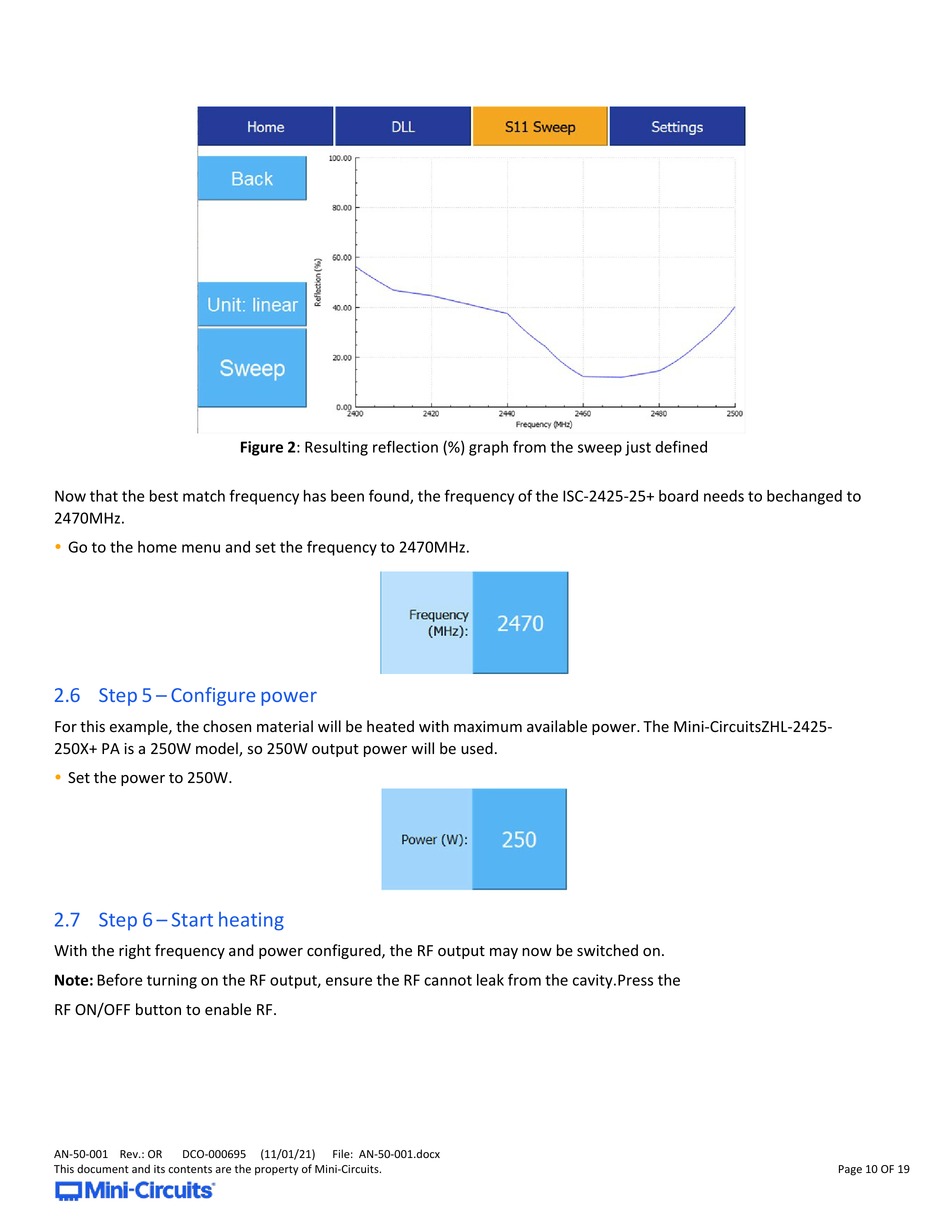

Figure 2: Resulting reflection (%) graph from the sweep just defined
