User, Installation and Maintenance Manual

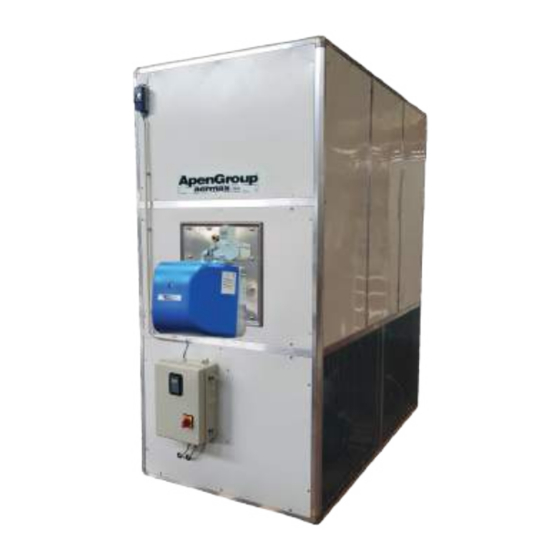

PK series floor standing warm air heater with CPU-PLUS
ErP
2021
Compliant
EU/2016/2281
Capacities from 14 to 1170 kW
Efficiency up to 101%
Reduction of
Thermal Stratification
code HG0320.00GB ed.F-2203
1
APEN GROUP SPA reserves the right to make changes deemed to be required to its products or documentation
