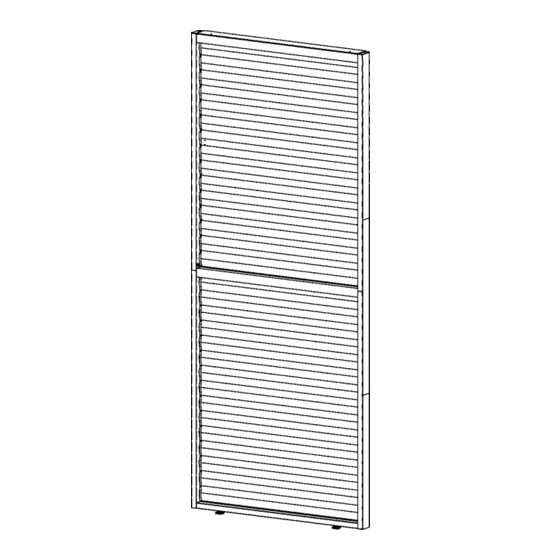

- Page 1 Manual Louver Wall for Pergola Gazebo San Pablo 10-03-2023...
- Page 2 Alu. turnover louvered wall...
- Page 3 ＠ 4 pcs ［ ( :..\ \。 。 。 。 。 。 心 2 pcs 4 pcs ＠ ＼ ＼ © 皿 4 pcs ［ ＼ ＼ \。 2 pcs st4. 2xl0 4 pcs 叮...
-
Page 4: Installation
Installation 2PCS ｘ２ ｘ２ ｘ６... - Page 5 60 pcs ｘ６０ Tips: When installing the sleeve④, it must be attached to the frame. Make sure it is flat and not wraped.
- Page 7 Insert the fixed shaft end of the louver into the shaft hole of side beam first ｘ３０ TIPS: WHEN INSTALL THESE 4 LOUVERS, PLEASE PAY ATTENTION TO THE DIRECTION OF THE SCREW HOLE OF THE COVER TO FACILITATE THE INSTALLATION OF THE CONNECTING ROD.
- Page 8 Spring retractable inside the shaft Press the pin first Move to the sleeve...
- Page 9 NOTE: WHEN INSTALLING THE DAMPING DEVICE, THE TIGHTNESS OF THIS SCREW NEEDS TO BE ADJUSTED DURING INSTALLATION, SO AS TO AVIOD THE SITUATION THAT THE LOUVER DOES NOT ROTATE DUE TO THE INCREASE OF THE DAMPING.
- Page 10 DO NOT OVERTIGHTEN THE SCREW OR THE LOUVERS MAY NOT WORK SMOOTHLY. st2.2x14...
- Page 11 ｘ6...
- Page 12 Close the louver when install the locker locker open, louver could be moved Tips: when installing the locker, it is necessary to locker closed, louver could not be adjust the distance with the moved connecting rod, so that when the lock is closed, there is a damping with the connecting rod, so as to achieve the locking...
- Page 14 Install the louvered wall on the pergola x2 ) for 90x218 x3) for 123x218 Outside Inside...
- Page 16 If this product is to be installed with one pc on each side, you need to replace the screw M5x12 with st4.2x38 which to be fixed to the column to prevent shaking. column column column column...
-
