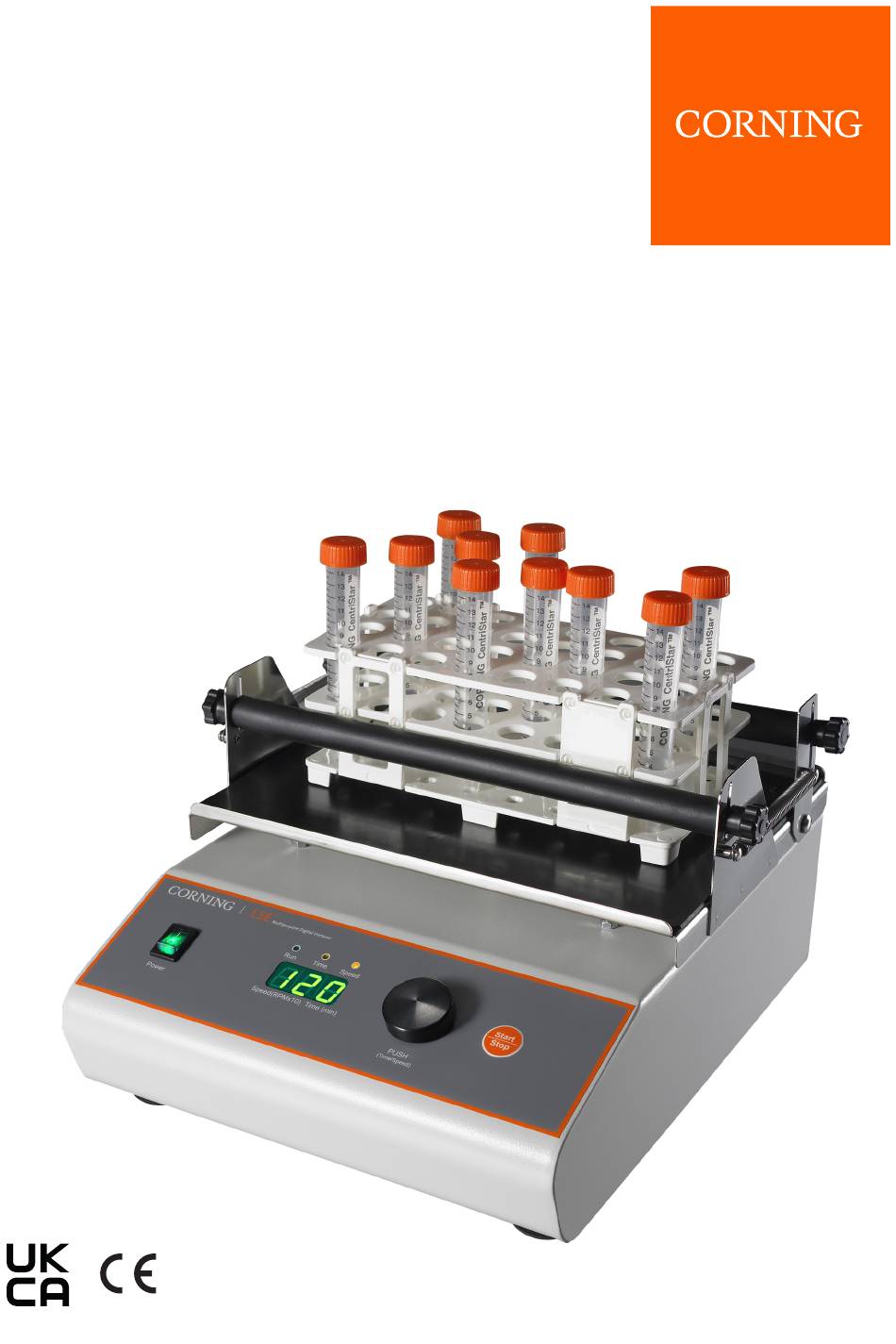

- Page 1 Corning ® ™ Digital Vortexer Instruction Manual Catalog Numbers: 6709, 120V 6710, 230V...
-
Page 2: Table Of Contents
Table of Contents 1.0 Overview ..............1 2.0 Safety Precautions . -
Page 3: Overview
1.0 Overview The Corning® LSE™ Digital Vortexer is intended for vortexing microliter plates, tubes, bottles, flasks, dishes, and other laboratory vessels. The vortexer is driven by asynchronous motors, which enable silent operation and constant shaking speed, independent of the load or power supply fluctuations. -
Page 4: Installation
(Basic, class B), and it is in compliance with IEC 61326-1:2020. The device may experience a restart during overvoltage events (surges) or voltage interruptions in mains power supply. The Corning® LSE™ Digital Vortexer is designed to be safe at least when operated under the following conditions: Indoor use ... -
Page 5: Selecting The Location
48011 Platform with non-slip rubber mat 48012 Spring loaded platform for flasks, bottles, or tube racks The Corning® LSE Digital Vortexer requires the installation of the selected platform. Please follow the instructions below for installing the platform. Sliding Stabilizers Grease Before you attach the platform, make sure that the slide stabilizers are properly fastened, adjusted, and lubricated with the included grease. -
Page 6: Operating Instructions
The flat mat platform has a circle cut-out in the rubber and screw holes in the center. Remove the cut-out rubber circle and screw down the 4 screws onto the vortexer. After attaching the platform, remove the non-adhesive backing paper on the rubber circle, and paste it back into place. The grease is used to lubricate the slide stabilizers. -
Page 7: Basic Operation
5.2 Basic Operation Time Speed Start ENCODER Stop Power Speed(RPMx10) Time (min) PUSH (Time/Speed) Press the Power switch on the control panel. The vortexer automatically detects supply frequency of 50 or 60Hz, and displays F50 or F60. Then the display switches to show the set Time and illuminates the Time light. - Page 8 Time Speed Start ENCODER Stop Power Speed(RPMx10) Time (min) PUSH (Time/Speed) RPM signal light is on. By rotating the encoder knob right (+) or left (-) the desired RPM can be selected: 34 = 340 rpm • 120 = 1,200 rpm •...
-
Page 9: Additional Operations
Time Speed Start ENCODER Stop Power Speed(RPMx10) Time (min) PUSH (Time/Speed) When the run time has elapsed or when you press the Start/Stop button, End will show on the display and the Run light will flash. When the vortexer completely stops the set speed and time will return to the last programmed values. -
Page 10: Troubleshooting
IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. Corning’s sole obligation shall be to repair or replace, at its option, any product or part thereof that proves defective in material or workmanship within the warranty period, provided the purchaser notifies Corning of any such defect. -
Page 11: Equipment Disposal
This warranty gives you specific legal rights. You may have other rights which vary from state to state. No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the period of this warranty. - Page 12 Taiwan t 55 (11) 3089-7400 t 886 2-2716-0338 Mexico t (52-81) 8158-8400 For a listing of trademarks, visit www.corning.com/clstrademarks. All other trademarks are the property of their respective owners. © 2018, 2023 Corning Incorporated. All rights reserved. 3/23 CLS-AN-491/11319-30544 REV2...
