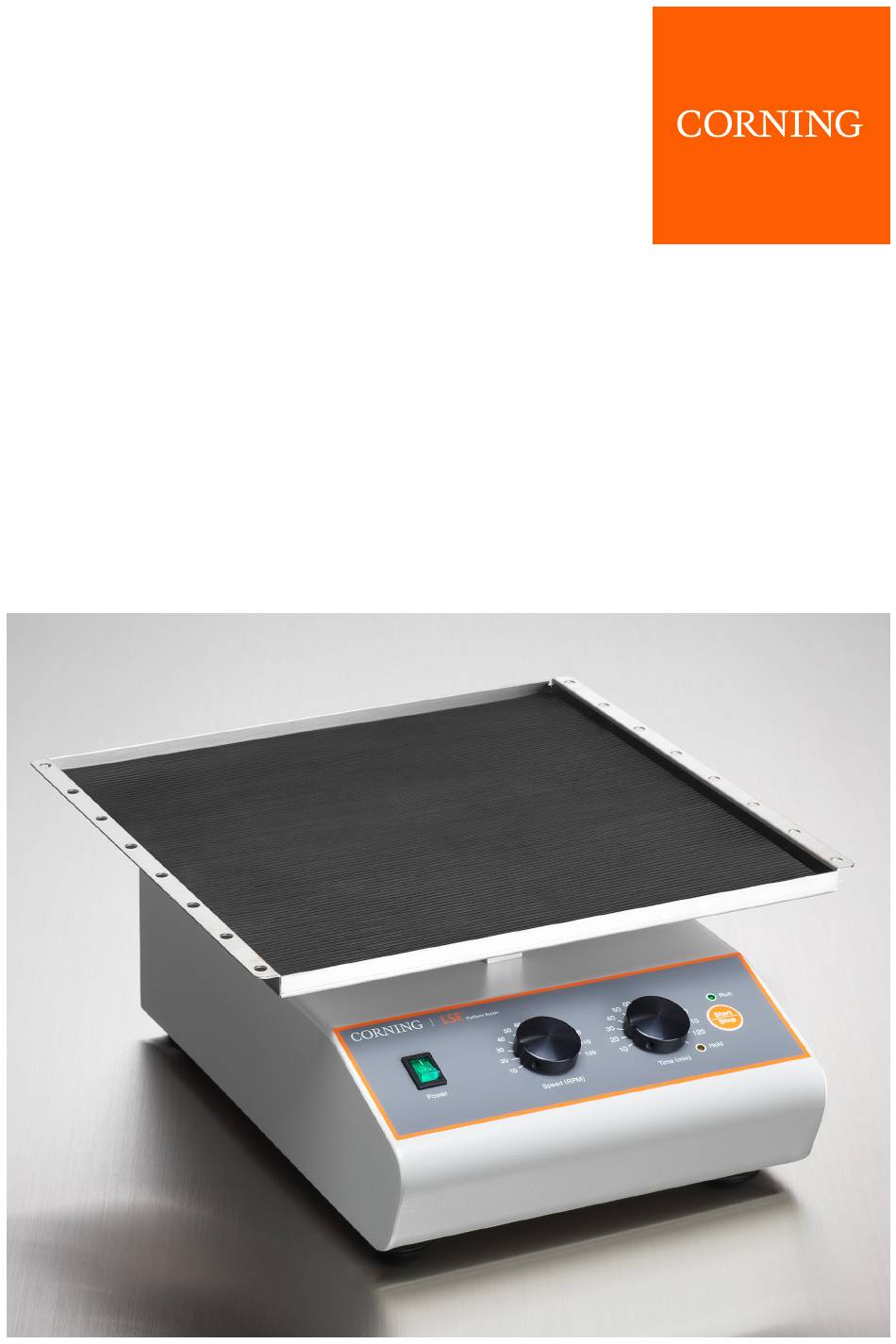

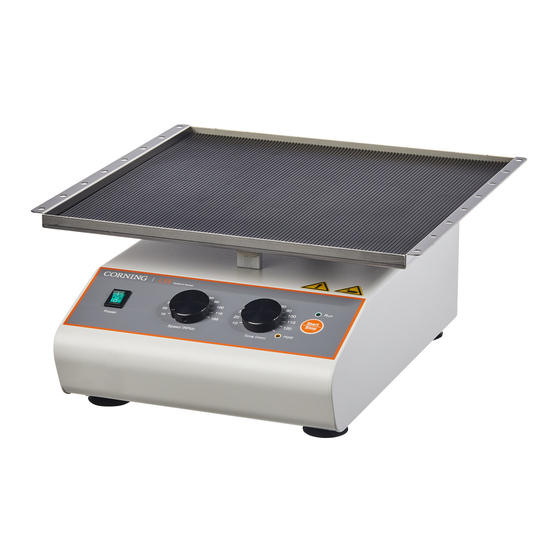

- Page 1 ® ™ Corning Platform Rockers Instruction Manual Catalog Numbers: 6703 Corning LSE Platform Rocker, 115V 6704 Corning LSE Platform Rocker, 230V 6705 Corning LSE Platform Rocker, double platform, 115V 6706 Corning LSE Platform Rocker, double platform, 230V...
- Page 2 C O R N I N G L S E P L AT F O R M R O C K E R S...
-
Page 3: Table Of Contents
Table of Contents 1. General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2. -
Page 4: General Specifications
1.0 General Specifications Speed Settings 5 to 120 tilts/minute Timer 0 to 2 hours or continuous Motion Rocking Tilt Angle Fixed 7° Maximum Load 11 lbs ./5 kg Ambient operation Range +4°C to 70°C Dimensions 12 .8 x 14 .2 x 5 .7 in . (32 .5 x 36 x 14 .5 cm) Weight 11 .7 lbs ./ 5 .3 kg Electrical... -
Page 5: Installation Of The Platform Rocker
3.0 Installation of the Platform Rocker 3.1 Unpacking Before starting the installation, carefully examine the rocker for possible damage or missing parts . Open the box and carefully remove the padding . Check that the rocker has not been visibly damaged during transportation . Keep the packing material until you ensure that the rocker works properly . -
Page 6: Attaching The Power Cord
3.3 Attaching the Power Cord Connect the main power cord to the rocker and then connect the plug end of the cord to a grounded wall socket . Avoid lines to which powerful electric motors, refrigerators, and similar devices are connected . Be careful when you plug the cord to a grounded wall socket! Do not touch plug with wet hands! Do not pull the plug by the cord! 3.4 Installing Double Stacking Platform... -
Page 7: Controls
4.0 Controls POWER switch – Turns the rocker ON (power switch illuminates) or OFF SPEED potentiometer – Sets the rocker speed TIME potentiometer – Sets the time of the rocker HOLD yellow light – Illuminates when rocker is set for continuous running START/STOP button –... -
Page 8: Troubleshooting Guide
5.0 Troubleshooting Guide Be sure to disconnect the rocker from the main power source immediately in case of any signs of malfunction and contact Corning Customer service at 800 .492 .1110 or 978 .442 .2200 . Problem Solution POWER switch does not light up Check the power connection . -
Page 9: Product Disposal
According to Directive 2012/19/EU of the European Parliament and Council of 4th July 2012 on waste and electronic equipment (WEEE) as amended, the Corning® LSE Platform Rockers is marked with the crossed- out wheeled bin and must not be disposed of with domestic waste . -
Page 10: Limited Warranty
CORNING DISCLAIMS ALL OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE . Corning’s sole obligation shall be to repair or replace, at its option, any product or part thereof that proves defective in material or workmanship within the warranty period, provided the purchaser notifies Corning of any such defect . - Page 11 Instruction Manual...
- Page 12 Warranty/Disclaimer: Unless otherwise specified, all products are for research use only . Not intended for use in diagnostic or therapeutic procedures . Not for use in humans . Corning Life Sciences makes no claims regarding the performance of these products for clinical or diagnostic applications .
