Summary of Contents for CORNING LSE 6765-HS

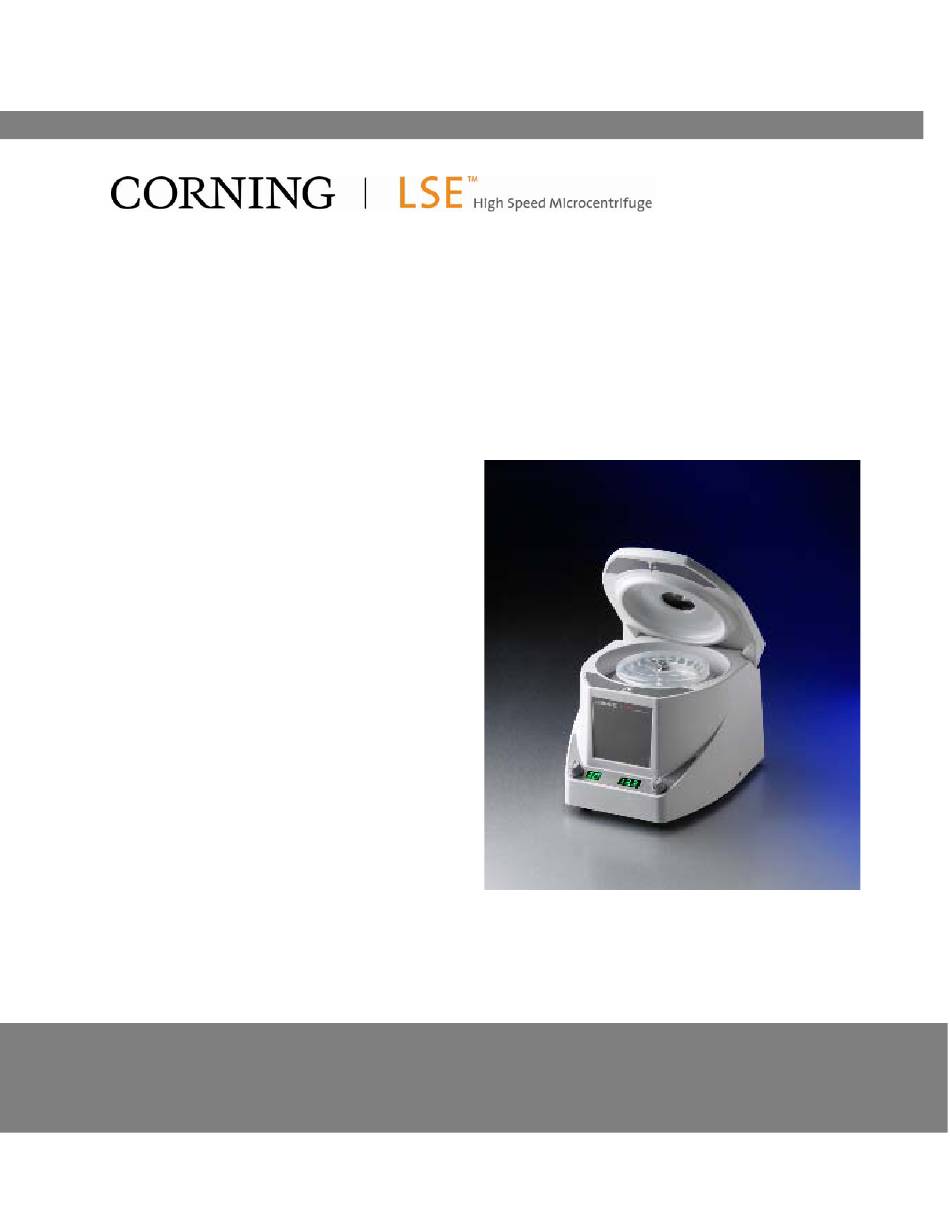

- Page 1 INSTRUCTION MANUAL Models: 6765-HS -- 120V US 6766-HS -- 230V EU 6767-HS -- 230V UK 6768-HS -- 100V JP CLS-EQ-102 March 2010, Document 01 , Revision 01...
- Page 2 Warnings The following precautions should be taken when operating or working near the Corning LSE High Speed Microcentrifuge: NEVER use the centrifuge in any manner not specified in these instructions. NEVER operate the centrifuge without a rotor properly attached to the shaft.
-
Page 3: Table Of Contents
Contents General Information Description Safety precautions Technical data Accessories supplied with unit Warranty Installation Unpacking the centrifuge Required space Installing the centrifuge Installing the Rotor Rotors and accessories Rotor maintenance Removing and installing the angle rotor Loading the rotor Overloading rotors Operation Attaching rotor lid Closing the lid... -
Page 4: General Information

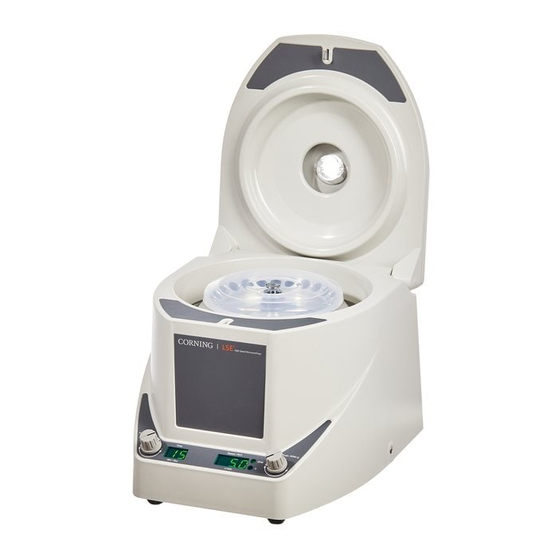

The Corning LSE High Speed Microcentrifuge is supplied with a 24 x 1.5/2.0 mL rotor for micro samples. Adapters are available for tubes smaller than 1.5 mL. The Corning LSE High Speed Microcentrifuge reaches speeds of up to 13,300 rpm/16,300 x g. -
Page 5: Technical Data
Corning reserves the right to make technical modifications. Please see the complete limited warranty statement on page 12 2. Installation 2.1 Unpacking the centrifuge... -
Page 6: Required Space
3. Installation of rotors and rotor maintenance 3.1 Rotors and accessories The following accessories are included or available for the Corning LSE High Speed Microcentrifuge: Included: Angle rotor for 24 x 1.5 mL tubes Tube measurement 1.5 mL / 2.0 mL (10 x 40 mm) -
Page 7: Rotor Maintenance
3.3 Removing and installing the angle rotor The Corning LSE High Speed Microcentrifuge comes complete with a standard 24 place rotor installed. To remove the rotor for cleaning, remove the rotor securing... -
Page 8: Overloading Rotors
Make sure that the rotor lid snaps securely into place, by pressing down on center catch. 4.2 Closing the lid Close the centrifuge lid. The Corning LSE Microcentrifuge has a lid lock that activates only when a run is started. 4.3 Lid release The lid will remain locked during a centrifuge run. -
Page 9: Lid Lock
WARNING: Do not attempt to open the lid of any centrifuge until the rotor has come to a complete stop. In the event of a power failure or malfunction, it may be necessary to open the lid manually. Disconnect the power cord from the wall socket. Remove the plastic plug, located on the left side of the unit. -
Page 10: Service And Maintenance
High Speed Microcentrifuge control panel layout 5. Service and Maintenance 5.1 Centrifuge service The brushless motor in the Corning LSE High Speed Microcentrifuge requires no routine maintenance. Any required service should be performed by authorized, qualified personnel only. Repairs performed by unauthorized personnel may void the warranty. -
Page 11: Troubleshooting
6. Troubleshooting Guide Please refer to this guide before calling for service. Centrifuge will not start Possible reason: No power supply Solution: Check that power is being supplied to the outlet Check that the power cord is plugged into both the wall outlet and the back of the centrifuge Check that power cord is not damaged Lid lock will not release... -
Page 12: Where To Call
Equipment sent in without out prior authorization will be returned at the customer’s expense. When returning a unit to Corning for service, it should be sent in the original packaging. If this is not possible, be sure that the unit is sufficiently packed. Any damage resulting from improper packaging is the responsibility of the customer. -
Page 13: Warranty Statement
This warranty gives you specific legal rights. You may have other rights which vary from state to state. No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the period of this warranty. -
Page 14: Declaration Of Conformity Statement
Declaration of Conformity This equipment has been tested and found Corning Life Sciences hereby confirms that the product to comply with the limits for a Class A digital device, Corning LSE High Speed Microcentrifuge pursuant to both Part 15 of the FCC Rules... -
Page 15: Equipment Disposal
It is the product user’s responsibility to decontaminate waste equipment from biological, chemical, and/or radiological hazards prior to disposal. Additional information pertaining to the disposal of Corning per the WEEE Directive can be obtained at www.corning.com/weee. - Page 16 Singapore LATIN AMERICA t 65 6733‐6511 Brasil f 65 6861‐2913 t (55‐11) 3089‐7419 f (55‐11) 3167‐0700 Taiwan t 886‐2‐2716‐0338 Mexico f 886 2‐2716‐0339 t (52‐81)8158‐8400 f (52‐81) 8313‐8589 Corning is a registered trademark of Corning Incorporated, Corning, NY is a trademark of Corning Incorporated, Corning, NY Corning Incorporated, One Riverfront Plaza, Corning, NY 14831‐0001 2010. All rights reserved Printed in U.S.A.
