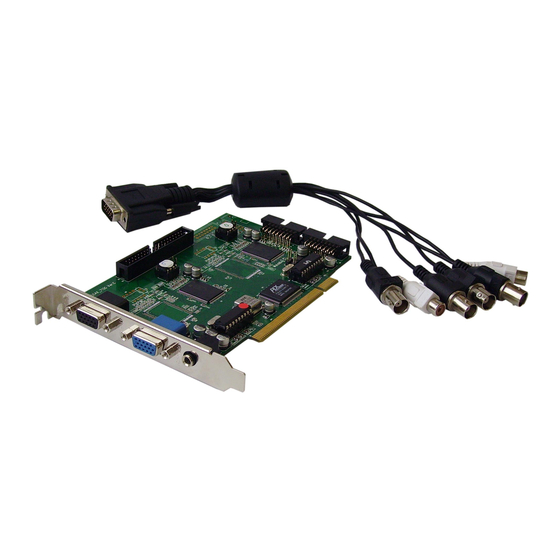

- Page 1 LevelOne FCS-8004 4-Port Hybrid Capture Card User Manual Ver 1.0.0 - 0609...
- Page 2 Table of Contents Package Contents-------------------------------------------------------------------------P.2 System Requirements--------------------------------------------------------------------P.2 Physical Description---------------------------------------------------------------------- P.2 Install the FCS-8004 to your PC------------------------------------------------------P.3 Install the driver of FCS-8004----------------------------------------------------------P.4 Check DirectX version------------------------------------------------------------------- P.5 Install IP CamSecure--------------------------------------------------------------------- P.5...
- Page 3 Package Contents FCS-8004 Audio/Video Cables CD Manual / Driver / Utility Quick Installation Guide System Requirements FCS-8004 Intel P4 2.4 GHz 512 MB Mother- Intel 845 or 865 chip, Intel Chipset recommended board Display ATI Radeon 9200, nVIDIA GeForce FX-5200, Intel 845G/865G, or above...
- Page 4 Install the FCS-8004 to your PC Step1: Insert the card onto an empty PCI slot. Connect the Audio/Video cables to the connectors in the same color. Step 2: Turn on your PC and start Windows. Connect the Audio/Video Cable There are two audio and four video input connectors on the Audio/Video Cable.
- Page 5 Install the driver of FCS-8004 Insert the included CD into CD-ROM.The setup page should load automatically. If it does not, please select your CD-ROM drive manually to run autorun.exe. Click”Install Software” Click“Capture Card’s driver” Click “Start” to install the driver...
- Page 6 Click “OK” to complete the driver installation. After driver being installed, please restart your PC. Check DirectX version Run dxdiag.exe from start menu ‘Start-> Run’ to check your DirectX version. If the installed version is less than 9.0, install DirectX 9.0 from the CD-ROM directx9/ directory.
- Page 7 Click”IP CamSecure” Custom Setup Type: You may install the system to the directory of your preference and choose which feature(s) you want to install to the PC. Hint: You may, for instance, install only Playback and/or LiveView on the PC at home or other remote site from which you do not install the camera but are going to watch them remotely.
