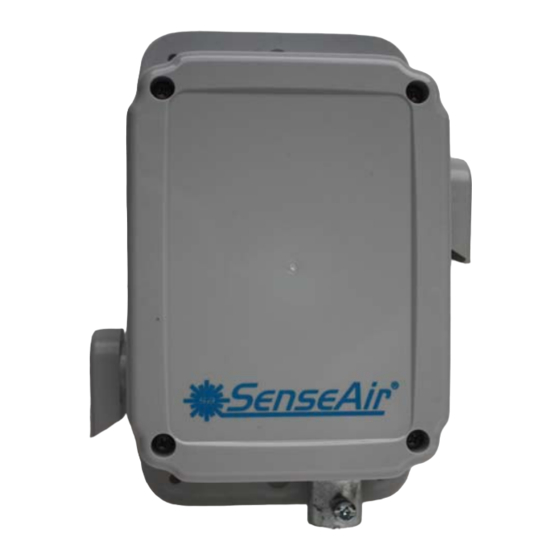

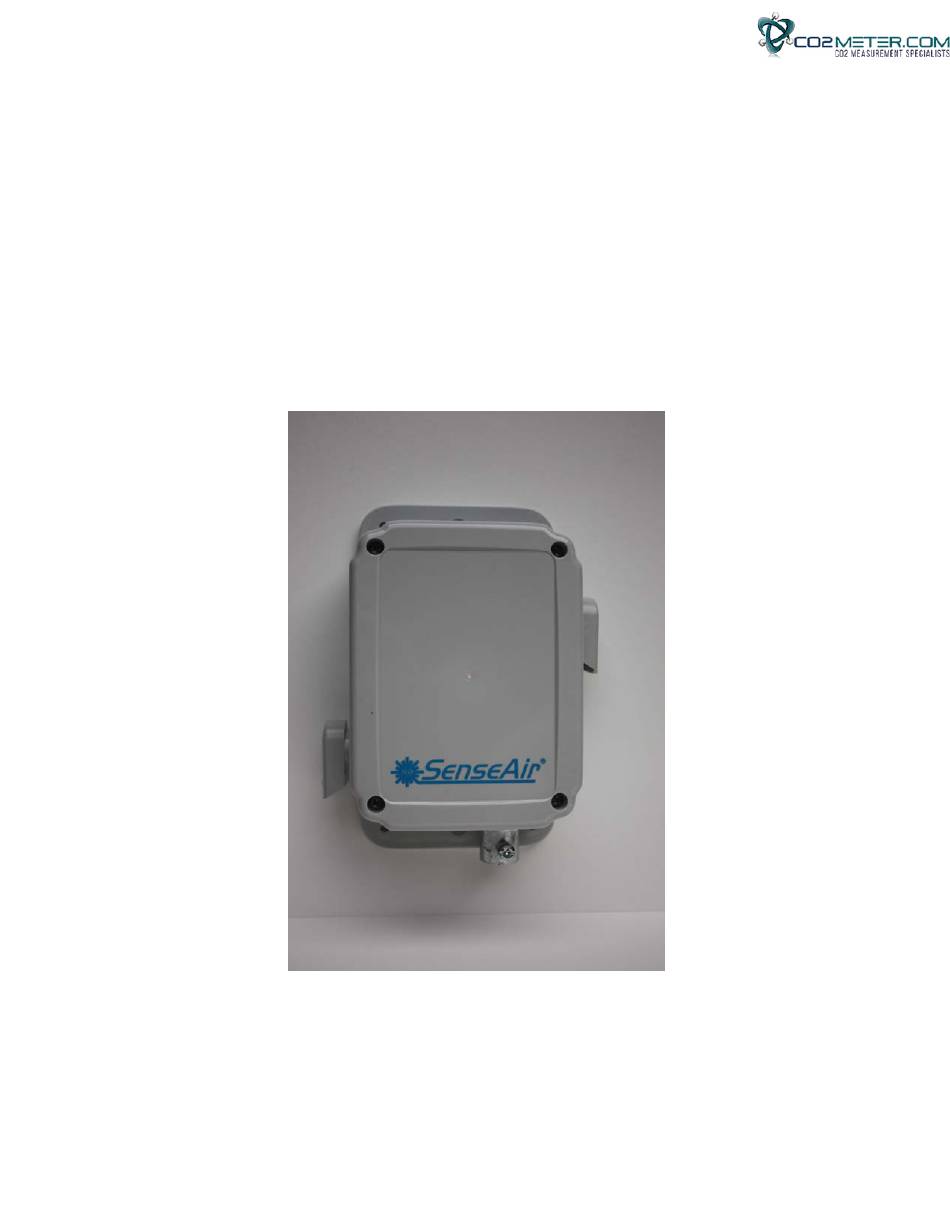

- Page 1 Installation Manual eSENSE Outdoor ™ transmitter with heater and inline thermostat mounted in IP65 housing eSENSE Outdoor Product # SE-0036...
- Page 2 eSENSE Outdoor PCB is housed in an IP65 housing with breathers to support the flow of outdoor air. If for some reason the PCB must be removed care must be taken to protect from electrostatic discharge! Normally, removing the PCB is NOT required.
- Page 4 Connect the power after mounting. ™ eSENSE Outdoor carbon dioxide transmitter Technical Specifications General Performance Compliance with ..........EMC directive 89/336/EEC. RoHS directive 2002/95/EG Operating Temperature Range ......-22 to +115 °F Storage Temperature Range ......-4 to +122 °F Operating Humidity Range .......
- Page 5 Current Voltage Figure 1 Picture of the PCB with the jumper for setting Out(2) to current output (left position) or voltage output (right position) Electrical connections The power supply must connected to is considered as system ground. The same ground reference has to be used for the eSENSE unit and for the DDC/signal receiver.
- Page 6 Support The quickest way to obtain technical support is via email. Please send all support inquires to support@co2meter.com. Please include a clear, concise definition of the problem and any relevant troubleshooting information or steps taken so far, so we can duplicate the problem and quickly respond to your inquiry.
- Page 7 If we determine that the product failed because of improper use (water damage, dropping, tampering, electrical damage etc.), or if it is beyond the warranty date, we will inform you of the cost to fix or replace the product. For more information visit our website: www.CO2Meter.com/pages/faq Contact Us We are here to help! For information or technical support, please contact us.
