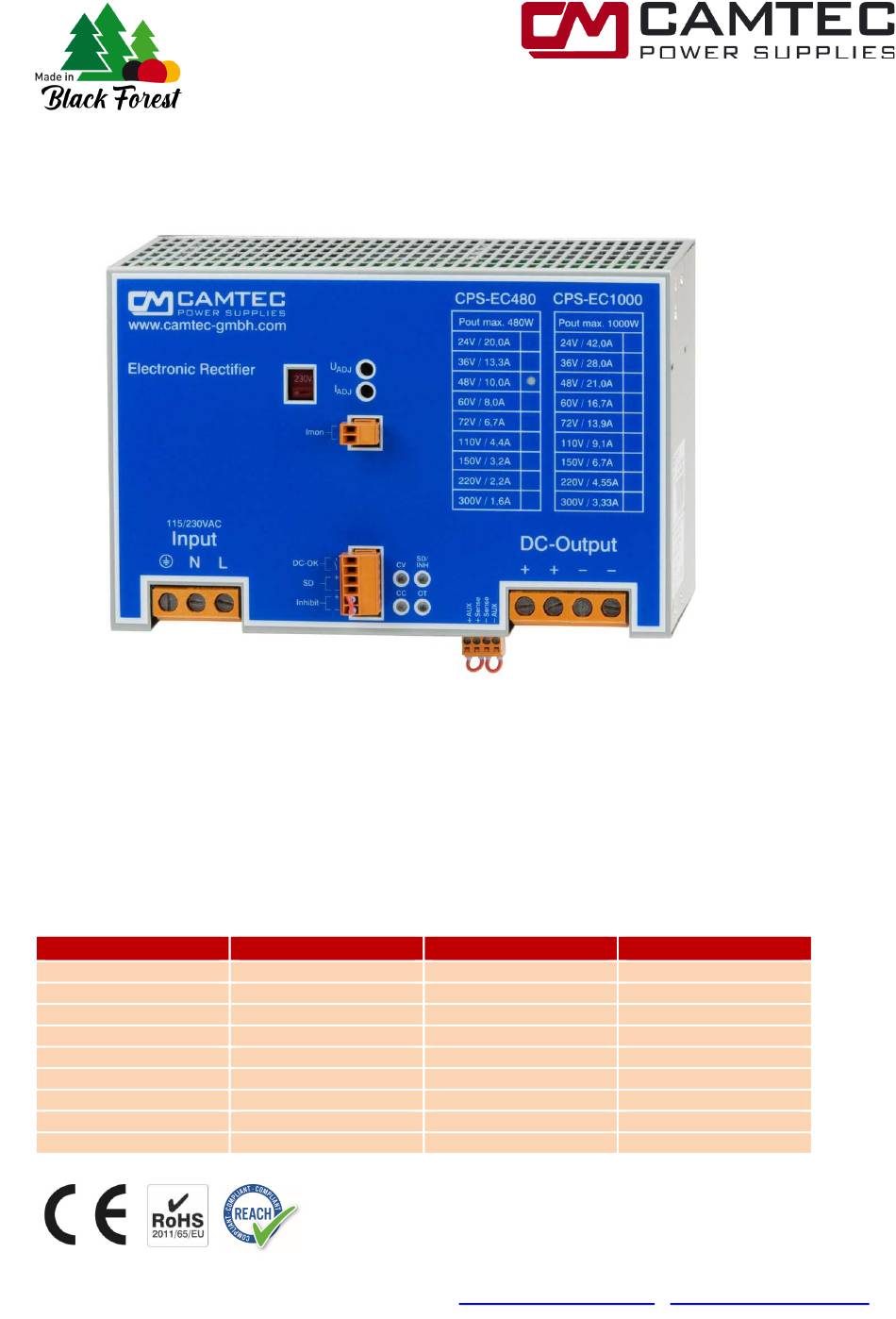

CPS-EC480

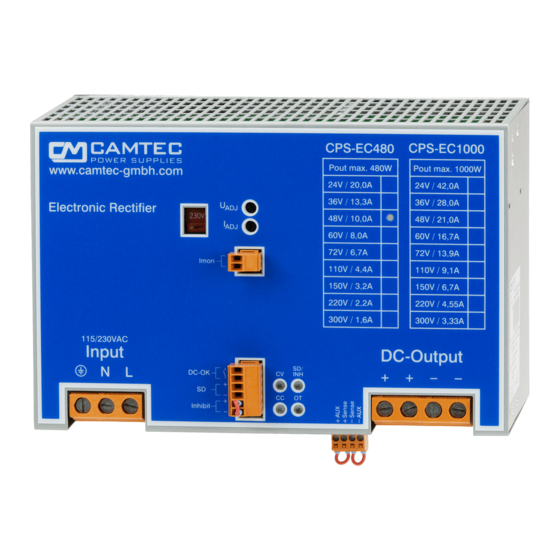

DIN-Rail Battery Charger, C/V Adjustable Industrial Power
Specification:
•
Real time output current monitoring
•
Precision potentiometer f. voltage & current
•
Power Good Relay AC & DC-ok
•
C/V curve down to 0V, no fold back
•
Sense control 1V per load line
•
Electronic inrush current limiter 13.8Apeak
•
Inhibit function (Interlock)
•
External shutdown
•
Efficiency up to 92%
Models
CPS-EC480.024
CPS-EC480.036
CPS-EC480.048
CPS-EC480.060
CPS-EC480.072
CPS-EC480.110
CPS-EC480.150
CPS-EC480.220
CPS-EC480.300
Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany
Phone +49(721)46596-0 - Fax +49(721)46596-77 -
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
480W Precision DC Rectifier
Voltage
24Vdc
36Vdc
48Vdc
60Vdc
72Vdc
110Vdc
150Vdc
220Vdc
300Vdc
•
Precise dynamic response to load change
•
Designed for long life under full stress
•
Strong input filters
•
Hold up time >50ms
•
Soft start & auto-recovery
•
High reliability, shock & vibration proof
•
EMC meets CE norm class B
•
Overload and short circuit protection
•
Large terminals 4x AWG22 – AWG6 (0,5 – 16mm²)
Voltage setting
24 – 30Vdc
36 – 45Vdc
48 – 58Vdc
60 – 75Vdc
72 – 90Vdc
110 – 137,5Vdc
132 – 180Vdc
220 – 264Vdc
264 – 360Vdc
www.camtec-gmbh.com
CPS-EC480(R2) MANUAL
Current setting
10 – 21A
6,6 – 14A
5,0 – 10,5A
4,0 – 8,4A
3,4 – 7A
2,2 – 4,6A
1,6 – 3,3A
1,1 – 2,3A
0,8 – 1,7A
P.1/12 (02/2017-01-3)
-
info@camtec-gmbh.com
Advertisement
Related Manuals for Camtec CPS-EC480
Summary of Contents for Camtec CPS-EC480
- Page 1 1,1 – 2,3A CPS-EC480.300 300Vdc 264 – 360Vdc 0,8 – 1,7A Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.1/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
-
Page 2: Technical Concept
CPS-EC480(R2) MANUAL Technical Concept The Camtec CPS-EC series is a high precision switch mode power supply for an upscale demand. The unit is C/V adjustable. It is engineered and manufactured by CAMTEC in Germany. The designed meets challenging applications like railway, complex drives, battery charging for DC-UPS, test-stands, machine-building and professional LED lighting. -
Page 3: Technical Data Table
Input Screw Terminal 3x AWG22 – AWG6 / 0,5 – 16mm² (L,N,PE) DC Terminals Output Screw Terminal 4x AWG22 – AWG6 / 0,5 – 16mm² (+ + / - - ) Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.3/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com... - Page 4 Power Good Relay. We guarantee the above given adjustment ranges with a tolerance of -5/0% for the lower margin and 0/+5% for the upper margin. Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.4/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com...
- Page 5 WARNING! It is prohibited to apply an external voltage to the inhibit connection! The CPS-EC unit can be damaged seriously! Always use passive mechanical contacts from switchers or relays. Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.5/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com...
- Page 6 Inhibit Open Shut Down Constant [V] Constant [C] SD/INH Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.6/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
- Page 7 The quickest recommended MCB is B-type 6A (230Vac) /12A (115Vac). The smallest power relay or a contactor in front of the CPS-EC480 must cope 13,8A peak current. The inrush duration is 400ms and the overall power up time of the unit is 500ms. See the below drawings for technical information.
- Page 8 L - wire DC - voltage = Inhibit Connection DC - voltage DC-ok = power good relay Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.8/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
- Page 9 35mm DIN-Rail brackets according to EN60275. It is easy to mount/dismount while snaping it onto the 35mm DIN-Rail - no tools are necessary. A hard mount backplate (option) is available as well. Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.9/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com...
- Page 10 35mm DIN-Rail - no tools necessary. A wall mount back plate (option) is available, too. It is not allowed to install the CPS-EC480 in other mounting direction then as shown in the drawings. Back Plate Option / DIN-Rail Standard (The CPS-EC1500 is always delivered for DIN-rail mount, the back-plate is an optional part that shall be mounted from the customer.
-
Page 11: Ordering Information
300V 3041104009CA Back Plate Kit Base Plate / Hart mount plate kit including screws 2201002001CA Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.11/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com info@camtec-gmbh.com (Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death) - Page 12 All parameters base on 15 minutes run-in @ full load / 25°C / 230Vac 50/60Hz, as otherwise stated. Camtec Power Supplies GmbH - Gewerbestrasse 30 - 76327 Pfinztal - Germany P.12/12 (02/2017-01-3) Phone +49(721)46596-0 - Fax +49(721)46596-77 - www.camtec-gmbh.com...
