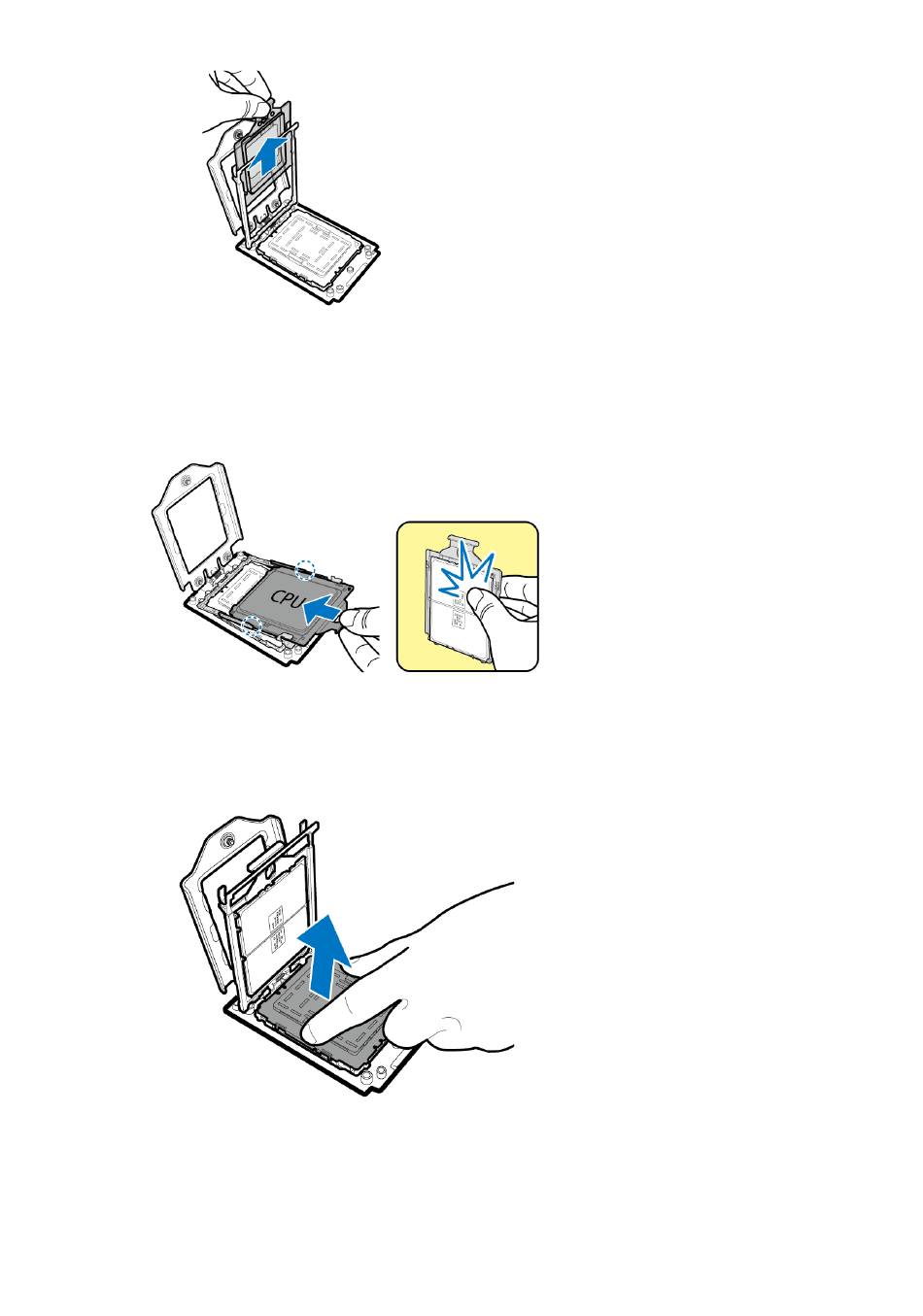

Figure1-5 Removing the processor tray
4. Install the processor tray into the bracket. Holding the processor tray by the handle, align the
processor tray with the bracket and then insert the processor tray into the bracket as shown in
Figure1-6.
Figure1-6 Installing the processor tray
5. Remove the protective cover. Use your thumb and forefinger to lift the cover straight up, as
shown in Figure1-7.
Figure1-7 Removing the protective cover
6. Close the bracket. Slowly close the bracket and then press both corners of the open edge of
the bracket to lock the bracket.
