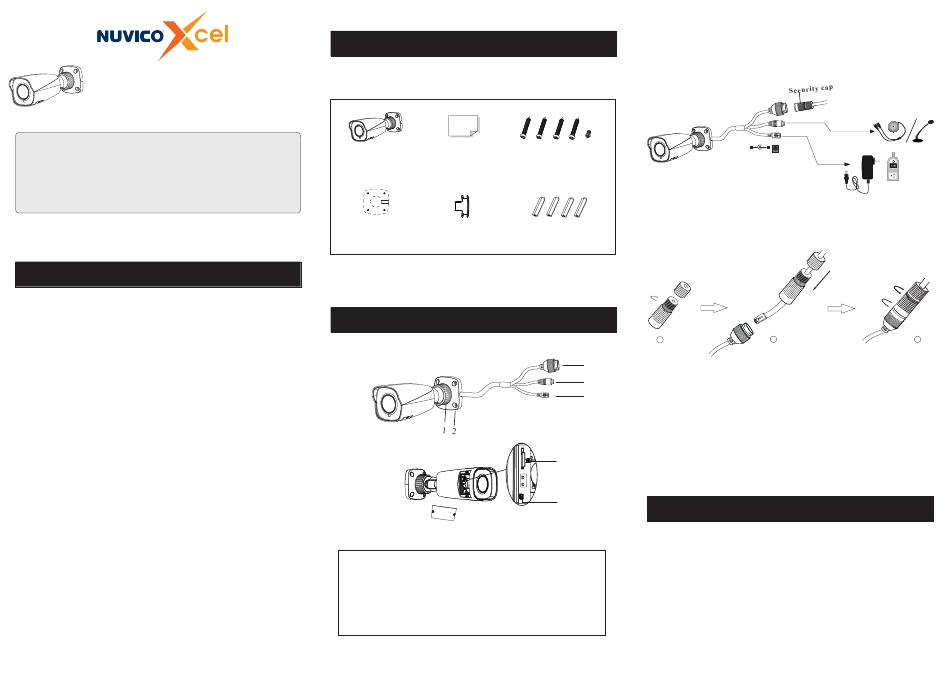

Nuvico Xcel NCT-8ML2-B2 Quick Start Manual

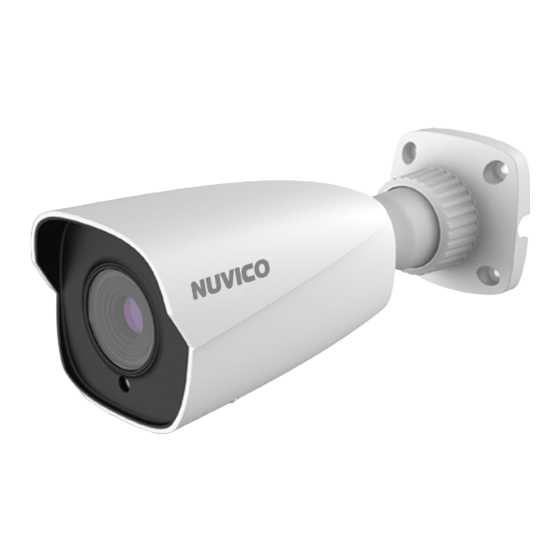

NCT-8ML2-B2 Bullet Camera
Quick Start Guide
■ Please read these instructions carefully before operating the unit
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
■ Visit nuvico.com for additional downloads, manuals, and resources.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer or
the nearest service center. Never attempt to disassemble the camera
yourself. (We shall not be responsible for any problems caused by
unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be in strict compliance with the
electrical safety regulations of the nation and region. When the product is
mounted on wall or ceiling, the device shall be firmly fixed.
■ Do not u se camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Do not directly touch the camera when installing.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Avoid pointing the camera towards the sun or other light sources.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -22˚F~140˚F), dusty or damp locations, and do not
expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating
environment.
2
Package
4 tapping screws PA 4×25
Camera Quick start guide
1 machine screw PWM3×5
Drill template Rubber plug
3
Overview
1 Fixed Ring
5 Power connector*
2 Mounting Base
6 Micro SD card slot
3 Network connector*
7 Reset
4 Audio Input
* It is recommended to install the security cap for outdoor installation.
* If the PoE switch is used to power the camera, DC12V power supply is not
required.
► Connecting Network Cable
× 4
Plastic plug
1
3
4
Loosen the nut from the main element.
①
5
Run the network cable (without the RJ45 connector) through
②
both elements. Then crimp the cable with the RJ45 connector.
③ Connect the cable to the hermetic connector. Then tighten the nut
and the main cover.
6
7
4
Installation
Before you start, please make sure that the wall or ceiling is strong
enough to withstand three times the weight of the camera. Please install
the camera in a dry environment.
①
Drill the screw holes and the cable hole on the wall according to
the drill template.
DC12V
2 3
