NCT-8ML2-E21AF Eyeball Camera
Quick Start Guide
■ Please read these instructions carefully before operating the unit
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
■ Visit nuvico.com for additional downloads, manuals, and resources.
1

Warning and Caution

■ If the product does not work properly, please contact your dealer or
the nearest service center. Never attempt to disassemble the camera
yourself. (We shall not be responsible for any problems caused by
unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be in strict compliance with the
electrical safety regulations of the nation and region. When the product is
mounted on wall or ceiling, the device shall be firmly fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Avoid pointing the camera towards the sun or other light sources.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -22˚F~140˚F), dusty or damp locations, and do not
expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating
environment.
2

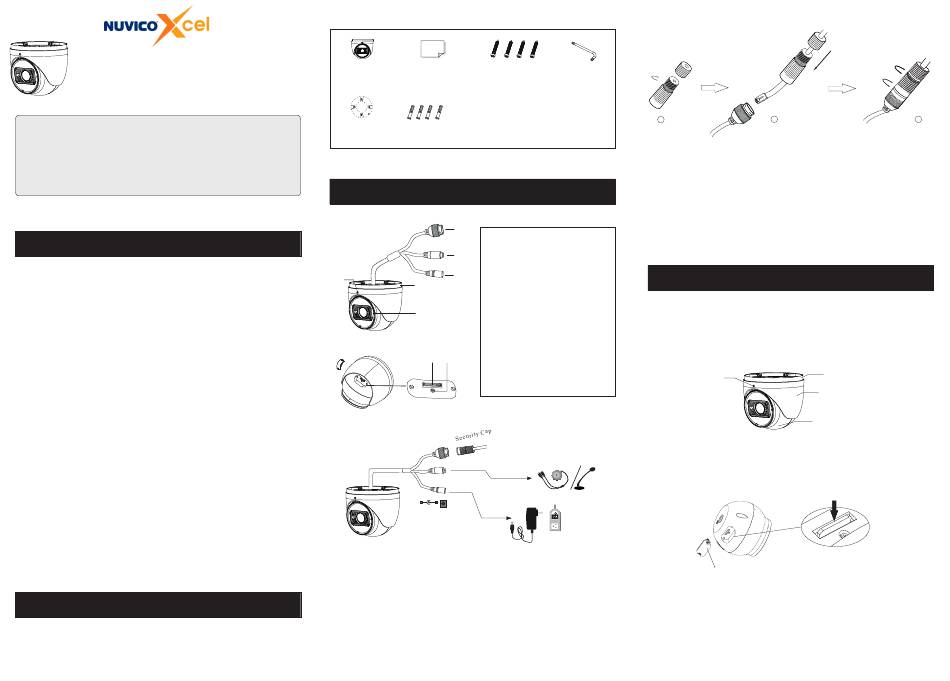

Package

Tapping screw ×4
Camera Quick start guide
×4
Drill template Plastic plug
3

Overview

1
1
2
2
3
5
3
4
4
6
5
6
8
7
7
8
DC12V
* 1 It is recommended to install the security cap for outdoor installation.
* 2 If the PoE switch is used to power the camera, DC12V power supply is not
required.

► Connecting Network Cable

Allen Key
1
Loosen the nut from the main element.
①
Run the network cable (without the RJ45 connector) through
②
both elements. Then crimp the cable with the RJ45 connector.
③ Connect the cable to the hermetic connector. Then tighten the nut
and the main cover.
Ethernet connector
Audio input connector
4

Installation

Power connector
Mounting base
Before you start, please make sure that the wall or ceiling is
Fixed screw
strong enough to withstand three times the weight of the camera.
Microphone
① Loosen the fixed screw to disassemble the camera.
Micro SD card slot
Fixed Screw
Reset
②
Open the cover of the dome and then insert a micro SD card. After
that, install the cover back.
Note: *Check whether the waterproof ring on the card slot cover is
installed properly before installing the cover back.
* Please install the cover in the same way you disassemble it, so that
the sealing performance will not be affected.
2
Mounting Base
Enclosure
Dome
Insert a micro SD card
Cover
