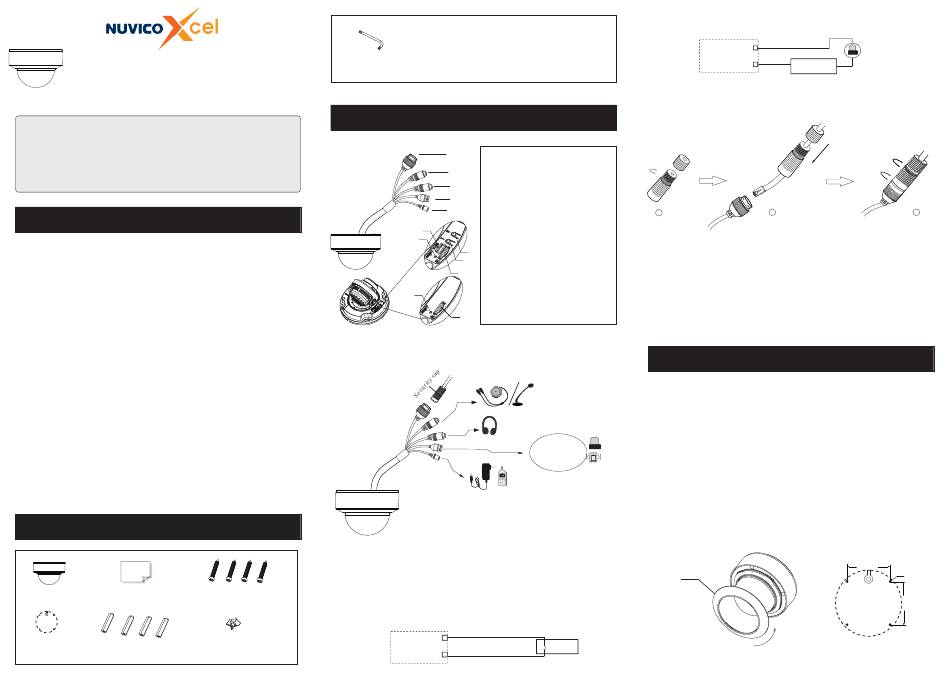

Nuvico Xcel NCT-8ML2-OV21AF Quick Start Manual

NCT-8ML2-OV21AF Vandal Dome Camera
Quick Start Guide
■ Please read these instructions carefully before using the product and keep it
for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
■ Visit nuvico.com for additional downloads, manuals, and resources.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer or the nearest
service center. Never attempt to disassemble the camera yourself. (We shall not be
responsible for any problems caused by unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be in strict compliance with the electrical
safety regulations of the nation and region. When the product is mounted on wall
or ceiling, the device shall be firmly fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Avoid pointing the camera towards the sun or other light sources.
■ Do not place the camera in extremely hot, cold (the operating temperature shall
be -22˚F~140˚F), dusty or damp locations, and do not expose it to high
electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating
environment.
2
Package
Camera Quick start guide
×4
Drill template Plastic plug
Allen Key
3
Overview
* Only some models support T/W button. If your camera doesn't have these two buttons, please
skip 6 and 7.
* If the PoE switch is used to power the camera, DC12V power supply is not required.
* It is recommended to install the security cap for outdoor installation.
► Connecting Alarm Input/Output
4 tapping screws
Alarm Input:
IPC
Rubber plug
1
1 Ethernet Connector
2
2 Audio Input (MIC)
3
3 Audio Output (HP)
4
5
4 Alarm Input/Output
5 DC12V Power Connector*
10
9
6 Zoom-*
(Type A)
6
7 Zoom+ *
7
8
8 Micro SD Card Slot
9 Reset
9
(Type B)
10 CVBS Interface (unavailable)
8
1--ALM-COM
2--ALM-OPEN
3--ALM-INA
4--ALM-GND
DC12V
ALARM-INA
3
Sensor
4
ALARM-GND
Alarm Output:
ALARM-COM 1
IPC
ALARM-OPEN 2
Power
+
► Connecting Network Cable
1 2
Loosen the nut from the main element.
①
Run the network cable (without the RJ45 connector) through
②
both elements. Then crimp the cable with the RJ45 connector.
③ Connect the cable to the hermetic connector. Then tighten the nut
and the main cover.
4
Installation
Before you start, please make sure that the wall or ceiling is strong
enough to withstand three times the weight of the camera. Please install
the camera in a dry environment. Be sure to install the cover or lower
dome back within 4 hours after removing it. Do not remove the protection
film until the installation is completed.
Camera Installation
►
Rotate the trim ring counter-clockwise to remove it from the camera.
①
② Attach the drill template to the place where you want to fix the camera
and then drill 4 screw holes and 1 cable hole (if you want to route the cables
through the ceiling) according to the drill template.
Trim Ring
Figure 1
+
Alarm
-
-
3
3.55 in
∅4 .6 mm
3.55 in
Figure 2
