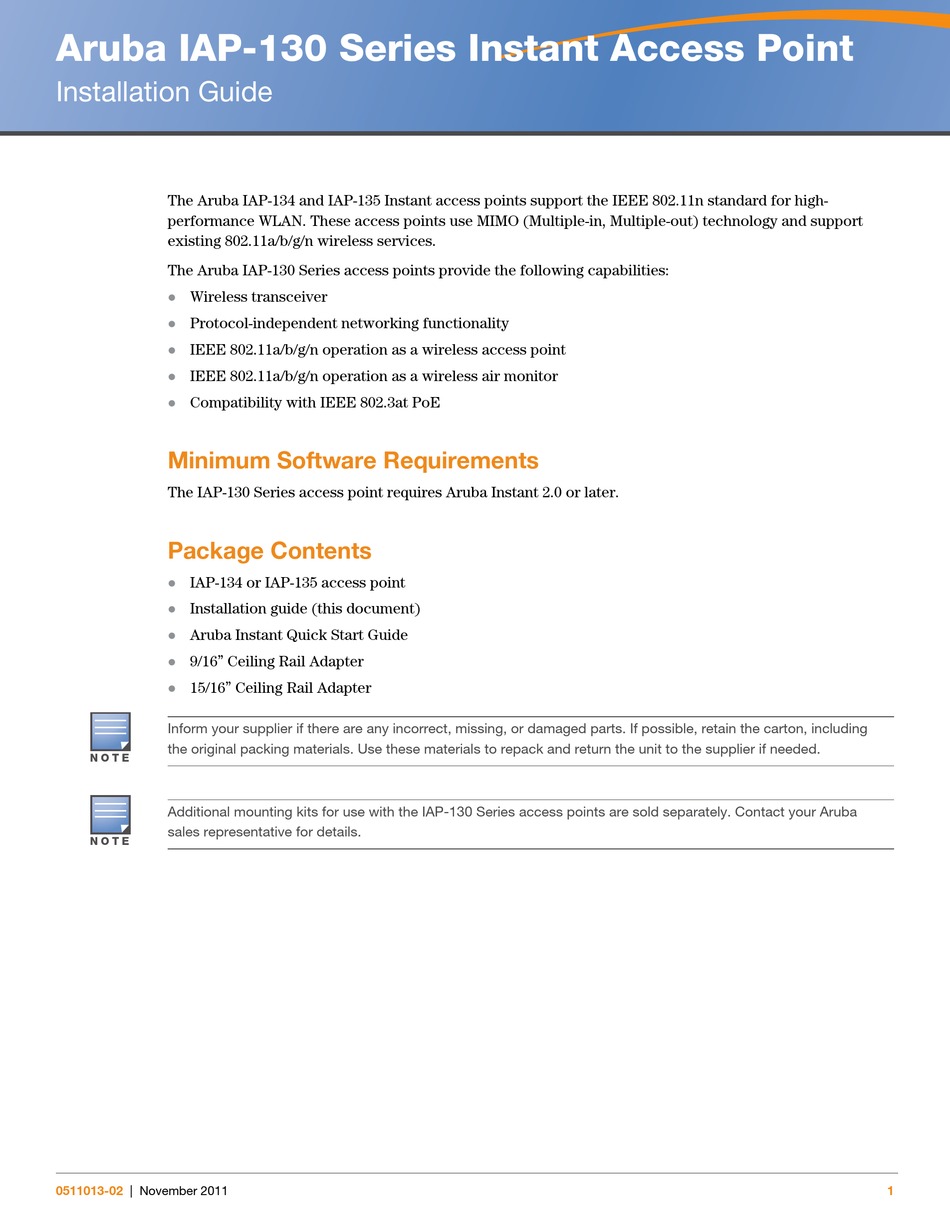

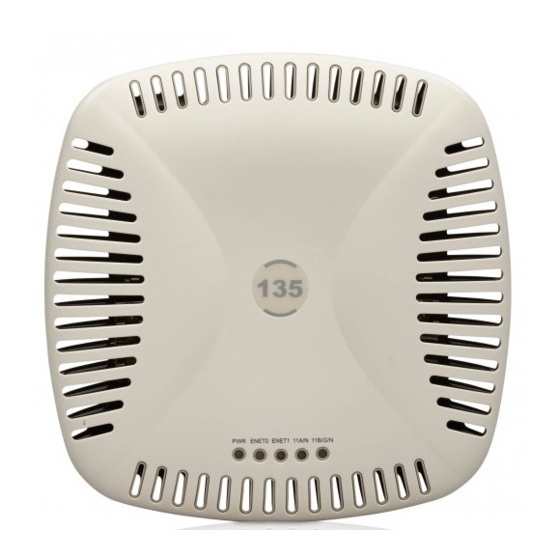

Aruba IAP-130 Series Instant Access Point
Installation Guide
The Aruba IAP-134 and IAP-135 Instant access points support the IEEE 802.11n standard for high-
performance WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology and support
existing 802.11a/b/g/n wireless services.
The Aruba IAP-130 Series access points provide the following capabilities:
Wireless transceiver
Protocol-independent networking functionality
IEEE 802.11a/b/g/n operation as a wireless access point
IEEE 802.11a/b/g/n operation as a wireless air monitor
Compatibility with IEEE 802.3at PoE
Minimum Software Requirements
The IAP-130 Series access point requires Aruba Instant 2.0 or later.
Package Contents
IAP-134 or IAP-135 access point
Installation guide (this document)
Aruba Instant Quick Start Guide
9/16" Ceiling Rail Adapter
15/16" Ceiling Rail Adapter
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
N O T E
Additional mounting kits for use with the IAP-130 Series access points are sold separately. Contact your Aruba
sales representative for details.
N O T E
0511013-02
| November 2011
1
Advertisement
Table of Contents
Related Manuals for Aruba Networks IAP-130 Series
Summary of Contents for Aruba Networks IAP-130 Series
- Page 1 Use these materials to repack and return the unit to the supplier if needed. N O T E Additional mounting kits for use with the IAP-130 Series access points are sold separately. Contact your Aruba sales representative for details.
-
Page 2: Device Overview
LED Status Indicators Antenna Connectors (IAP-134 Only) LEDs The IAP-130 Series access point is equipped with five LEDs that indicate the status of various components of the device. PWR: Indicates the whether or not the IAP-130 is powered on and its status. - Page 3 IAP-130 Series. Reset Button The reset button can be used to return the IAP-130 Series to factory default settings. To reset the IAP-130 Series: 1. Power off the IAP-130 Series by removing the Ethernet cable (POE) or power adapter cable.
-
Page 4: Kensington Lock Slot
4. Release the reset button. The power LED will flash again within 15 seconds indicating that the reset is completed. The IAP-130 Series will now continue to boot with the factory default settings. Kensington Lock Slot The IAP-130 Series is equipped with a Kensington security slot for additional security. -
Page 5: Summary Of The Setup Process
Identifying Specific Installation Locations You can mount the IAP-130 Series access point a ceiling rail (using the included adapter) or on a wall (using the wall mount adapter, sold separately). Use the AP placement map generated by Aruba’s Airwave Virtual RF software application to determine the proper installation location(s). -
Page 6: Installing The Ap
Using the Ceiling Rail Adapter The IAP-130 Series ships with two ceiling rail adapters for 9/16” and 15/16” ceiling rails. Make sure the AP fits securely on the ceiling tile rail when hanging the device from the ceiling, because poor installation could cause it to fall onto people or equipment. -
Page 7: Connecting Required Cables
BI_DC– Bi-directional pair C– Spare pair POE positive BI_DB– Bi-directional pair B– TX– POE positive BI_DD+ Bi-directional pair D+ Spare pair POE negative BI_DB– Bi-directional pair D– Spare pair POE negative Aruba IAP-130 Series Instant Access Point | Installation Guide... -
Page 8: Power Connection
Output Power Connection The IAP-130 Series has a single 12V DC power jack socket to support powering through an AC-to-DC power adapter. If both POE and DC power are available, the AP uses POE even when there is not enough POE voltage available to power the AP. -
Page 9: Verifying Post-Installation Connectivity
Verifying Post-Installation Connectivity The integrated LEDs on the IAP can be used at this point to verify that the AP is receiving power and initializing successfully (see Table Table 3 IAP-130 Series LED Meanings Color/State Meaning No power to AP... -
Page 10: Product Specifications
If a power adapter other than the one provided by Aruba Networks is used in the US or Canada, it should be cULus (NRTL) Listed, with an output rated 12VDC, minimum 1.25A, marked “LPS” or “Class 2,” and suitable for plugging into a standard power receptacle in the US and Canada. -
Page 11: Wireless Lan
(crossed-out wheelie bin). The treatment applied at end of life of these products in these countries shall comply with the applicable national laws of countries implementing Directive 2002/96EC on Waste of Electrical and Electronic Equipment (WEEE). Aruba IAP-130 Series Instant Access Point | Installation Guide... -
Page 12: Safety And Regulatory Compliance
“EFUP 10” label shown at the left. Safety and Regulatory Compliance Aruba Networks provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Aruba access points. This document can be viewed or downloaded from the following location: www.arubanetworks.com/safety_addendum... -
Page 13: Eu Regulatory Conformance
This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC) - CE 2280(!){! In circle}. Aruba Networks Inc., hereby declares that this IAP-134 and IAP-135 device models are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. CE... - Page 14 This page is intentionally left blank Aruba IAP-130 Series Instant Access Point | Installation Guide...
- Page 15 Aruba IAP-130 Series Instant Access Point | Installation Guide...
- Page 16 For More Information To contact Aruba Networks, refer to the information below: Table 4 Contact Information Web Site Support Main Site http://www.arubanetworks.com Support Site https://support.arubanetworks.com Software Licensing Site https://licensing.arubanetworks.com/login.php Wireless Security Incident http://www.arubanetworks.com/support/wsirt.php Response Team (WSIRT) ...
