NI PCIe-8255R Quick Start Guide
What You Need to Get Started
1
To connect an IEEE 1394a camera to the NI 8255R, you will need a 6-pin to 9-pin cable or a 6-pin to 9-pin adapter.

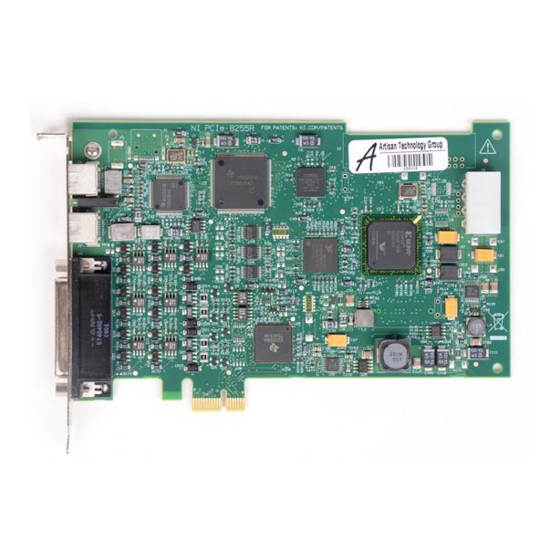

The NI PCIe-8255R is an IEEE 1394a
for PCI Express (PCIe) with reconfigurable I/O (RIO). This document
explains how to install and configure the NI 8255R.
You need the following items to set up and use the NI 8255R:
NI Vision Acquisition Software 8.2 or later
NI Vision Acquisition Software Release Notes
Computer running Windows 2000/XP with at least one PCIe slot
IEEE 1394 camera
9-pin IEEE 1394 cable for interfacing to IEEE 1394b cameras
6-pin to 9-pin cable or 6-pin to 9-pin adapter for interfacing to
IEEE 1394a cameras
External power supply to support powering isolated outputs
Optional software packages and documentation:
NI Vision Development Module
NI Vision Builder for Automated Inspection
LabVIEW
LabVIEW FPGA Module
LabWindows
1
and IEEE 1394b interface device
/CVI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NI PCIe-8255 and is the answer not in the manual?

Questions and answers

Summary of Contents for National Instruments NI PCIe-8255

  • Page 1 NI PCIe-8255R Quick Start Guide The NI PCIe-8255R is an IEEE 1394a and IEEE 1394b interface device for PCI Express (PCIe) with reconfigurable I/O (RIO). This document explains how to install and configure the NI 8255R. What You Need to Get Started You need the following items to set up and use the NI 8255R: ❑...
  • Page 2: Optional Equipment

    Optional Equipment National Instruments offers a variety of products for use with the NI 8255R, including the following: • Digital I/O cable and horizontal DIN rail terminal block (part number 778790-01) • Digital I/O cable and vertical DIN rail terminal block (part number 778791-01) •...
  • Page 3 Do not exceed the maximum ratings for the device. Remove power from signal lines before connection to or disconnection from the device. National Instruments measurement products may be classified as either Caution Measurement Category I or II. Operate products at or below the Measurement Category level specified in the hardware specifications.
  • Page 4 occur in electrical distribution systems. The following is a description of Measurement (Installation ) Categories: • Measurement Category I is for measurements performed on circuits not directly connected to the electrical distribution system referred to as MAINS voltage. This category is for measurements of voltages from specially protected secondary circuits.
  • Page 5: Installation

    Remove the device from the package and inspect it for loose components or any other signs of damage. Notify National Instruments if the device appears damaged in any way. Do not install a damaged device in the computer. Store the NI 8255R in the antistatic package when not in use.
  • Page 6 1 PCI 32-bit Connector 3 PCIe x1 Connector 2 PCI 64-bit and/or PCI-X Connector 4 PCIe x16 Connector Figure 1. PC Expansion Slots Touch a metal part on the computer case to discharge any static electricity on your clothes or body before handling the NI 8255R. Static electricity can damage the device.
  • Page 7 FOR PATENTS: NI.COM/PATENTS 1 IEEE 1394b Bilingual Connector 4 44-Pin D-SUB Connector 2 ISO/ATX Power Status LEDs 5 Camera Power ATX Connector 3 IEEE 1394b Bilingual Connector Figure 2. NI 8255R Connectors © National Instruments Corporation NI PCIe-8255R User Manual...
  • Page 8 Wiring Isolated Output Power to the NI 8255R Complete the following steps to connect power for the isolated outputs to the NI 8255R. Do not connect the NI 8255R isolated power to a source less than 5 VDC or Caution greater than 30 VDC.
  • Page 9 Wrap the power supply cable around the ferrite two times, as shown in Figures 4 and 5. 1 Power Supply Output Cable 2 Ferrite Figure 4. Installing a Ferrite Connector on the Power Supply Cable © National Instruments Corporation NI PCIe-8255R User Manual...
  • Page 10: Related Documentation

    After you have installed the NI 8255R and powered on your computer, Windows will recognize the device and assign resources to it. Use Measurement & Automation Explorer (MAX), the National Instruments configuration utility, to configure the IEEE 1394 camera connected to the NI 8255R for acquisition.
  • Page 11: Specifications

    Do not draw more than 100 mA from 30 V isolated outputs. Do not draw more than 50 mA from 5 V isolated outputs. To connect an IEEE 1394a camera to the NI 8255R, you will need a 6-pin to 9-pin cable or a 6-pin to 9-pin adapter. © National Instruments Corporation NI PCIe-8255R User Manual...
  • Page 12: Ttl Outputs

    TTL Outputs Number of channels........10 Output voltage range ......0 V to 5 V Maximum pulse rate .......2 MHz Optically Isolated Inputs and Outputs Isolated (Current Sinking) Inputs Number of channels........13 Input voltage range .........0 V to 30 V Input ON voltage ......3.5 V to 30 V Input OFF voltage......0 V to 2 V Turn-on current........7.1 mA, typical 14 mA, maximum...
  • Page 13: Ieee 1394 Interface

    Pollution Degree ........2 Do not use the NI 8255R for connection to signals within Measurement Caution Categories II, III, or IV. Measurement Category ......I Approved at altitudes up to 2,000 m. © National Instruments Corporation NI PCIe-8255R User Manual...
  • Page 14: Electromagnetic Compatibility

    Waste Electrical and Electronic Equipment (WEEE) EU Customers At the end of their life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers and National Instruments WEEE initiatives, visit ni.com/environment/weee.htm NI PCIe-8255R User Manual...
  • Page 15: Where To Go For Support

    Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to everything from ni.com/support troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
  • Page 16 Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.
