Bassett CATANIA BP-CATCSL2AS Assembly Instructions

2 door console

Item# BP-CATCSL2AS

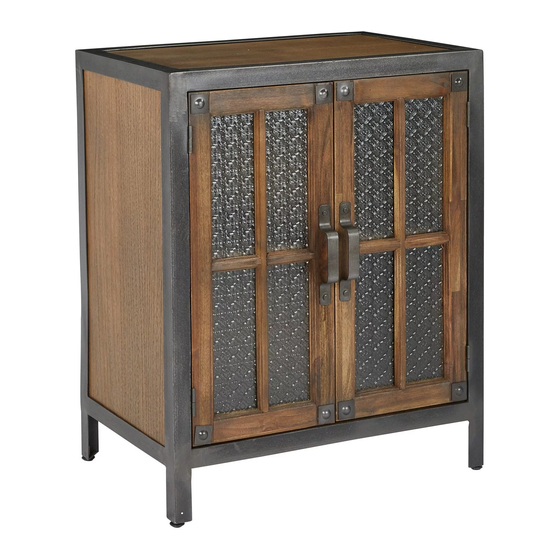

CATANIA 2 DOOR CONSOLE

ASSEMBLY INSTRUCTIONS

IF PARTS ARE MISSING OR DAMAGED, DO NOT RETURN TO STORE

To order missing or replacement parts, contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts

number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.

Table of Contents

Need help?

Do you have a question about the CATANIA BP-CATCSL2AS and is the answer not in the manual?

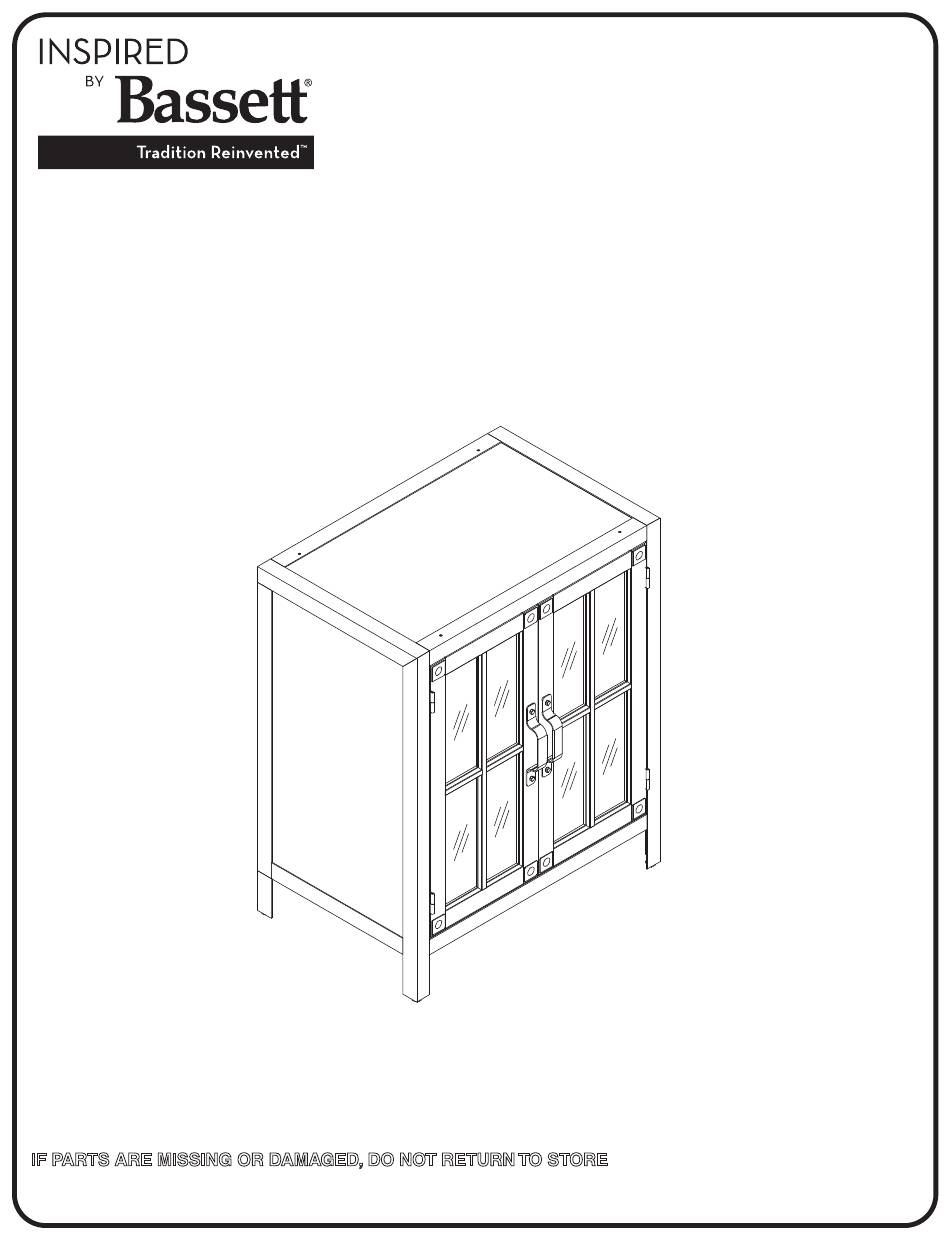

Page 1 Item# BP-CATCSL2AS CATANIA 2 DOOR CONSOLE ASSEMBLY INSTRUCTIONS IF PARTS ARE MISSING OR DAMAGED, DO NOT RETURN TO STORE To order missing or replacement parts, contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.
Page 2 To make a warranty claim, contact Customer Service, provide model number, sales receipt and description of the problem. It is the customer’s responsibility to prepay freight on any components returned to the factory. INSPIRED by Bassett will pay return freight on ®...
Page 3 PARTS LIST (2) Shelf (1 PC) (1) Console (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QTY. n / a 4 PCS Flat Washer n / a 4 PCS Shelf Pin n / a 4 PCS Handle n / a 2 PCS Anti-Tip Kit n / a 1 PC...
Page 4 STEP 1: Insert Shelf Pins (C) into Console (1). Slide Shelf (2) into Console (1). Attach Handles (D) to console doors using two Flat Washers (B) and Nuts (A) for each handle. STEP 2: Place Console (1) in desired location. Attach two brackets to back of Console (1) using two short screws for each bracket. FULLY TIGHTEN SCREWS.
