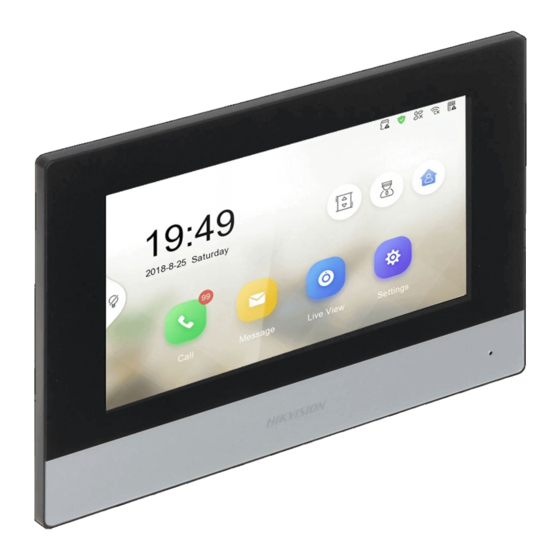

HIKVISION DS-KH6320-TDE1 Series Configuration Manual

Network indoor station
Hide thumbs
Table of Contents

Advertisement

Quick Links

DS-KH6320-TDE1 Series Network Indoor
Station
Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KH6320-TDE1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-KH6320-TDE1 Series

Summary of Contents for HIKVISION DS-KH6320-TDE1 Series

  • Page 1 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Regulatory Information EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive...
  • Page 6 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité...

  • Page 7: Table Of Contents

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Contents Chapter 1 About this Manual ...................... 1 Chapter 2 Local Configuration ..................... 2 2.1 Quick Operation ........................2 2.2 Basic Settings ......................... 7 2.2.1 Set Indoor Station Network Parameters ............... 8 2.2.2 Set Linked Device IP ...................... 9 2.2.3 Set Local Information ....................
  • Page 8 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Chapter 3 Remote Operation via the Client Software ..............28 3.1 Activate Device Remotely ....................28 3.2 Device Management ......................28 3.2.1 Add Video Intercom Devices ..................29 3.2.2 Modify Network Information ..................31 3.3 System Configuration ......................

  • Page 9: Chapter 1 About This Manual

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Chapter 1 About this Manual Get the manual and related software from or the official website (http://www.hikvision.com). Product Model Network Indoor Station DS-KH6320-TDE1...

  • Page 10: Chapter 2 Local Configuration

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Chapter 2 Local Configuration 2.1 Quick Operation After device activation, the wizard page will pop up. The description is for other indoor stations. Steps 1. Choose language and tap Next. Figure 2-1 Language Settings 2.
  • Page 11 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-2 Password Reset Methods 3. Set network parameters and tap Next. - Edit Local IP, Subnet Mask and Gateway parameters manually. - Enable Auto Get IP address, the device will get network parameters automatically.
  • Page 12 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 4. Configure the indoor station parameters. 1) Select Device Type as Indoor Station or Indoor Extension. 2) Set Floor No.. 3) Set Room No.. 4) Configure advanced settings. Set Comminity No., Building No. and Unit No.
  • Page 13 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-5 Time Settings 6. Configure the Hik-Connect service settings. 1) Enable Hik-Connect service. 2) Edit verification code or use the activation password by default. 3) View Hik-Connect Server Status. 4) Scan the first QR Code to download the APP of Hik-Connect. Scan the second QR Code to add your device to the APP.
  • Page 14 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-6 Hik-Connect Service Settings 7. Link related devices and tap Next. If the device and the indoor station are in the same LAN, the device will be displayed in the list. Figure 2-7 Related Device...

  • Page 15: Basic Settings

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Note If the door station is inactive, the system will pop up the dialog to activate the door station. 2) Tap Next. 8. Optional: Enable Indoor Station and link related indoor extension devices. Tap Finish. If the indoor extension and the indoor station are in the same LAN, the device will be displayed in the list.

  • Page 16: Set Indoor Station Network Parameters

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 2.2.1 Set Indoor Station Network Parameters Network connection is mandatory for the use of the indoor station. Set the network parameters after activating the indoor station. Only when the IP address of the indoor station is in the same network segment as other devices, it can work properly in the same system.

  • Page 17: Set Linked Device Ip

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 2.2.2 Set Linked Device IP Linked network parameters refers to the network parameters of devices (like door station, doorphone, main station, center, etc.), to which the indoor station is linked. Linked devices for the indoor station refers to door station, center, main station, and doorphone.

  • Page 18: Set Local Information

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Name You can edit the name of the device. Language Select a language from the drop-down list for the device. Network Enable Auto Get IP Address and the system will assign IP address, subnet mask, and gateway automatically.
  • Page 19 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Steps 1. Tap Settings → → Configuration → to enter the indoor station No. settings page. Note Default admin password is the activation password. Figure 2-12 Set Indoor Station No. 2. Select Indoor Station to set the room information, live view duration, SIP parameters and password.

  • Page 20: Analog Doorphone Settings

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide You can set SIP parameters. For more details, please refer to: SIP Settings Password Settings You can set unlock password and duress code. 3. Select Indoor Extension to set the room information, live view duration, registration password and enable SIP 1.0 according to your needs.

  • Page 21: Add Camera

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-13 Analog Doorphone Note The unlock time is between 1 s to 255 s. 2.2.5 Add Camera Steps 1. Tap Settings → → Configuration , and enter admin (activation) password. 2. Tap to enter the device management page.

  • Page 22: Sip Settings

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 2.2.6 SIP Settings Devices can communicate with each other via SIP protocol. You create set the SIP register password, enable standard SIP and set VOIP account. Steps 1. Tap Settings → → Configuration , and enter admin (activation) password.

  • Page 23: Zone And Alarm Settings

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-15 VOIP Account Settings Note Up to 32 characters are allowed in the user name. 2.2.7 Zone and Alarm Settings Zone Settings You can set the zone type, alarm type and delay time and other parameters of 2 zones.
  • Page 24 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-16 Zone Settings 2. Press a zone to pop up the zone editing dialogue box. 3. Set the zone type, alarm type, status of arming status, entering delay, and exiting delay. 4. Tap OK to save the settings.

  • Page 25: Password Settings

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 2. Tap Stay Mode, Away Mode, Sleeping Mode, or Custom to enter the page. 3. Arm the selected zone. Note Zones are configurable on the arming mode page. ● Smoke detector zone and gas detector zone will be triggered even if they are disabled.

  • Page 26: Modify Arm/Disarm Password

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 5) Tap OK. 4. Create a new password and confirm it. 5. Tap OK. Change by Security Question You can change admin password via security questions. Before You Start You need to security questions at the wizard or tap Settings →...

  • Page 27: Modify Sip Password

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Duress Code When you are hijacked and forced to open the door, you can enter the duress code. An alarm will be triggered to notify the management center secretly. Note The duress code and the unlock password cannot be the same.

  • Page 28: Sound Settings

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-17 Time Synchronization 1) Select the Time Zone. 2) Enable Enable NTP. 3) Set the synchronizing interval, enter the IP address/domain of NTP server and port No. Note The default unit of synchronizing interval is minute.
  • Page 29 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-18 Call Settings 2. Set corresponding parameters. Ringtone There are 3 ringtones by default, and you can custom and import at most 4 ringtones via Batch Configuration Tool or iVMS-4200 Client Software.

  • Page 30: Volume Settings

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 2.5.2 Volume Settings Set the microphone volume, prompt sound volume, call volume, and enable touch sound. Steps 1. Tap Settings → → Volume Settings to enter the volume settings page. Figure 2-19 Volume Settings Page 2.

  • Page 31: System Settings

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Note Admin password is required to enter the configuration page. 2. Enable Enable Hik-Connect Service. Figure 2-20 Enable Guarding Vision Service 3. Edit LBS server and Verification Code. Note Verification code is used to add the device to mobile client.
  • Page 32 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 2-21 General Settings Page Password You can manage your arm/disarm password and scene password. For details, see Modify Arm/ Disarm Password Time and Date You can set the displayed time and date format, current time. You can also tap Sync Time and enable NTP to synchronize the device time.

  • Page 33: Maintenance

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Note After enabling Clear Screen function, press and hold the Unlock key to exit the clear screen ● mode. The device without unlock key will exit the clear screen mode automatically when the time is ●...

  • Page 34: Preference

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 2.7.3 Preference You can configure zone settings, scene settings and shortcut settings on the preference page. Tap Settings → to enter the preference page. Figure 2-22 Preference Zone Settings Note Only when enable Alarm in the shortcut settings, can the Zone Settings displayed on the Preference page.

  • Page 35: Device Information

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Enable call elevator, alarm, call management center, leave message or snapshot and the icon will be displayed on the home page. You can set the leave message time and snapshot time if the two functions are enabled.

  • Page 36: Chapter 3 Remote Operation Via The Client Software

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Chapter 3 Remote Operation via the Client Software The Video Intercom module provides remote control and configuration on video intercom products via the iVMS-4200 client software. 3.1 Activate Device Remotely You can only configure and operate the indoor station after creating a password for the device activation.

  • Page 37: Add Video Intercom Devices

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 3.2.1 Add Video Intercom Devices Steps Note You can add at most 512 indoor stations and main stations in total to the client, and add at most ● 16 door stations to the client.
  • Page 38 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-1 Add the Device 4. Optional: Click Online Device, the active online devices in the same local subnet with the client software will be displayed on the Online Device area.

  • Page 39: Modify Network Information

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Note To add online devices to the software, you are required to change the device IP address to the same subnet with your computer first. 1) You can click Refresh Every 60s to refresh the information of the online devices.

  • Page 40: System Configuration

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Note You should enter the admin password of the device in the Password field of the pop-up window to modify the parameters. 3.3 System Configuration You can configure the video intercom parameters accordingly.
  • Page 41 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Device Information Click Device Information to enter device basic information page. You can view basic information (the device type, and serial No.), and version information of the device. Figure 3-2 Device Information General Click General to enter device general parameters settings page.
  • Page 42 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-4 Time Settings Page Select Time Zone, Enable NTP, Enable DST, or SDK Synchronization. Click Save to save the time settings. Time Zone: Select a time zone from the drop-down list menu.
  • Page 43 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-5 System Maintenance Reboot: Click Reboot and the system reboot dialog box pops up. Click Yes to reboot the system. ● Restore Default Settings: Click Restore Default Settings to restore the default parameters. All ●...
  • Page 44 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Note The device supports 19 languages: English, French, Brazilian Portuguese, Spanish, Russian, ○ German, Italian, Polish, Arabic, Turkish, Vietnamese, Ukrainian, Hungarian, Dutch, Romanian, Czech, Bulgarian, Croatian, Serbian. Rebooting the device is required after you change the system language.
  • Page 45 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide RS-485 Click RS485 to enter the RS-485 settings page. You can view and edit the RS-485 parameters of the device. Figure 3-7 RS-485 Settings Note For indoor station and main station, there are 3 choices for the working mode: transparent channel, disable, and custom.

  • Page 46: Video Intercom

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-8 Security 3.4.2 Video Intercom Click Video Intercom on the remote configuration page to enter the video intercom parameters settings: Time Parameters, Password, Zone Configuration, IP Camera Information, Volume Input and Output Configuration, Ring, Arming Information, Calling Linkage, Relay, and SIP No.
  • Page 47 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-9 Time Parameters 2. Configure the calling duration, live view duration, call forwarding time, and the ringtone duration. 3. Click Save. Note Calling duration is the maximum duration of indoor station when it is called without being ●...
  • Page 48 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-10 Permission Password Note For indoor station, you can enter the old password and new password to change the arm/disarm password. Zone Alarm Steps 1. Click Zone Alarm to enter the zone settings page.
  • Page 49 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-11 Zone Alarm 2. Select Area No. 3. Select Zone Type from the drop-down list. 4. Select Alarm Type from the drop-down list. 5. Set the NO/NC status. 6. Set Entering Delay and Exiting Delay.
  • Page 50 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide When the zone type is set to be 24H Alarm, the indoor station will receive alarm message ● when the detector is triggered no matter it is under arming mode or disarming mode.
  • Page 51 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-13 Import Added Device Information Volume Input and Output Steps 1. Click Volume Input/Output to enter the configuring the volume input or output page.
  • Page 52 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-14 Volume Input or Output 2. Slide the slider to adjust the input volume, output volume and speak volume. 3. Click Save to enable the settings. Ring Import Steps 1. Click Ring Import to enter the ring configuration page.
  • Page 53 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Note The ring to be imported should be in the wav format, and the size of the ring cannot be larger ● than 300k. Up to 4 rings can be added. ● Arming Information Click Arming Information to enter the configuring arming informaton page and view the arming information.
  • Page 54 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-17 Extension Settings 2. Click Add.
  • Page 55 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-18 Add SIP Info 3. Select Device Type as Indoor Extension.

  • Page 56: Network

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide 4. Enter the required information. Serial No. Enter the device's serial No.. The serial No. is on the rear panel of the device (A fixed-length number with 9 digits). IP Address Enter the device's IP address.
  • Page 57 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-19 Local Network Configuration 2. Enter the Local IP Address, IP Address Subnet Mask, Gateway, Port No. and HTTP Port No. 3. Click Save to enable the settings. Note The default port No. is 8000.
  • Page 58 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-20 SIP Server Configuration 2. Click Enable. 3. Set the parameters according to your needs. Note Up to 32 characters are allowed in the Register User Name field. ● Registration password should be 1 to 16 characters in length.
  • Page 59 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-21 DNS Settings Configure Mobile Client Connection Configure Hik-Connect server parameters before viewing videos via mobile client. Before You Start Make sure the indoor station connects to the network. Steps 1. Click Hik-Connect to enter the configuring the settings page.

  • Page 60: Person Management

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-22 Group Network Settings Device No. Settings Select the device type from the drop-down list, and set the corresponding information. Note Device type can be set as indoor station or indoor extension.

  • Page 61: Organization Management

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Figure 3-23 Personal Management Application The page is divided into two parts: Organization Management and Person Management. Organization Management You can add, edit, or delete the organization as desired. Person Management After adding the organization, you can add the person to the organization and issue card to persons for further management.

  • Page 62: Person Management

    DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Note Up to 10 levels of organizations can be created. Modify and Delete Organization You can select the added organization and click to modify its name. You can select an organization, and click X button to delete it.
  • Page 63 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Click Take Phone Take the person's photo with the PC camera. Click Remote Collection Take the person's photo with the collection device. 3. Issue the card for the person. 1) Click Credential → Card .
  • Page 64 DS-KH6320-TDE1 Series Network Indoor Station Configuration Guide Steps Note This function is only supported by the device the connection mothod of which is TCP/IP when adding the device. 1. In the organization list on the left, select an organization to import the persons.

  • Page 65: Appendix A. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure A-2 Device Command...
