HIKVISION DS-KH6320-WTE1 Installation & Quick Start Manual

HIKVISION DS-KH6320-WTE1 Installation & Quick Start Manual

Network indoor station
Hide thumbs Also See for DS-KH6320-WTE1:

Advertisement

Quick Links

Network Indoor St��
Installation Guide - I
Quick Start Guide - II

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-KH6320-WTE1 and is the answer not in the manual?

Questions and answers

Summary of Contents for HIKVISION DS-KH6320-WTE1

  • Page 1 Network Indoor St�� Installation Guide - I Quick Start Guide - II...
  • Page 2 Symbol Conv��� The symbols that may be found in this document are defined as follows. Symbol ����� Indicates a hazardous situation which, if not avoided, will or Danger could result in death or serious injury. Indicates a potentially hazardous situation which, if not ���...
  • Page 3 Network Indoor Station Installation Guide Installation Guide - I Contents 1 Appearance ....................1 2 Terminal and Wiring Description ..............3 2.1 Terminal Description ..................3 2.2 Wiring Description .................... 3 3 Installation ....................5 3.1 Wall Mounting Plate ..................5 3.2 Wall Mounting with Junction Box ..............

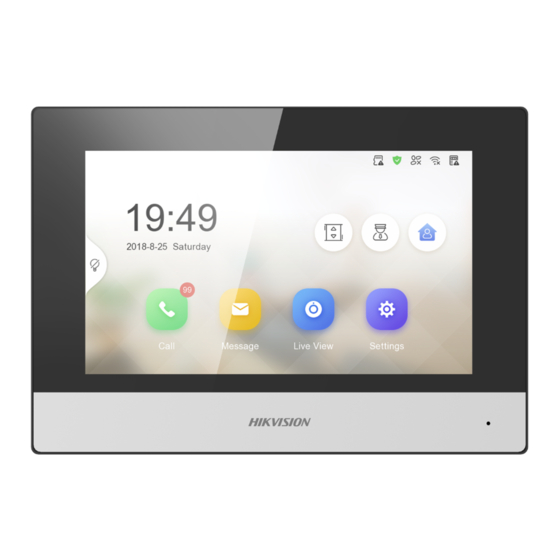

  • Page 4 Network Indoor Station Installation Guide 1 Appearance Front Panel Figure 1-1 Front Panel Table 1-1 ����� ����� Display Screen Microphone...
  • Page 5 Network Indoor Station Installation Guide Rear Panel Figure 1-2 Rear Panel Table 1-2 ����� ����� Debugging Port Network Interface Loudspeaker TF Card Slot Alarm Terminal Reserved Network Interface and Power Supply Note The debugging port is used for debugging only.
  • Page 6 Network Indoor Station Installation Guide 2 Terminal and Wiring ����� 2.1 Terminal ����� There are 20 pins in the terminal on the rear panel of the indoor station: 2 RS-485 pins, 5 reserved pins, 4 relay output pins, 8 alarm input pins, and 1 GND pin. Figure 2-1 Terminal �����...
  • Page 7 Network Indoor Station Installation Guide Figure 2-2 Wiring �����...
  • Page 8 Network Indoor Station Installation Guide 3 Inst���� Indoor station supports wall mounting. 3.1 Wall ���� Plate The wall mounting plate and the junction box are required to install the indoor station onto the wall. The dimension of junction box should be 75 mm (width) × 75 mm (length) × 50 mm (depth).
  • Page 9 Network Indoor Station Installation Guide Before You Start Note Make sure the device in the package is in good condition and all the assembly • parts are included. The power supply the indoor station supports is 12 VDC. Please make sure your •...
  • Page 10 Network Indoor Station Installation Guide A. Cables Table A-1 Wiring Cables R��� Path Twisted Pair : Twisted Pair : Twisted Pair : Parallel Cable : 24AWG 20AWG 18AWG ≥ 24AWG (0.22 (0.2mm²) (0.5mm²) (0.8mm²) mm²) DS-KAD706 - Transmission Transmission Transmission Transmission DS-KAD706-S Distance ≤...
  • Page 11 Network Indoor Station Quick Start Guide Installation Guide - I Contents 1 Getting Started ................... 1 1.1 Activate Indoor Station ..................1 1.2 Quick Operation ....................1...
  • Page 12 Network Indoor Station Quick Start Guide 1 ��� Started 1.1 �� ate Indoor St�� You can only configure and operate the indoor station after creating a password for the device activation. Steps 1. Power on the device. It will enter the activation page automatically. 2.
  • Page 13 Network Indoor Station Quick Start Guide Figure 1-3 Network Parameters 3. Configure the indoor station. 1) Choose Indoor St�� Type. 2) Edit Floor and Room No. 3) Tap Next. Figure 1-4 Indoor St�� ���� 4. Linked related devices and tap Next. If the device and the indoor station are in the same LAN, the device will be displayed in the list.
  • Page 14 Network Indoor Station Quick Start Guide Figure 1-5 Related Device 1) Tap the door station in the list to link. Note If the door station is inactive, the system will pop up the dialog to activate the door station. 2) Tap to pop up the Network Settings page.
