HIKVISION DS-KH6320-LE1 Configuration Manual

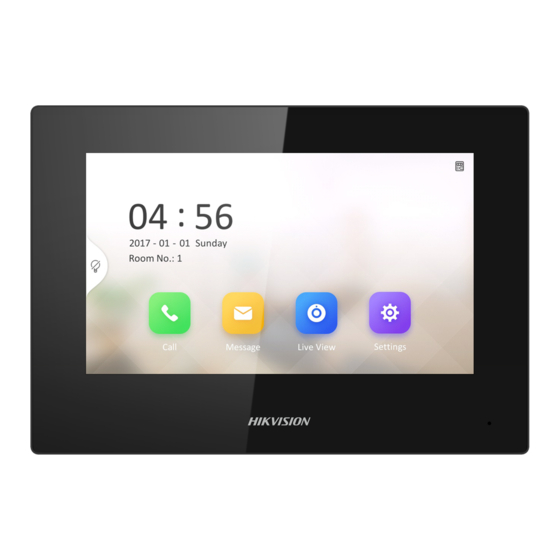

Network indoor station
Hide thumbs Also See for DS-KH6320-LE1:
Table of Contents

Advertisement

Quick Links

Network Indoor Station
Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KH6320-LE1 and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-KH6320-LE1

Summary of Contents for HIKVISION DS-KH6320-LE1

  • Page 1 Network Indoor Station Configuration Guide...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Network Indoor Station Configuration Guide CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY...
  • Page 4 Network Indoor Station Configuration Guide Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or Danger could result in death or serious injury. Indicates a potentially hazardous situation which, if not Caution avoided, could result in equipment damage, data loss,...
  • Page 5 Network Indoor Station Configuration Guide Safety Instruction Warning • The working temperature of the device is from -10 ºC to 55 ºC. • All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region.
  • Page 6 Network Indoor Station Configuration Guide • Please use the provided glove when open up the device cover, avoid direct contact with the device cover, because the acidic sweat of the fingers may erode the surface coating of the device cover. •...
  • Page 7 Network Indoor Station Configuration Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 8 Network Indoor Station Configuration Guide EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/ 65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the...
  • Page 9 Network Indoor Station Configuration Guide l'appareil ne doit pas produire de brouillage, et l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.

  • Page 10: Table Of Contents

    Network Indoor Station Configuration Guide Contents 1 About this Manual ..................1 2 Local Operation ..................2 2.1 Activate Indoor Station ..................2 2.2 Quick Operation ....................2 2.3 Configuration Settings ..................5 2.3.1 Set Indoor Station Network Parameters ........... 5 2.3.2 Set Linked Device IP ..................
  • Page 11 Network Indoor Station Configuration Guide 3.4 Remote Configuration ..................21 3.4.1 System ....................21 3.4.2 Video Intercom ..................26 3.4.3 Network ....................32 3.5 Person Management ..................35 3.5.1 Organization Management ..............35 3.5.2 Person Management ................36 A. Communication Matrix and Device Command ........40...

  • Page 12: About This Manual

    Network Indoor Station Configuration Guide 1 About this Manual Get the manual and related software from or the official website (http:// www.hikvision.com). Product Model DS-KH6320-LE1/DS-KH6320-LSE1/DS- Network Indoor Station KH6220-LE1...

  • Page 13: Local Operation

    Network Indoor Station Configuration Guide 2 Local Operation 2.1 Activate Indoor Station You can only configure and operate the indoor station after creating a password for the device activation. Steps 1. Power on the device. It will enter the activation page automatically. Figure 2-1 Activation Page 2.
  • Page 14 Network Indoor Station Configuration Guide Steps 1. Choose Language and tap Next. 2. Set network parameters and tap Next Edit IP Address, Subnet Mask and Gateway. Enable DHCP, the device will get network parameters automatically. Figure 2-3 Network Parameters 3. Select the device type. Select Indoor Station, and set the floor and room No.
  • Page 15 Network Indoor Station Configuration Guide Figure 2-4 Indoor Station Settings Select Indoor Extension, and set the No. Tap Next, and set the linked indoor station. Note If the indoor extension and the indoor station are in the same LAN, the indoor station will be displayed in the list.

  • Page 16: Configuration Settings

    Network Indoor Station Configuration Guide Figure 2-6 Related Device 1) Set the linked device's parameters. Note If the device is inactive, the system will pop up the dialog to activate the device. 2) Tap to pop up the Network Settings page. 3) Edit the network parameters of the door station manually or enable DHCP to get the network parameters automatically.

  • Page 17: Set Linked Device Ip

    Network Indoor Station Configuration Guide Steps Note The default IP address of the indoor station is 192.0.0.64. Two ways are available for you to set IP address: DHCP, and set IP address manually. 1. Tap Settings → → to enter the network settings page. Note Enter activate password as the admin password.

  • Page 18: Set Indoor Station No

    Network Indoor Station Configuration Guide Steps Note Here take door station network settings as example. 1. Tap Settings → → to enter the device management page. Note Default admin password is the activation password. Figure 2-8 Device Management 2. Tap Main Door Station to pop up the device information dialog. 1) Tap to switch the device type.

  • Page 19: Add Camera

    Network Indoor Station Configuration Guide Note Default admin password is the activation password. Figure 2-9 Set Indoor Station No. 2. Configure the indoor station and indoor extension informations. Select Indoor Station as Indoor Station Type. Edit the Room No. and Floor Select Indoor Extension as Indoor Station Type.
  • Page 20 Network Indoor Station Configuration Guide Zone Settings You can set the zone type, alarm type and delay time and other parameters of 8 zones. Before You Start Tap Settings → → Preference to enable Alarm function. Steps Note Arming status page and zone settings page are hidden by default. You should enable alarm function first.
  • Page 21 Network Indoor Station Configuration Guide Set the alarm type as delay alarm, and you should set the entering delay duration and exiting delay duration. • Both the entering delay duration and the exiting delay duration are from 30s to 60s. •...

  • Page 22: Password Settings

    Network Indoor Station Configuration Guide Note • Zones are configurable on the arming mode page. • 24H alarm zone including smoke detector zone and gas detector zone will be triggered even if they are disabled. • Arming mode settings should be configured with the settings of arming status on the user page of the device.

  • Page 23: Synchronize Time

    Network Indoor Station Configuration Guide Arm or disarm the zone for the indoor station by entering the arm/disarm password. Note Arm/Disarm settings page is hidden by default. Tap Settings → → Preference to enable Alarm function, you can edit the alarm parameters. Duress Code When you are hijacked and forced to open the door, you can enter the duress code.

  • Page 24: Sound Settings

    Network Indoor Station Configuration Guide Figure 2-13 Synchronize Time 3. Enable NTP. 4. Enter Sync Interval, IP Addr/Domain, and Port No. Note The default unit of synchronizing interval is minute. 5. Select Time Zone. 2.6 Sound Settings You can set the ringtone, ring duration, volume of microphone and loudspeaker, enable/disable touch sound, and auto-answer on call settings page.

  • Page 25: Restore Indoor Station

    Network Indoor Station Configuration Guide Figure 2-14 Call Settings 2. Set corresponding parameters. Ringtone There are 3 ringtones by default, and you can custom and import at most 4 ringtones via Batch Configuration Tool or iVMS-4200 Client Software. Ringtone Duration: The maximum duration of indoor station when it is called without being accepted.

  • Page 26: System Settings

    Network Indoor Station Configuration Guide Figure 2-15 Restore Settings 3. Restore the indoor station. You can choose from restore default settings or restore all settings. Tap Restore Default Settings to restore the default settings and reboot the system. Tap Restore All to restore all settings to factory parameters and reboot the system.

  • Page 27: View Open Source Software License

    Network Indoor Station Configuration Guide Language Tap Settings → → System Language to change the system language. Note The indoor station supports 5 languages. Shortcut Icon on Home Page Tap Settings → → Preference to enter the preference page. Enable Call Elevator, Alarm, or Center, and the icon will be displayed on the home page.

  • Page 28: Remote Operation Via The Client Software

    Network Indoor Station Configuration Guide 3 Remote Operation via the client software The Video Intercom module provides remote control and configuration on video intercom products via the iVMS-4200 client software. 3.1 Activate Device Remotely You can only configure and operate the indoor station after creating a password for the device activation.

  • Page 29: Add Video Intercom Devices

    Network Indoor Station Configuration Guide Device management includes device activation, adding device, editing device, and deleting device, and so on. After running the iVMS-4200, video intercom devices should be added to the client software for remote configuration and management. 3.2.1 Add Video Intercom Devices Steps Note •...
  • Page 30 Network Indoor Station Configuration Guide Figure 3-1 Add the Device 4. Optional: Click Online Device, the active online devices in the same local subnet with the client software will be displayed on the Online Device area. Note To add online devices to the software, you are required to change the device IP address to the same subnet with your computer first.

  • Page 31: Modify Network Information

    Network Indoor Station Configuration Guide Edit a name for the device as you want. Address Input the device's IP address. The IP address of the device is obtained automatically in this adding mode. Port Input the device port No. The default value is 8000. User Name Input the device user name.

  • Page 32: System Configuration

    Network Indoor Station Configuration Guide 3.3 System Configuration You can configure the video intercom parameters accordingly. Steps 1. Click Maintenance and Management → System Configuration → Acs and videoIntercom to enter the system configuration page. 2. Enter the required information. Ringtone Click ...
  • Page 33 Network Indoor Station Configuration Guide Device Information Click Device Information to enter device basic information page. You can view basic information (the device type, and serial No.), and version information of the device. Figure 3-2 Device Information General Click General to enter device general parameters settings page. You can view and edit the device name and device ID.
  • Page 34 Network Indoor Station Configuration Guide Figure 3-4 Synchronize Time Select Time Zone or Enable NTP. Click Save to save the time settings. • Time Zone • Select a time zone from the drop-down list menu. • Click Synchronization. • NTP •...
  • Page 35 Network Indoor Station Configuration Guide Figure 3-5 System Maintenance • Click Reboot and the system reboot dialog box pops up. Click Yes to reboot the system. • Click Restore Default Settings to restore the default parameters. • Click Restore All to restore all parameters of device and reset the device to inactive status.
  • Page 36 Network Indoor Station Configuration Guide • Click ... to select the upgrade file and click Upgrade to remote upgrade the device. The process of remote upgrade will be displayed in the process bar. • Select a language, and click Save to change the device system language. Note •...

  • Page 37: Video Intercom

    Network Indoor Station Configuration Guide RS-485 Click RS485 to enter the RS-485 settings page. You can view and edit the RS-485 parameters of the device. Figure 3-7 RS-485 Settings Note For indoor station and master station, there are 3 choices for the working mode: transparent channel, disable, and custom.
  • Page 38 Network Indoor Station Configuration Guide Figure 3-8 ID Configuration 2. Select the device type from the drop-down list, and set the corresponding information. 3. Click Save to enable the device number configuration. Time Parameters Steps 1. Click Time Parameters to enter time parameters settings page. Figure 3-9 Time Parameters 2.
  • Page 39 Network Indoor Station Configuration Guide • Call forwarding time refers to the ring duration limit beyond which the call is automatically forwarded to the mobile phone designated by the resident. The range of call forwarding time varies from 0s to 20s. •...
  • Page 40 Network Indoor Station Configuration Guide 2. Select a zone type from the drop-down list menu. 3. Select an alarm mode from the drop-down list menu. 4. Set the zone status: NO or NC. 5. Set the entering delay, and exiting delay. 6.
  • Page 41 Network Indoor Station Configuration Guide Add Camera Steps 1. Click IP Camera Information to enter IP camera information page. Figure 3-12 IP Camera Information 2. Click Add to pop up the device adding dialog box. 3. Enter corresponding information (device name, IP address, port No., user name, password, etc.), and click OK.
  • Page 42 Network Indoor Station Configuration Guide Figure 3-13 Import Added Device Information Volume Input and Output Steps 1. Click Volume Input/Output to enter the volume input and output page. Figure 3-14 Volume Input and Output 2. Slide the slider to adjust the volume input, volume output and talk volume. 3.

  • Page 43: Network

    Network Indoor Station Configuration Guide Figure 3-15 Deploy Info 3.4.3 Network Local Network Configuration Steps 1. Click Local Network Configuration to enter local network configuration page. Figure 3-16 Local Network Configuration 2. Enter the local IP address, subnet mask, gateway address, and port No. 3.
  • Page 44 Network Indoor Station Configuration Guide LAN. The devices can be linked to the door station and realize the linkage between these devices. Steps 1. Click Linked Network Configuration to enter linked network configuration page. Figure 3-17 Linked Network Configuration 2. Enter the master station IP address, (main) door station IP address, SIP server IP address, management center IP address, and doorphone IP address.
  • Page 45 Network Indoor Station Configuration Guide Device Network Configure In the devices network configuration page, you can configure the network parameters of master stations, SIP servers and management centers of the same LAN. The devices can be linked to the door station and realize the linkage between these devices.

  • Page 46: Person Management

    Network Indoor Station Configuration Guide • After adding management center IP Address, the events can be uploaded to the management center. • For indoor extension, only parameter about the main indoor station should be configured. 3.5 Person Management You can add, edit, and delete the organization and person in Person Management module.

  • Page 47: Person Management

    Network Indoor Station Configuration Guide On the main page of the Client Software, click Person to enter the configuration page. Add Organization Steps 1. In the organization list on the left, click +Add. 2. Input the organization name as desired. 3.
  • Page 48 Network Indoor Station Configuration Guide Add Person Person information is necessary for the video intercom system. And when you set linked device for the person, the intercom between intercom devices can be realized. Steps 1. Select an organization in the organization list and click +Add on the person panel to pop up the adding person dialog.
  • Page 49 Network Indoor Station Configuration Guide 6) Click Add. Import and Export Person Information The person information can be imported and exported in batch. Steps 1. Exporting Person: You can export the added persons' information in Excel format to the local PC. 1) After adding the person, you can click Export Person to pop up the following dialog.
  • Page 50 Network Indoor Station Configuration Guide 4. Click to select the device and then click Get to start getting the person information from the device. Note • The person information, including person details, person's fingerprint information (if configured), and the linked card (if configured), will be imported to the selected organization.

  • Page 51: Communication Matrix And Device Command

    A. Communication Matrix and Device Command Communication Matrix Scan the following QR code to get the device communication matrix. Note that the matrix contains all communication ports of Hikvision access control and video intercom devices. Figure A-1 QR Code of Communication Matrix Device Command Scan the following QR code to get the device common serial port commands.
  • Page 52 UD20151B...
