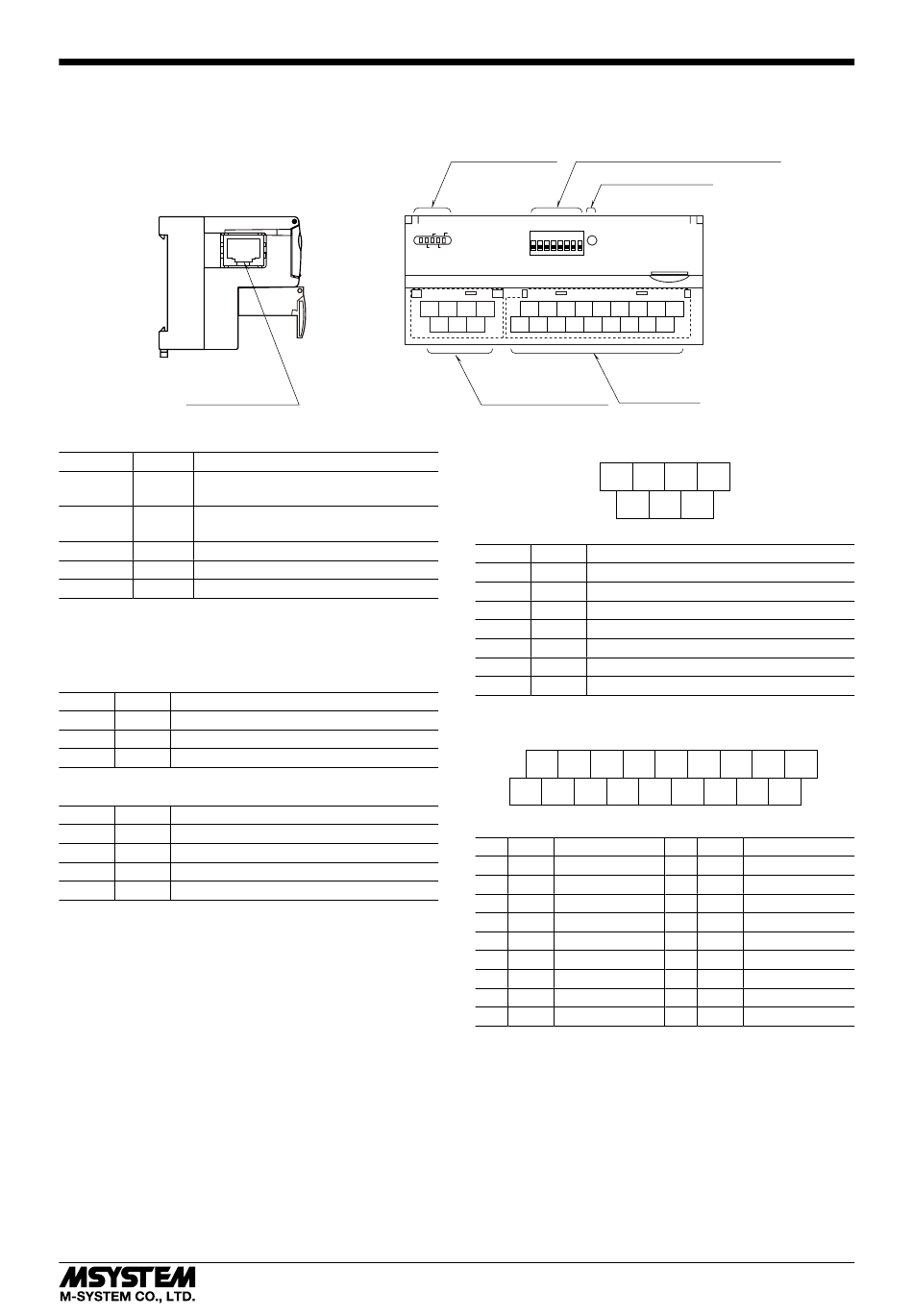

COMPONENT IDENTIFICATION

■ SIDE VIEW
RJ-45 Connector
■ STATUS INDICATOR LED
ID COLOR FUNCTION
PWR Green Turns on when the internal 5V is sup-
plied normally.
RUN Green Turns on in normal communications
conditions.
LINK Green Turns on in LINK status.
LINK100 Green Turns on when connected in 100 Mbps. *
COL Green Blinks in case of collisions.
*1. Used only in 100BASE link. Dark in 10BASE link.
■ OPERATING MODE
(*) Factory setting
• Extension: SW1-1, 1-2
SW1-1 SW1-2 EXTENSION
OFF OFF No extension (*)
ON OFF Discrete input, 8 or 16 points
OFF ON Discrete output, 8 or 16 points
• Conversion Rate / Accuracy: SW1-3, 1-4
SW1-3 SW1-4 CONVERSION RATE / ACCURACY
OFF OFF 80 msec. / ±0.1% (*)
ON OFF 40 msec. / ±0.2%
OFF ON 20 msec. / ±0.4%
ON ON 10 msec. / ±0.8%
Note: Be sure to set unused SW1-5 through 1-8 to OFF.
■ FRONT VIEW
Status Indicator LED
PWR LINK
COL
RUN LINK100
4 5
1 2
1
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
Operating Mode Setting DIP SW (SW1)
PC Configurator Jack
1 2 3 4 5 6 7 8
CNFG.
6 7 10 11 12 13 14 15 16 17 18
3 1 2 3 4 5 6 7
Input Terminals
Power Supply Terminals
■ POWER SUPPLY TERMINAL ASSIGNMENT
4 5
NC
1
NC
NO. ID FUNCTION, NOTES
1 NC ----
2 NC ----
3 FG FG
4 NC ----
5 NC ----
6 +24V Power input (24V DC)
7 0V Power input (0V)
■ INPUT TERMINAL ASSIGNMENT
10 11 12 13
H0 S0 H1 S1
1 2 3 4
NC L0 NC L1
NO. ID FUNCTION
1 NC No connection
2 L0 Pot L0
3 NC No connection
4 L1 Pot L1
5 NC No connection
6 NC No connection
7 L2 Pot L2
8 NC No connection
9 L3 Pot L3
■ EXTENSION MODULE
Combinations with all extension modules are selectable.
R7E-MS4
8 9
6 7
NC +24V 0V
2 3
NC FG
14 15 16 17 18
NC H2 S2 H3 S3
5 6 7 8 9
NC NC L2 NC L3
NO. ID FUNCTION
10 H0 Pot H0
11 S0 Pot S0
12 H1 Pot H1
13 S1 Pot S1
14 NC No connection
15 H2 Pot H2
16 S2 Pot S2
17 H3 Pot H3
18 S3 Pot S3
