Terminal Connections - M-system R7E-MS4 Instruction Manual

PC CONFIGURATOR
The following parameter items can be set with using PC Configurator Software (model: R7CON).
Refer to the users manual for the R7CON for detailed operation of the software program.
■ INTERFACE SETTING
PARAMETER
Communication Timeout
■ ETHERNET SETTING
PARAMETER
IP Address
Subnet Mask
Linger
■ CHANNEL INDIVIDUAL SETTING
PARAMETER
Zero scale
Full scale
Zero base
Ful base
■ EXTENSION MODULE SETTING
PARAMETER
Output Hold/Clear

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

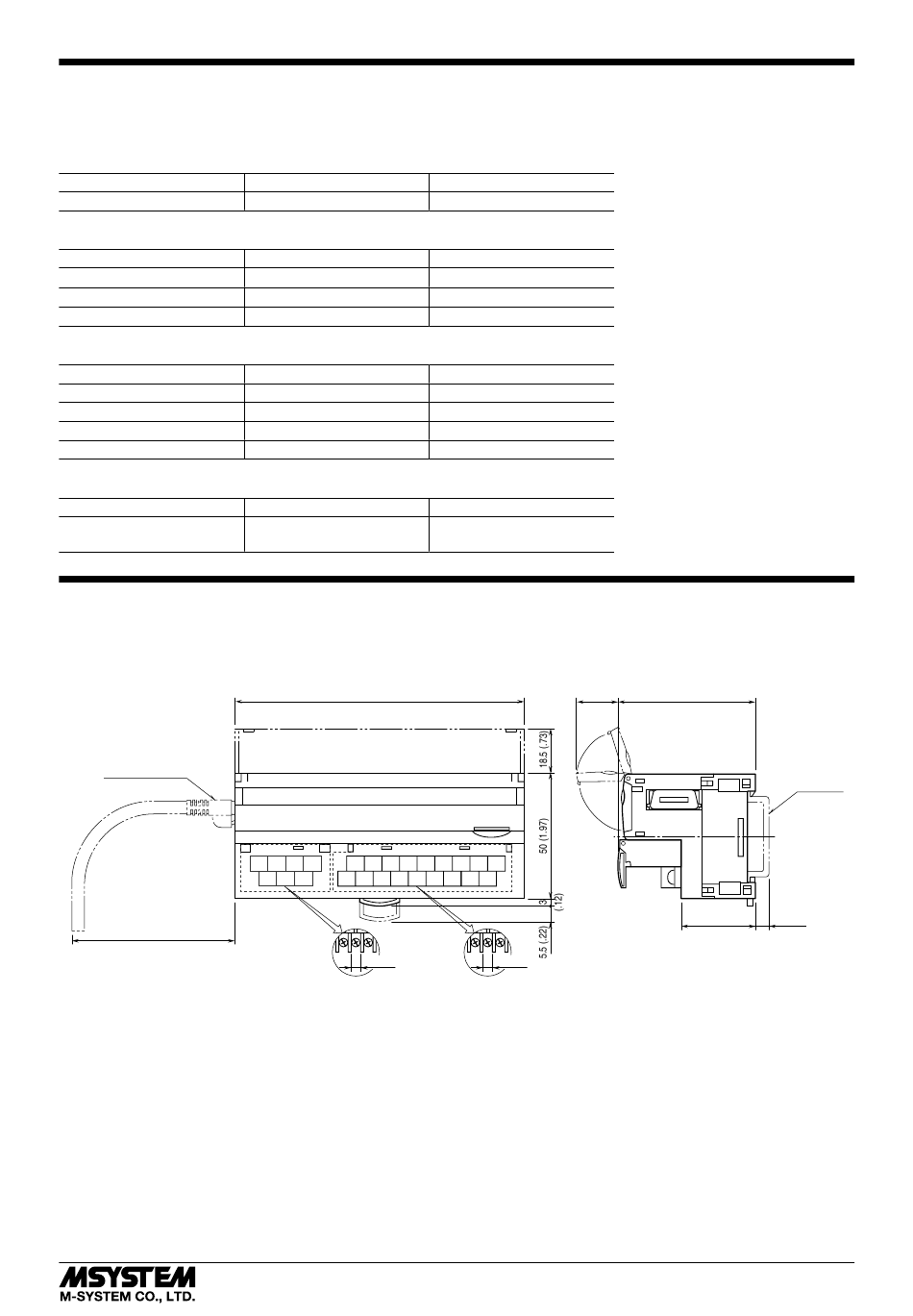

■ EXTERNAL DIMENSIONS unit: mm (inch)
RJ-45 CONNECTOR
65 (2.56)
SETTING RANGE
0.0 – 3276.7 (sec.)
SETTING RANGE
0.0.0.0 – 255.255.255.255
0.0.0.0 – 255.255.255.255
0.0 – 3276.7 (sec.)
SETTING RANGE
-32000 to +32000
-32000 to +32000
0 to 10000
0 to 10000
SETTING RANGE
Output Hold
Output Clear
115 (4.53)
4 5 6 7
10 11 12 13 14
1 2 3
1 2 3 4 5
6 (.24)
7–M3 SCREW
TERMINALS
for POWER
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
DEFAULT SETTING
3.0 (sec.)
DEFAULT SETTING
192.168.0.1
255.255.255.0
180.0 (sec.)
DEFAULT SETTING
0
10000
0
10000
DEFAULT SETTING
Output Hold
17 (.66)
15 16 17 18
6 7 8 9
6 (.24)
18–M3 SCREW
TERMINALS
for INPUT
R7E-MS4
54 (2.13)
DIN RAIL
35mm wide
30 (1.18) [5 (.20)]
EM-7807-Q Rev.5 P. 3 / 6
