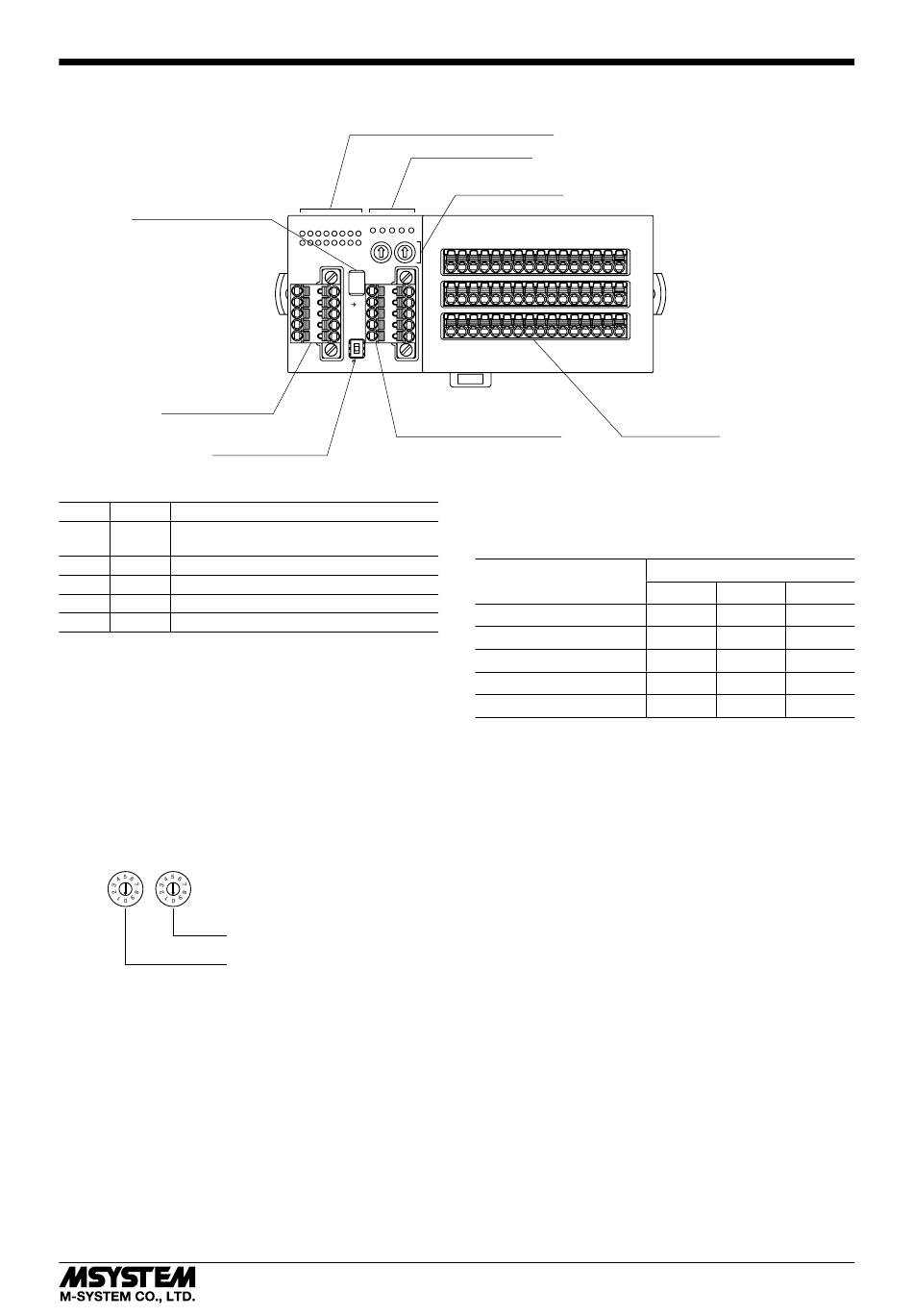

COMPONENT IDENTIFICATION

Operation Mode Setting
DIP SW (SW1)
CC-Link Connector
Terminator DIP SW
■ STATUS INDICATOR LED
ID COLOR FUNCTION
Power Green ON when internal 5V power is in normal
status.
Run Green ON when the communication is normal*
Error Red ON when the received data is abnormal.
SD Green ON when the module is transmitting.
RD Green ON when the module is receiving.
*1. Run LED turns off when no command is received from the
master device.
■ DISCRETE INPUT STATUS INDICATOR LED
Green LED shows the input status.
ON : LED ON
OFF : LED OFF
■ STATION ADDRESS
The left switch determines the tenth place digit, while the
right one does the ones place digit of the station address
(1 - 64).
(Factory setting: 00)
Discrete Input Status Indicator LED
Power Error
X 0 1 2 3 4 5 6 7
Run SD
X 8 9 A B C D E F
×10 SA ×1
SW1
ON
TERM
ON
Power Supply / Exc. Supply
Connector
Station Address Setting (x1)
Station Address Setting (x10)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
Status Indicator LED
Station Address
Setting Rotary SW
RD
■ OPERATING MODE
(*) Factory setting
• Baud Rate (SW1-1, 1-2, 1-3)
Baud Rate is selected with the DIP switch
1
BAUD RATE
156 kbps (*)
625 kbps
2.5 Mbps
5 Mbps
10 Mbps
Note: Be sure to set unused SW1-4 to OFF.
■ TERMINATING RESISTOR
To use the terminating resistor, turn the switch ON, and
OFF to invalidate. (Factory setting OFF)
R7F4DC-DA16A-C
Input Connector
SW1
1 2
OFF OFF
ON OFF
OFF ON
ON ON
OFF OFF
EM-7767-B P. 2 / 7
3
OFF
OFF
OFF
OFF
ON
