M-system R7L-DC16B-R Instruction Manual page 12

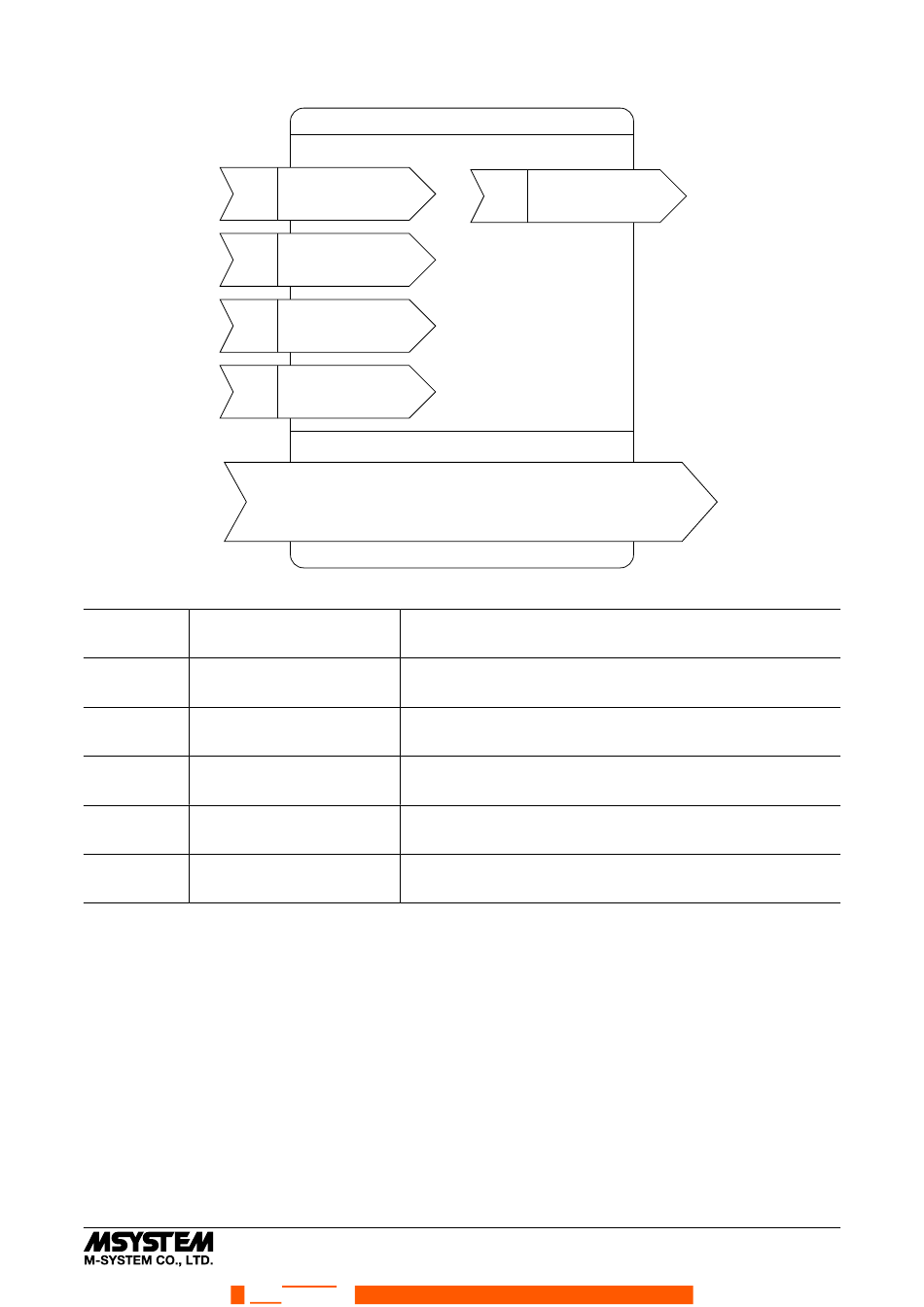

■ FUNCTIONAL BLOCK: fbEN[0...3]
nv 108
...nv 111
nv 112
...nv 115
nv 116
...nv 119
nv 120
...nv 123
• Network Variables
TYPE
NETWORK
{ Range }
VARIABLE
{ Default }
{SNVT_switch}
nviENIn1 {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nviENIn2 {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nviENIn3 {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nviENIn4 {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nvoENOut {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
SEN TRONIC
fbEN[0...3] (Object ID : 41...44)
Network Variables
nviENIn1
SNVT_switch
nviENIn2
SNVT_switch
nviENIn3
SNVT_switch
nviENIn4
SNVT_switch
Configuration Properties
fbEN[ ] :
SCPTvalueDefinition[0...16]
EXPLANATIONS
Encoder input 1
Encoder input 2
Encoder input 3
Encoder input 4
Outputs the SCPTvalueDefinition[ ] value according to the input signal
status
056 222 38 18
AG
nvoENOut
nv 124
...nv 127 SNVT_switch
Set value table at nvoENOut
for nviENIn1...4
mailbox@sentronic.com www.sentronic.com
R7L-DC16B
EM-7804-H Rev.7 P. 12 / 19
