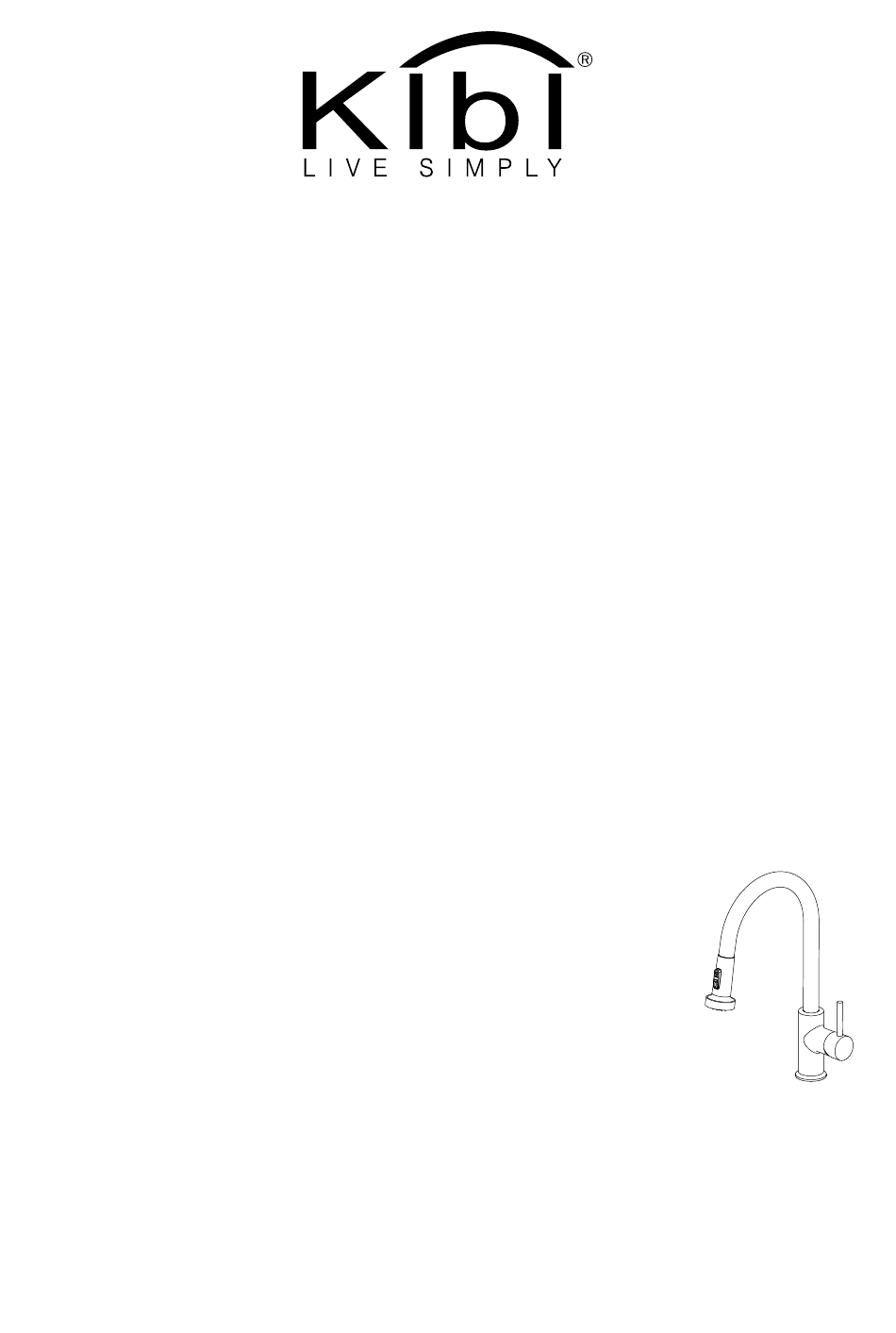

- Page 1 Installation Guide Case KKF2002 www.kibiusa.com...
-
Page 2: Before Installation
Contact KIBI VOLUME-C 855-883-0888 ✉ support@kibiusa.com �� www.kibiusa.com PRIOR TO INSTALLATION 1- For best results, we recommends that this unit be installed by a licensed, professional plumber. - Page 3 Dimensions Critical dimensions show in mm 4-1/2” (114 mm) 9-1/8” Φ1-3/8” (Φ35 mm) (231 mm) Supply line with 3/8" compression...
-
Page 4: Parts List
Parts List Spout Magnet Retainer Sprayer Retainer Hose Assembly 08EN35S0003 Cartridge Sprayer Head Check Valve Bonnet Nut 402001000 Handle Assembly Aerator Internal Hex Screw M5x4 Plug Mounting Part Quick Connect Hose Allen Key 2.5mm Water Line M10_3/8”_27-1/2” Weight Balance Check Valve... -
Page 5: Faucet Installation
Faucet Installation Shut off water suppliers. Remove the old faucet, clean the Remove the mounting hardware from the mounting mounting surface. pipe. Note: For first time install, flush the pipes first by open the angel valve to run 60s. For Single-Hole Sinks: For Three-Hole Sinks: Put the rubber O-ring into the bottom gap of faucet then Place stainless (non-staining) deck plate and deck plate... - Page 6 Faucet Installation Adjust position of faucet body if necessary, Then tighten Connect and tighten the supply hoses by using two the mounting nuts with phillips screwdriver until snug. adjustable wrenches (avoid twisting or kinking). Note: Do not remove the net filter that attached into the connecting end! Click Turn on water suppliers.
-
Page 8: Troubleshooting
Here are the details of our warranty policy: Kibi USA warrants the structure and finish of the faucets and accessories to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the product was first installed.
