Summary of Contents for Top R/C Hobby T1800

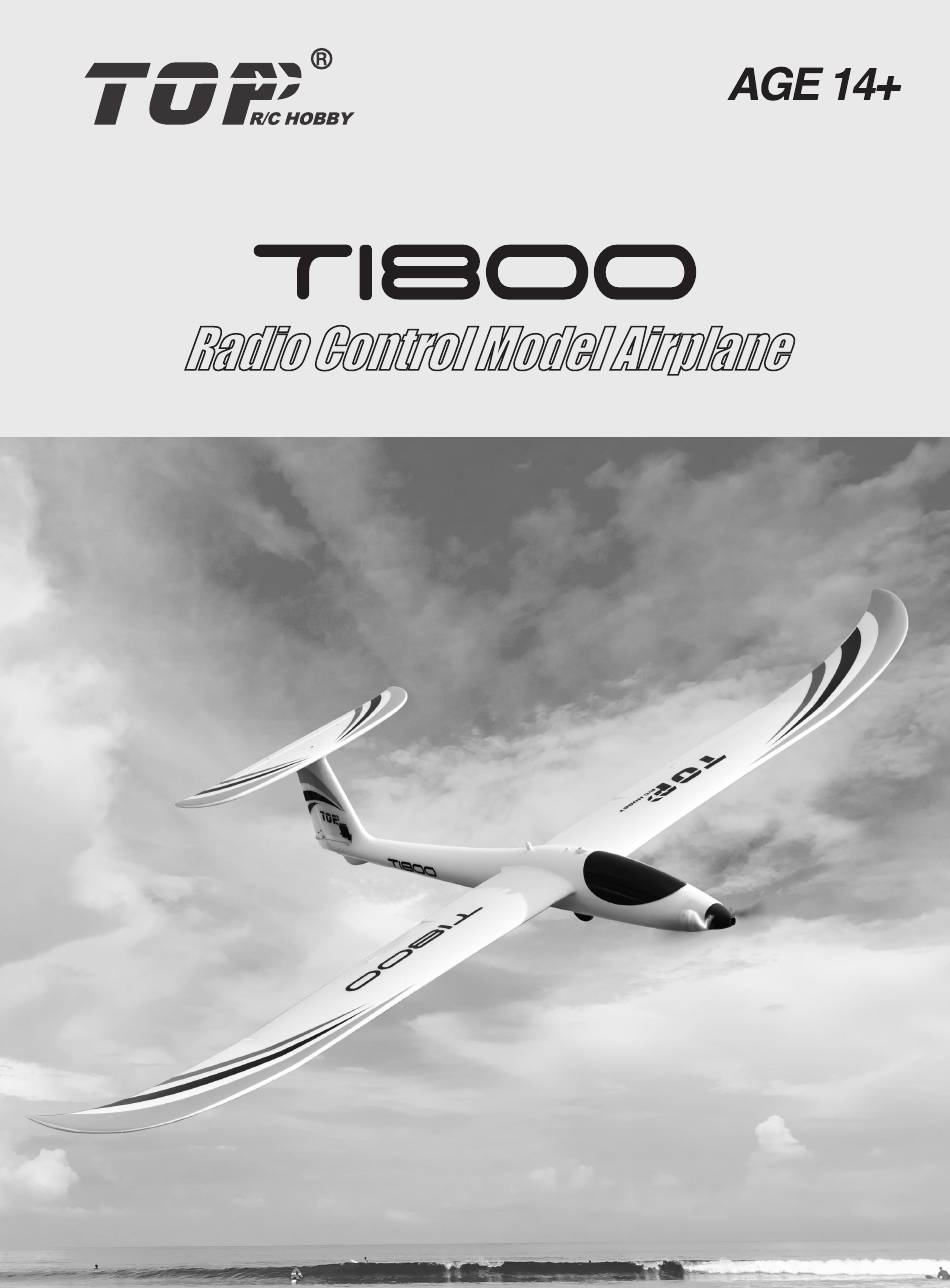

- Page 1 Operation Manual...
-
Page 2: Table Of Contents
CONTENTS Brief introduction....................1 Main specifications....................1 Main configuration....................1 Products constitution....................1 Assemble processes....................2 Adjustment steps....................3 Safety precautions....................4 Charging method and cautions.................4 Caution and Notice for Li-po battery .............5 Caution and notice for ESC ................5 Trouble shooting.....................6 Spare parts.........................7 Statement: 1.Please read this manual carefully and follow the instruction of the manual before you use this products;... -
Page 3: Brief Introduction

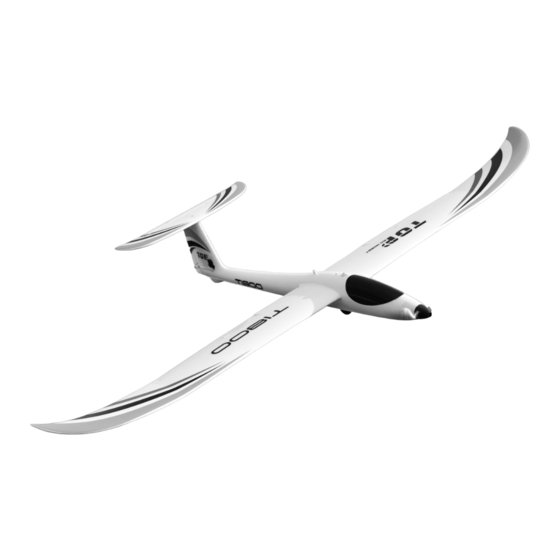

Brief Introduction Thank you for purchasing our T1800 glider from Top ★Adopting a 10-inch folding propeller design, makes RC Hobby , and we hope this plane will bring endless it look very beautiful and enables it flight more joy to you after you choose it. -
Page 4: Assemble Processes
2. Please take out the installed fuselage, wing, wing connecting aluminum tube, and accessories bag, then first connect the servo plug on the wing to the fuselage socket, and then install the wing on the fuselage and secure it with the plug. 3. Finished the assembly of T1800 glider. -
Page 5: Adjustment Steps
Adjustment steps 1. Turn on the transmitter and please make sure that there is enough power for the transmitter. Push the joystick of the throttle and throttle trim switch to the lowest position, and keep other trim switch be in the neutral position. 2. - Page 6 5. Check the position of the center of gravity of the flight to ensure that the position of the center of gravity is within the range shown in the below picture. 65 ~ 72mm 6. Finished the adjustment of T1800.
-
Page 7: Safety Precautions
Safety precautions 1.If you have the simulator, we suggest that you can practise your skill by the simulator before you fly this model, which will bring some help for you. 2.Please climb the plane above the 50 meters with half throttle to fly it when you fly it for your first time, then you will be familiar with the performance of this plane. - Page 8 Notice 1.Be fully charged under no more than 1 A voltage by using the specified charger. 2.Be discharged under 10C voltage but avoiding discharge time too long to harm the battery. 3.Repeat the first and second step one or two times. 4.When the Li-poly battery was stored more than 3 months, it needs to be recharged to maintain its voltage, and ensure its life time.
-
Page 9: Trouble Shooting
Trouble shooting Problem Possible Cause Solution Aircraft will not respond to -ESC is not armed. -Lower throttle stick and throttle trim to the throttlebut responds to -Throttle channel is reversed. lowest settings. other controls. -Reverse throttle channel on transmitter. Extra propeller noise -Damaged spinner, propeller, -Replace damaged parts. - Page 10 (the far end of the wind direction) to prevent the aircraft from being unable to return safely due to insufficient power. 配件部分 Spare part for T1800 No:TOP09101 No:TOP09102...
- Page 11 配件部分 No:TOP09109 No:TOP20401 No:TOP30201 Adapter for propeller 40A Brushless ESC 9g servo(plastic gear) No:TOP40602 No:TOP09103 No:TOP09104 Out runner brushless 1150KV Wing Connecting Rod Wing Screw...
- Page 12 www.toprchobby.com Tel: 0086-(0)755-27908315 Fax: 0086-(0)755-27908325 Made in China...
