Summary of Contents for Top R/C Hobby 3D Sport MX2
- Page 1 SPORT SPORT Operation Manual...
-
Page 2: Table Of Contents
目 录 Brief introduction....................1 Main specifications....................1 Main configuration....................1 Products constitution....................1 Assemble processes....................2 Adjustment steps....................5 Safety precautions....................6 Charging method and cautions.................7 Caution and Notice for Li-po battery .............8 Caution and notice for ESC ................8 Trouble shooting.....................9 Spare parts.........................9 Statement: 1.Please read this manual carefully and follow the instruction of the manual before you use this products;... -
Page 3: Brief Introduction

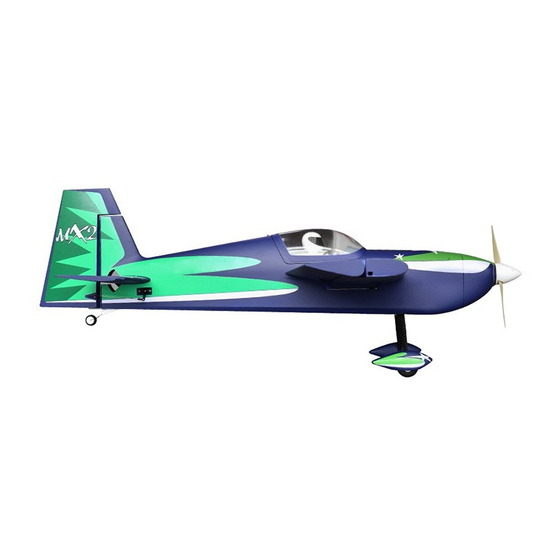

Brief Introduction Thanks for your purchasing our MX2 3D sport aircraft ★ With hollow main wing design, to make sure of the from Top RC Hobby, hope this aircraft will bring the strength of the aircraft, and configured with carbon endless joy to you. -
Page 4: Assemble Processes
Assemble processes 1. Please take out fuselage, horizontal wing. Fix the horizontal wing to the fuselage with EPO glue, and attach the pushrod from the horizontal wing to the outer hole of the servo arm from the elevator surface. 2. Then take out the rudder surface, accessories bag and fix it to the fuselage with nylon lotus. 3. - Page 5 Assemble processes 5. Attach the propeller set to the motor shaft, fix the propeller set to the motor mount, and then lock the spinner with screws. 6. Take out the batter fixing plate and fix it to the fuselage as photo shows with your EPO glue. 7.
-
Page 6: Adjustment Steps
Assemble processes 9. MX2 assembly finished. Adjustment steps 1. Turn on the transmitter and please make sure that there is enough power for the transmitter. Push the joystick of the throttle and throttle trim switch to the lowest position, and keep other trim switch be in the neutral position. 2.Please connect the battery to the ESC plug, and put the battery into the battery case well, than close the battery cover. - Page 7 Adjustment steps 4.Please check the collets to confirm whether it become loose or not, and make sure that the control surface is in accordance with the movement of joystick. 5.Check the center of gravity and make sure that the CG of the plane should be within the range as indicated by the arrows.
-
Page 8: Safety Precautions
Adjustment steps 6. Finished the adjustment for “MX2”. Safety precautions 1.If you have the simulator, we suggest that you can practise your skill by the simulator before you fly this model, which will bring some help for you. 2.Please climb the plane above the 50 meters with half throttle to fly it when you fly it for your first time, then you will be familiar with the performance of this plane. - Page 9 Operating 1. Then plug cigarette into its socket in car (Adapter should be connected if charge at home: connect the adapter to home power socket, then plug the adapter' DC end to charger). The LED will turn green indicating it is ready for charging. 2.Connect the battery to charger per its interface mark.
-
Page 10: Trouble Shooting
Trouble shooting Problem Possible Cause Solution Aircraft will not respond to -ESC is not armed. -Lower throttle stick and throttle trim to the throttlebut responds to -Throttle channel is reversed. lowest settings. other controls. -Reverse throttle channel on transmitter. Extra propeller noise -Damaged spinner, propeller, -Replace damaged parts. - Page 11 Trouble shooting guide Strict ground inspections must be done before each flight, which can effectively avoid flight accidents. 1. Check if the screws of the whole airplane are installed in place or not, the servo arms and horns are connected reliable or not and wings fixing are locked or not.
- Page 12 配件部分 Spare part for MX2 No:TOP09207 No:TOP09208 No:TOP30209 Spinner 13*4 inch Propeller Adapter for propeller No:TOP09210 No:TOP09211 No:TOP09212 50A Brushless ESC Main Landing gear Tail landing gear No:TOP30208 No:TOP049010 9g servo(metal gear) Brushless motor(3720-880KV)
- Page 13 SPORT SPORT www.toprchobby.com Tel: 0086-(0)755-27908315 Fax: 0086-(0)755-27908325 Made in China...
