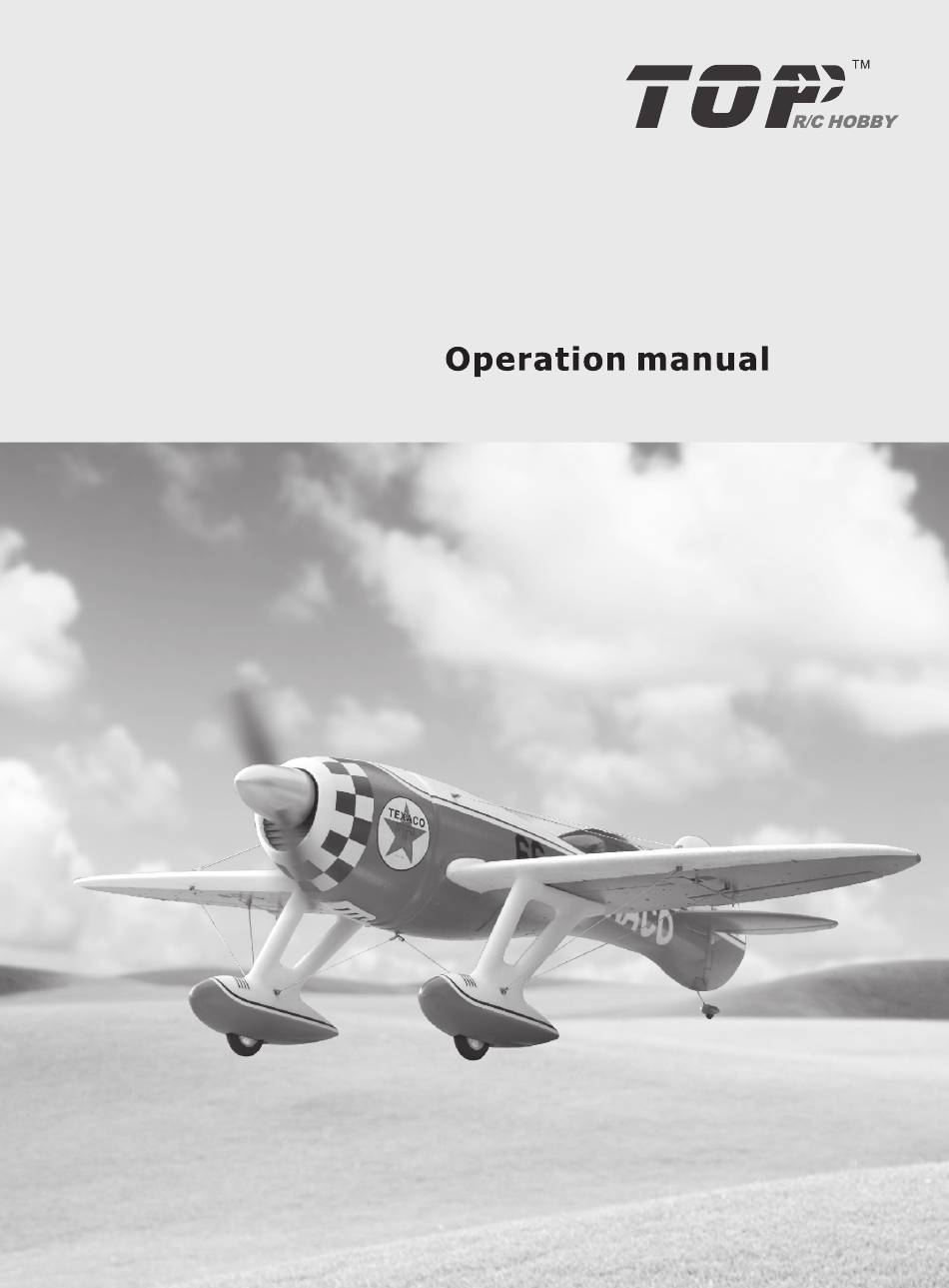

- Page 1 Geebee R3R Geebee R3R Geebee R3R Radio Control Model Airplane Radio Control Model Airplane...
-
Page 2: Table Of Contents
CONTENTS Brief introduction ..................1 Main specifications ..................1 Main configuration ...................1 Products constitution ..................1 Assemble processes ...................2 Adjustment s teps..................5 Saf tey precautions ..................6 Charging method and cautions ..............7 Caution and Notice for Li-po batter y .............7 Caution and notice for ESC ..............8 Spare par ts ....................9... -
Page 3: Brief Introduction
★ Our GeeBee R3R used EPO foam material with high crash-resistance advantage; ★ With the main wings and main landing gear bracing wire, it made the landing gear very strong;... -
Page 4: Assemble Processes
Assemble processes 1. Install main wings Take of the main wings and EPO foam glue. Please add some EPO foam glue to the right and left wings, then stick the right and left wings together after about 3~5 mins. 2. Assemble the power system Take of the power system&fuselage&... - Page 5 安装步骤 Assemble processes 3. Assemble the horizontal wing &vertical wing Take of the horizontal wing&vertical wing&screwdriver &fixed screw(PA3*22MM) from the box. Please assemble the horizontal wing as per the following pictures. The elevator surface should be faced down,and please make sure that the wooden board should be inserted to the installment slot in the middle of the fuselage ,the hole location of the board should be matched with the backside of the fuselage, then please lock it by the PA3*22MM screw.
- Page 6 Take of the right and left landing gear&bracing steel wire from the box. Please insert the landing gear into the slot of the main wing and use the bracing steel wire to connect the main wings&landing gear &fuselage together. Finish the assembly of GeeBee R3R...
-
Page 7: Adjustment Steps
Adjustment steps 1.Turn on the transmitter , and please make sure that there is enough power for the transmitter.Push the joystick for throttle and throttle trim switch to the lowest position,and other trim switch should be in the neutral position. 2.Please make sure that the battery is full power ,and connect to the ESC plug , then install the battery into the battery case. -
Page 8: Saftey Precautions
Adjustment steps 5.Check the center of gravity and make sure that the CG of the plane should be within the range as indicated by the arrows. 7 5~ 85MM 6.Finished the adjustment for " eebee R3R" Saftey precautions 1.If you have the simulator, we suggest that you can practise your skill by the simulator before you fly this model,which will bring some help for you. -
Page 9: Charging Method And Cautions
Charging method and cautions Li-Po battery(balance changer) specifications Specifications: Input voltage: DC 10V~15V Output voltage:2S-3S Li-Po battery Charging current: 1.0A Indicator state: Green: Charge complete & no battery Red: Charging The batteries are inspected separately. When the voltage reaches 4.20V, the charging process stops. Operating Then plug cigarette into its socket in car (Adapter should be connected if charge at home: connect the adapter to home power... -
Page 10: Caution And Notice For Esc
6. Do not drive a nail into the battery, strike it by hammer or tread it. 7. Do not impact or toss the battery. 8. Do not use the battery with conspicuous damage or deformation. 9. Do not charge a warm battery. Allow it to cool completely before attempting to charge. 10. -
Page 11: Spare Parts
Spare parts top01001 top01002 top01003 Fuselage Main wings Horizontal wings top01005 top01006 No:top01004 Main Landing gear Tail Landing gear Vertical wing set top01007 top01008 top01009 Propeller spinner Cabin Propeller set top01010 top01011 top303 g servo Control steel wire Bracing steel wire top30201 top507 top4021... - Page 12 配件部分 top203 30A Brushless ESC...
- Page 13 Geebee R3R Geebee R3R Geebee R3R Radio Control Model Airplane Radio Control Model Airplane...
