Summary of Contents for Top R/C Hobby F4U Corsair
-
Page 2: Table Of Contents
CONTENTS Brief introduction ..................1 Main specifications ..................1 Main configuration...................1 Products constitution..................1 Assemble processes...................2 Adjustment steps..................4 Safety precautions..................5 Charging method and cautions..............5 Caution and Notice for Li-po batter y .............6 Caution and notice for ESC ..............6 Spare parts......................8 Statement: 1.Please read this manual carefully and follow the instruction of the manual before you use this products;... -
Page 3: Brief Introduction

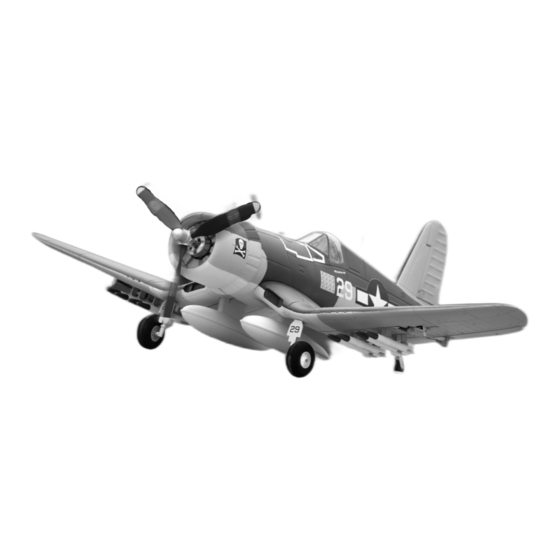

Brief introduction Thank you for purchasing the “ remote control model airplanes from Top RC, and we hope CORSAIR”. this plane will bring endless joy to you after you choose it. ★ It can finish the inverted flight, inside loops, outside loops, axial rolls and other aerobatic actions fluently. Stable flight and easy to control, it also can climb with wide-angel continuously;... -
Page 4: Assemble Processes
Assemble processes 1.Take of the main wings& main landing gear& PWA2*8MM screws from the box. Please assemble the main landing gear into the slot under the main wings,and please do not make it reverse,then lock the main landing gear by PWA2*8MM screw. 2.Take of the fuselage&KM4*35MM screw from the box and assemble the fuselage to the right place on the main wings, please use the screw(KM4*35MM) to lock it. - Page 5 Assemble processes 5.Please make sure that the tail wheel should be in the neutral position, and add some glue to the rudder surface .Make sure the U plug should be inserted into the U slot of the fuselage, then glue the vertical wing&horizontal wing&fuselage together.
-
Page 6: Adjustment Steps
Assemble processes 9. Finish the assembly of the “ F4U CORSAIR” Adjustment steps 1.Turn on the transmitter and please make sure that there is enough power for the transmitter. Push the joystick for the throttle and throttle trim switch to the lowest position, and keep other trim switch be in the neutral position. -
Page 7: Safety Precautions
Adjustment steps 4.Please check the collet to confirm whether it become loose or not, and make sure that the control surface is in accordance with the movement of joystick. 5.Check the center of gravity and make sure that the CG of the 6.Finished the adjustment for F4U “... -
Page 8: Charging Method And Cautions
Charging method and cautions Li-Po battery(balance changer) specifications Specifications: Input voltage: DC 10V~15V Output voltage:2S-3S Li-Po battery Charging current: 1.0A Indicator state: Green: Charge complete & no battery Red: Charging The batteries are inspected separately. When the voltage reaches 4.20V, the charging process stops. Operating Then plug cigarette into its socket in car (Adapter should be connected if charge at home: connect the adapter to home power... - Page 9 6. Do not drive a nail into the battery, strike it by hammer or tread it. 7. Do not impact or toss the battery. 8. Do not use the battery with conspicuous damage or deformation. 9. Do not charge a warm battery. Allow it to cool completely before attempting to charge. 10.
-
Page 10: Spare Parts
Spare parts top01101 top01102 top01104 Fuselage Blue Main wings Blue Horizontal wings Blue top01103 top01114 top01106 Blue Spinner Blue Auxiliary Oil Tank ( Blue Vertical Wings( top01105 top01107 top01113 Blue Landing Gear Blue Propellor Blue Guided missile( top01108 top01109 top01111 Main wings Horizontal wings Fuselage(Yellow) - Page 11 Spare parts top01117 top01118 top01119 Landing Gear Propellor (Yellow) Guided Missile(Yellow) (Yellow) top503 top401 top01112 7.4v,1000mah Lipo Battery Motor(DST-1300) Controlling steel top30204 top30205 top201 （ 9g Servo（Wire:150mm） 9g Servo Wire: 300mm） 12A Brushless ESC...
