Summary of Contents for Top R/C Hobby SkyCruise 2400
-
Page 2: Table Of Contents
CONTENTS B r i e f i n t r o d u c t i o n ............. . 1 Main specifications ................1 Main configuration................1 Products constitution................1... -
Page 3: Brief Introduction

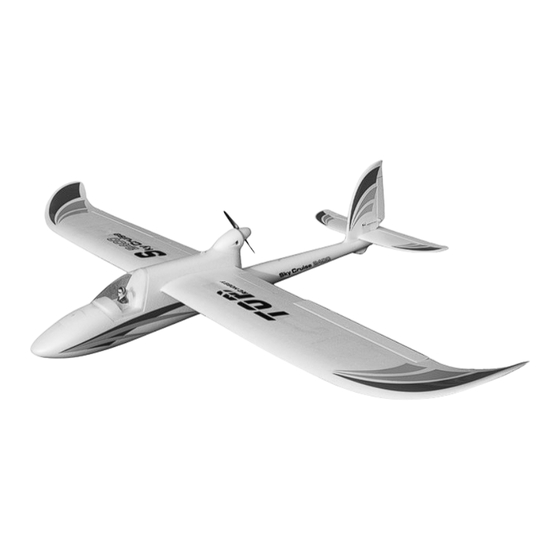

Brief introduction Thank you for purchasing the "Sky Cruise 2400" remote control model airplanes from Top RC, and we hope this plane will bring endless joy to you after you choose it.. 1.Configured with two different power systems: propeller and ducted fan，you will enjoy different flying fun only with one airplane. -
Page 4: Assemble Processes
ARF version Kits without radio PNP version Kits without radio,charger and battery KIT version Without any electronic parts Assemble processes 1.Assembly of Tail wings Take of the horizontal wings & vertical wings from the box. Connect the servo wires correctly according the numbers. Then, please install the horizontal wings &... -
Page 5: Confirmation Of Cg Location
4.Finish the assembly of “Sky Cruise 2400” Confirmation of CG Location Check the center of gravity and make sure that the CG of the plane should be within the range as indicated by the arrows. 85-95mm... -
Page 6: Safety Precautions
Safety precautions 1.If you have the simulator, we suggest that you can practise your skill by the simulator before you fly this model,which will bring some help for you. 2.Please climb the plane above the 50 meters with half throttle to fly it when you fly it for your first time, then you will be familiar with the performance of this plane. -
Page 7: Caution And Notice For Li-Po Batter Y
Safety Instruction of Li-Po/Ni-MH battery 1. Do not disassemble or reconstruct the battery. 2. Do not short-circuit the battery. 3. Do not use or leave the battery nearby the fire, stove or heated place (more than 80℃). 4. Do not immerse the battery in water or sea water, do not get it wet. 5. -
Page 8: Spare Parts
Spare parts top02001 top02002 top02003 Fuselage set Main wings set Horizontal wings set top02004 top02017 top02018 Vertical Wing Propeller power system Ducted fan power system top02005 top02008 top02007 Cabin with pliot Ducted fan assembling set Propeller assembling set top02009 top02006 top02012 8*6inch Propeller Spinner... - Page 9 Spare parts top02015 top02010 top02011 Velcro backing Connecting rod for main wings steel wire set top40502 top508 top40501 Out runner brushless LI-PO 3600mah,11.1V, 20C Out runner brushless D2830B-3850KV C2412-1200KV top30303 top30302 top204 4 0A Brushless ESC 17g servo(60mm) 17g servo(400mm)
